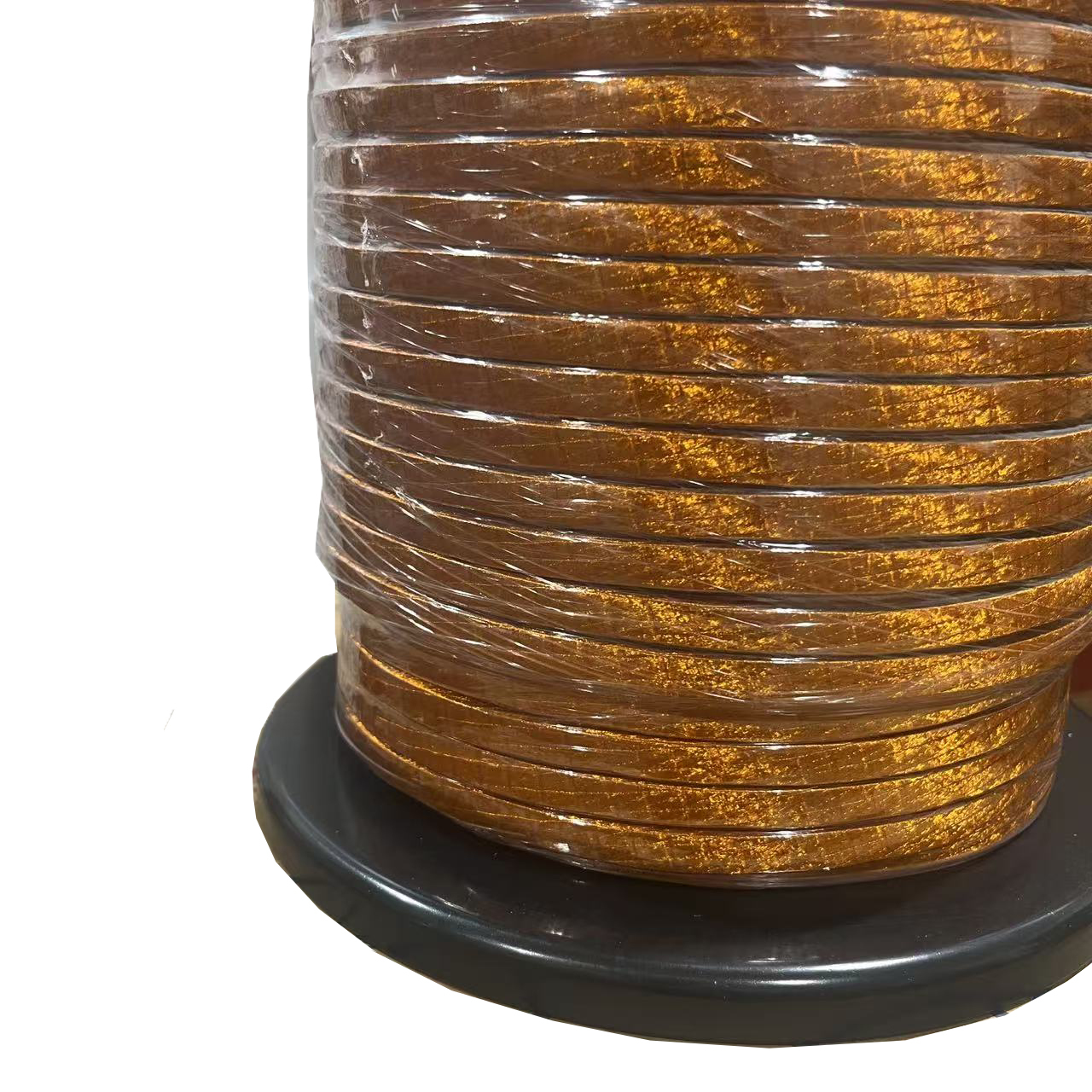

8.7mmx5.5mm Flat Lit z Wire 0.1mm PI Taped High Voltage Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Conductor:	Copper	Strands:	3175
Min.Breakdown Voltage:	3600V	Insulation:	UEW/PI Film
Product Name:	8.7mmx5.5mm Flat Lit Z Wire 0.1mm PI Taped High Voltage Litz Wire	Key Word:	8.7mmx5.5mm Flat Lit Z Wire 0.1mm PI Taped High Voltage Litz Wire
Highlight:	flat litz wire 0.1mm PI taped , high voltage litz wire 8.7mmx5.5mm , PI taped litz wire with warranty

Product Description

8.7mmx5.5mm Flat Lit z Wire 0.1mm PI Taped High Voltage Litz Wire

Product Description

8.7mmx5.5mm Flat Lit z Wire 0.1mm PI Taped High Voltage Litz Wire

We support customization. We understand that every application has unique requirements, so we offer tailor-made solutions to meet your specific needs. Whether you require adjustments to outer diameter, single wire gauge, number of strands, or temperature and voltage resistance, our team is dedicated to manufacturing products to your exact specifications. This level of customization ensures that the product you receive not only meets your expectations, but also exceeds them.

Technical Specifications

Item No	Single wire Diameter mm	Conductor Diameter mm	Width mm	Thickness mm	Resistane Ω/m (20℃)	Dielectri strength v	Pitch (mm)	No.of strands
Tech requirement	0.107-0.125	0.10	8.7	5.5	0.000795	3500	130	3175
±		0.003	0.2	0.2	Max	Min	20
1	0.110-0.114	0.098-0.10	8.57-8.71	5.46-5.70	0.000677	4600	130	12755
