8.7mmx5.5mm Flat Lit z Wire 0.1mm*3175 Strands PI Taped Litz Wire For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Conductor:	Copper	Strands:	3175
Min.Breakdown Voltage:	3600V	Insulation:	UEW/PI Film
Product Name:	8.7mmx5.5mm Flat Lit Z Wire 0.1mm*3175 Strands PI Taped Litz Wire For Transformer	Key Word:	8.7mmx5.5mm Flat Lit Z Wire 0.1mm*3175 Strands PI Taped Litz Wire For Transformer
Highlight:	flat litz wire for transformer , 0.1mm 3175 strands litz wire , PI taped litz wire

Product Description

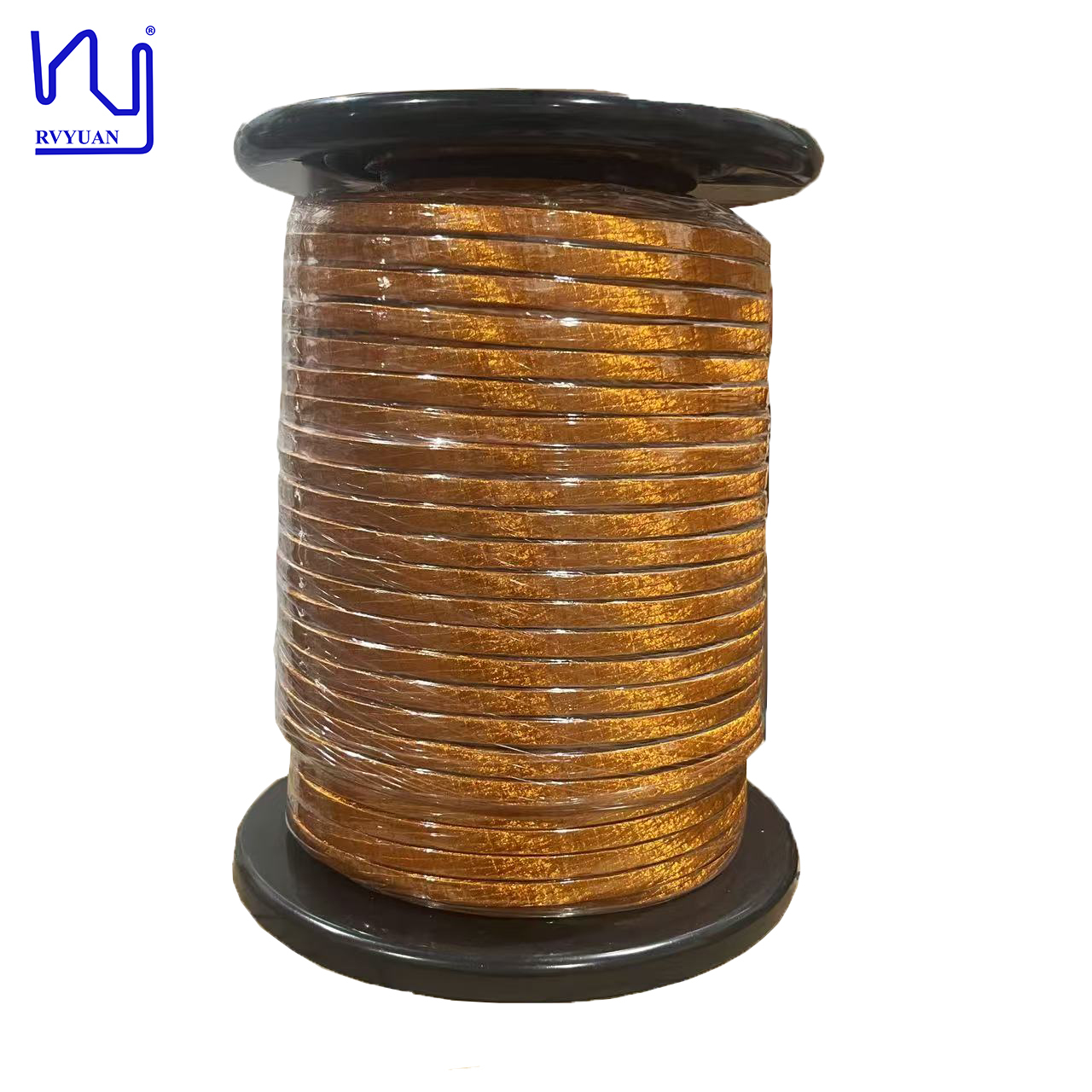

8.7mmx5.5mm Flat Litz Wire 0.1mm*3175 Strands PI Taped Litz Wire For Transformer

This taped flat litz wire features 3175 strands of 0.1mm diameter enameled copper wire, encased in a high-performance polyesterimide film. With a flat width of 8.7 mm and thickness of 5.5 mm, it enables efficient space utilization in compact electrical systems while minimizing losses caused by skin and proximity effects in high-frequency applications.

Key Features

3175 strands of 0.1mm diameter enameled copper wire
Polyesterimide film tape construction
Compact dimensions: 8.7mm width × 5.5mm thickness
Withstand voltage rating of 3500V (measured breakdown up to 4600V)
Optimized for high-frequency applications
Ideal for transformer applications

Technical Specifications

Item No	Single wire Diameter (mm)	Conductor Diameter (mm)	Width (mm)	Thickness (mm)	Resistance Ω/m (20℃)	Dielectric strength (V)	Pitch (mm)	No. of strands
Tech requirement	0.107-0.125	0.10	8.7	5.5	0.000795	3500	130	3175
±		0.003	0.2	0.2	Max	Min	20
1	0.110-0.114	0.098-0.10	8.57-8.71	5.46-5.70	0.000677	4600	130	12755
