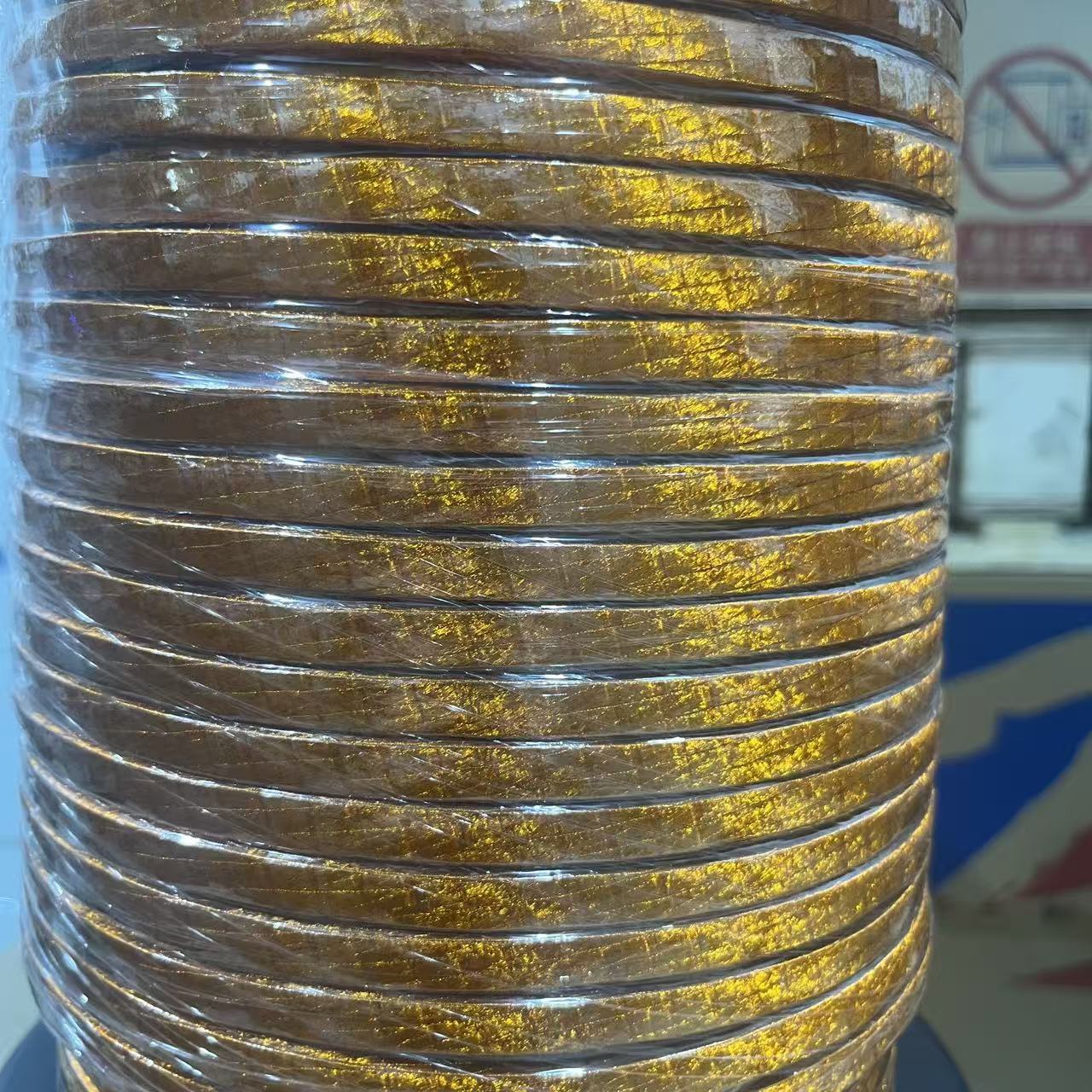

Flat Litz Wire 0.1mmx 3800 Taped Profiled Litz Wire 9.9mmx6.0 For Transformer

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Conductor:	Copper	Strands:	3800
Min.Breakdown Voltage:	3600	Insulation:	UEW/PI Tape
Product Name:	Flat Litz Wire 0.1mmx 3800 Taped Profiled Litz Wire 9.9mmx6.0 For Transformer	Key Word:	Flat Litz Wire 0.1mmx 3800 Taped Profiled Litz Wire 9.9mmx6.0 For Transformer
Highlight:	Flat Litz Wire 0.1mmx3800 , Profiled Litz Wire for transformer , Taped Litz Wire 9.9mmx6.0

Product Description

Flat Litz Wire 0.1mmx 3800 Taped Profiled Litz Wire 9.9mmx6.0 For Transformer

This taped litz wire is characterized by its exceptional high-voltage performance, reaching up to 3600V. This makes it an ideal choice for transformer windings, where high voltages and currents are common. This high-voltage resistance ensures safe and efficient operation under harsh conditions, reduces the risk of electrical failures, and improves the overall reliability of the transformer.

Technical Specifications

Item No	Single wire Diameter mm	Conductor Diameter mm	Width mm	Thickness mm	ResistanceΩ/m (20℃)	Dielectrics Trength v	Pitch (mm)	Tape overlap
Tech requirement	0.107-0.125	0.10	9.9	6.0	0.000664	3500	120	50%
±		0.003	0.3	0.3	Max	Min	20	Min
1	0.110-0.114	0.058-0.06	9.7-10.15	5.87-6.23	0.000588	4400	130	55
