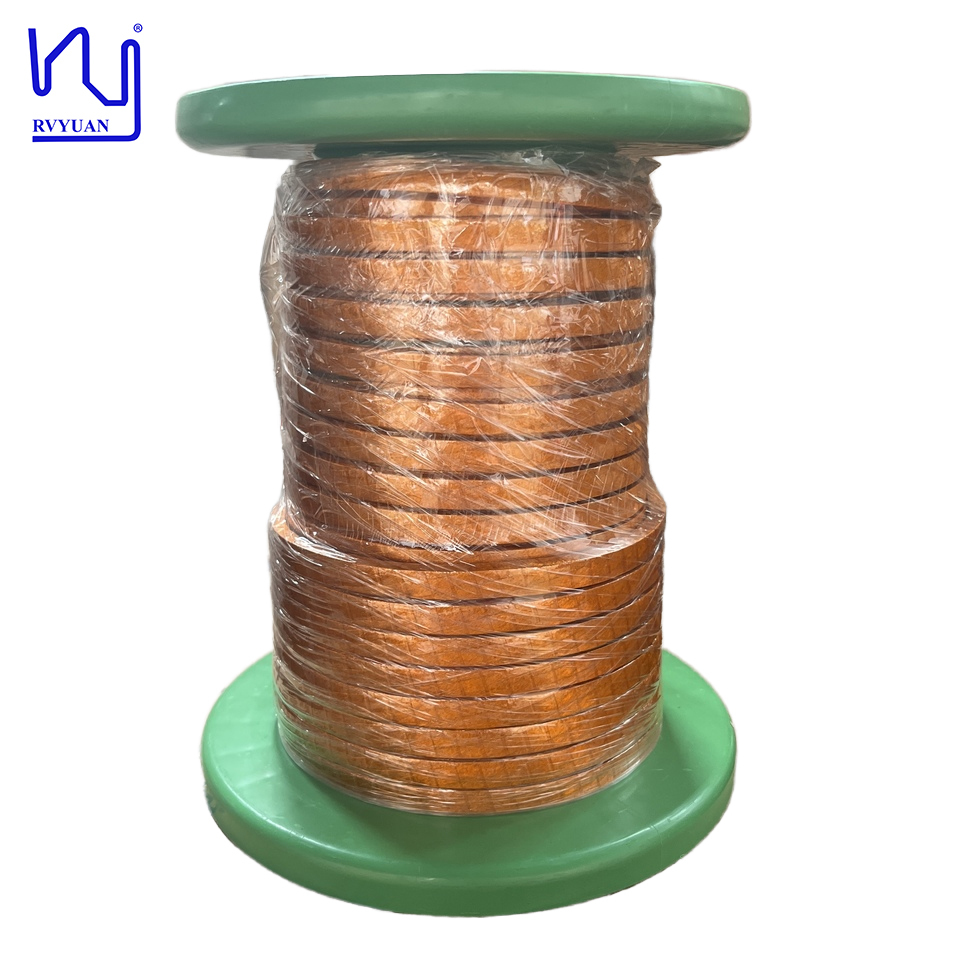

2UEW-F-PI Taped Flat Litz Wire 0.1mmx 3800 Strands Profiled Litz Wire 9.9mmx6.0 Overall dimension

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/ Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155
Conductor:	Copper	Strands:	3800
Min.Breakdown Voltage:	3600V	Insulation:	UEW/PI Film
Product Name:	2UEW-F-PI Taped Flat Litz Wire 0.1mmx 3800 Strands Profiled Litz Wire 9.9mmx6.0 Overall Dimension	Key Word:	2UEW-F-PI Taped Flat Litz Wire 0.1mmx 3800 Strands Profiled Litz Wire 9.9mmx6.0 Overall Dimension
Highlight:	Taped Flat Litz Wire 0.1mm , Profiled Litz Wire 3800 Strands , Litz Wire 9.9mmx6.0 dimension

Product Description

2UEW-F-PI Taped Flat Litz Wire 0.1mmx 3800 Strands Profiled Litz Wire 9.9mmx6.0 Overall dimension

Product Description

This specially customized flat litz wire features a larger outer diameter of 9.9 mm and a thickness of 6.0 mm, designed to optimize conductivity while minimizing losses caused by skin and proximity effects. It consists of 3,800 strands of 0.1 mm enameled copper wire, wrapped with a polyesterimide film and achieving a 50% overlap. This ensures high-voltage resistance and significantly enhances its electrical insulation properties.

Technical Specifications

Item No	Single wire Diameter (mm)	Conductor Diameter (mm)	Width (mm)	Thickness (mm)	Resistance Ω/m (20℃)	Dielectrics Strength (v)	Pitch (mm)	Tape overlap
Tech requirement	0.107-0.125	0.10	9.9	6.0	0.000664	3500	120	50%
±		0.003	0.3	0.3	Max	Min	20	Min
1	0.110-0.114	0.058-0.06	9.7-10.15	5.87-6.23	0.000588	4400	130	55
