Class 220 0.2mmx1.0mm Enameled Flat Magnet Wire for Motor Winding

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	10KG
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	T/T/Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	1.0mm
Unilateral Insulation Layer Thickness (Width):	0.2mm	Applications:	Motor, Transformer
Thermal Grade:	220	Key Word:	Class 220 0.2mmx1.0mm Enameled Flat Magnet Wire For Winding
Thermal Rating:	220	Enamel Coating:	AIW
Highlight:	Class 220 enameled flat magnet wire , 0.2mmx1.0mm motor winding wire , rectangular copper magnet wire

Product Description

Class 220 0.2mm×1.0mm Enameled Flat Magnet Wire For Winding

Product Specifications

Attribute	Value
Shape	Rectangular
Conductor Dimension (Width)	1.0mm
Unilateral Insulation Layer Thickness (Width)	0.2mm
Applications	Motor, transformer
Thermal Grade	220
Thermal Rating	220
Enamel Coating	AIW

Product Description

This Class 220 0.2mm×1.0mm Enameled Flat Magnet Wire is specifically designed for winding applications in motors and transformers, offering superior performance in compact spaces.

Key Advantages

Designed for modern electronic and electrical applications requiring "light, thin, short and small" components
Ideal for automotive applications where space and weight savings are critical
Manufacturing capability for ultra-thin flat wires down to 0.04mm with width-to-thickness ratios up to 25:1

Technical Specifications

Item	Conductor dimension		Insulation thickness		Overall dimension		Dielectric breakdown voltage (kV)	Conductor resistance (Ω/km 20℃)
Item	T (mm)	W (mm)	T (mm)	W (mm)	T (mm)	W (mm)	Dielectric breakdown voltage (kV)	Conductor resistance (Ω/km 20℃)
SPEC AVE	0.200	1.000	0.025	0.0025	/	/
Max	0.209	1.060	0.040	0.004	0.250	1.100		96.380
Min	0.191	0.940	0.010	0.010			0.700
No. 1	0.195	1.00	0.012	0.011	0.218	1.024	1.254	88.470
Avg	0.195	1.003	0.012	0.011	0.218	1.024	1.416
Result	OK

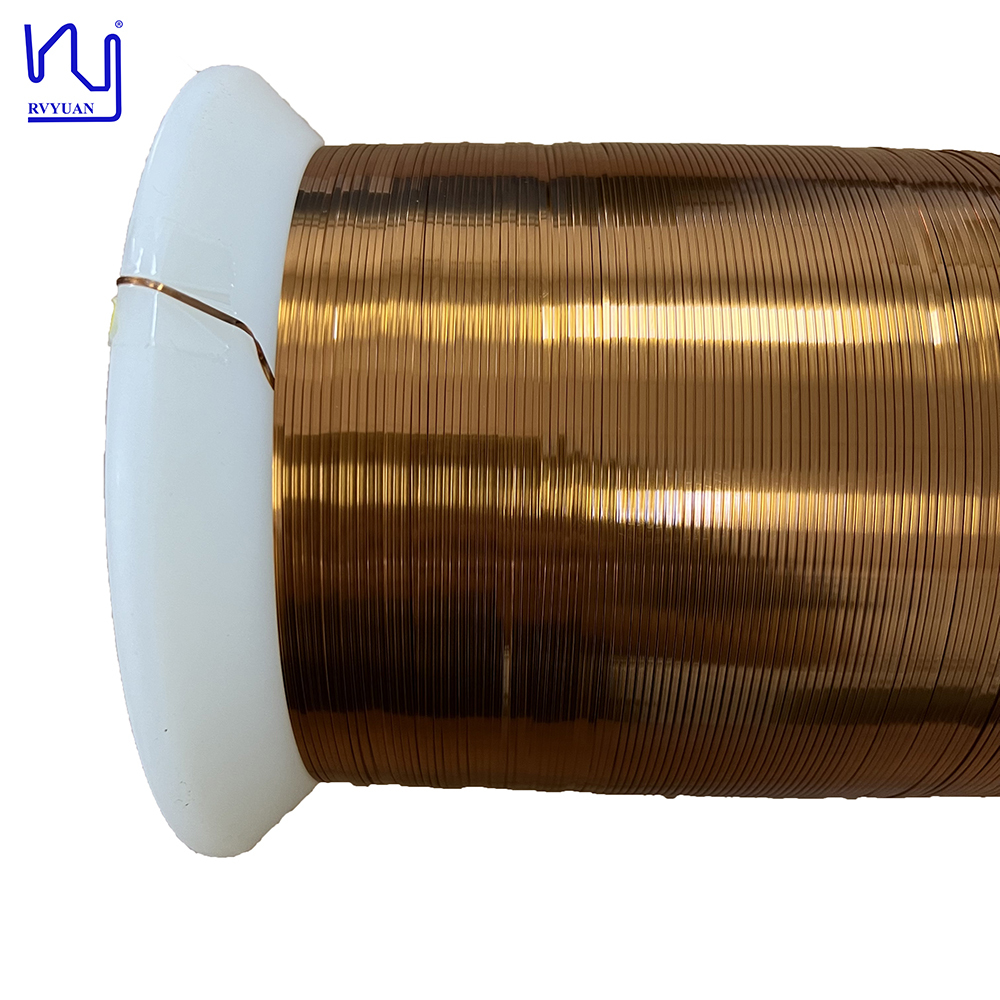

Class 220 0.2mm×1.0mm Enameled Flat Magnet Wire product photo
