Manufacturer High-frequency 0.071mmx840 Nylon Wrapped Copper Silk Covered Litz Wire for Wireless Charging

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.071mm	Temperature:	155/180
Certification:	IEC/NEMA/JIS/RoHS/ISO	Conductor:	Copper
Strands:	840	Breakdown Voltage:	1300
Insulation:	UEW	Product Name:	Manufacturer High-frequency 0.071mmx840 Nylon Wrapped Copper Silk Covered Litz Wire For Wireless Charging
Key Word:	Manufacturer High-frequency 0.071mmx840 Nylon Wrapped Copper Silk Covered Litz Wire For Wireless Charging

Product Description

Manufacturer High-frequency 0.071mmx840 Nylon Wrapped Copper Silk Covered Litz Wire for Wireless Charging

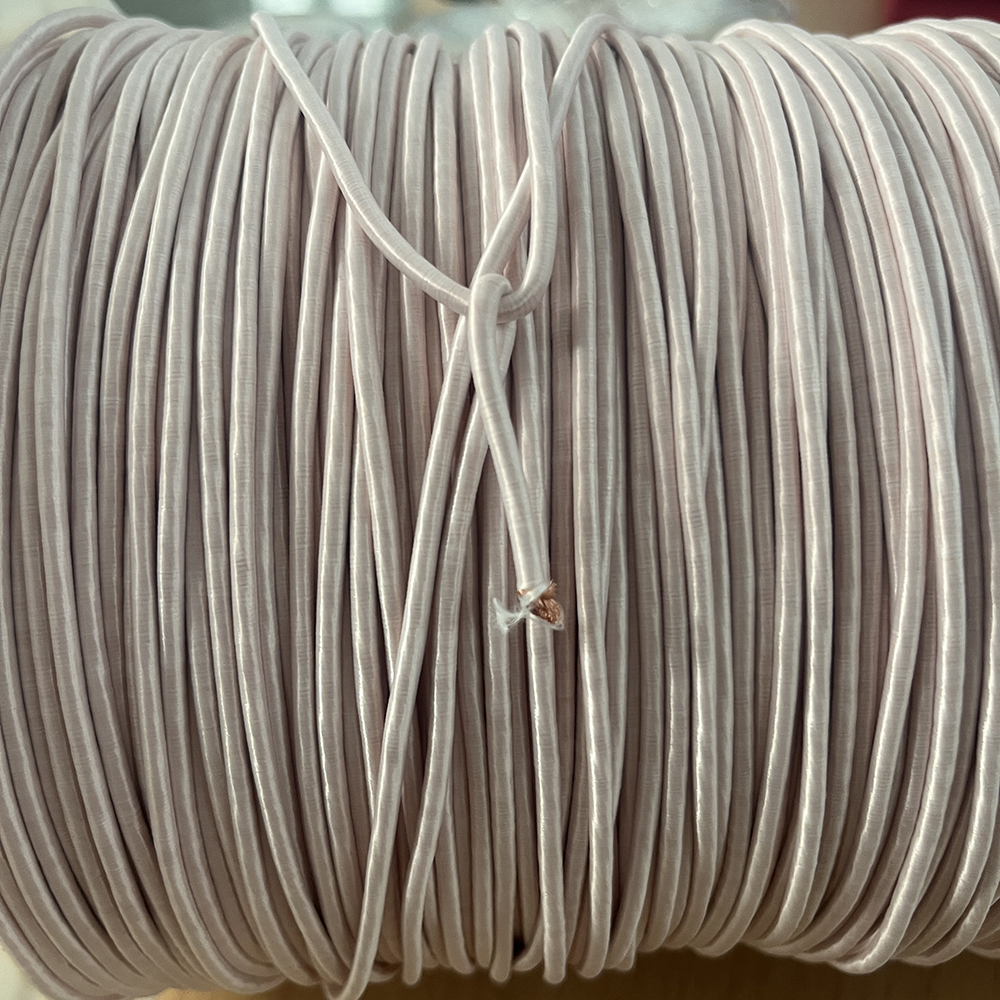

This silk covered litz wire made of 840 strands twisted together, with an outer layer wrapped in nylon yarn, the overall dimension is ranges from 2.65mm to 2.85mm, and the maximum resistance is 0.00594Ω/m.

If your product requirements fall within this range, then this wire is suitable for you.This silk covered litz wire is primarily used for winding transformers. We offer two jacket options: one is nylon yarn, and the other is polyester yarn. You can choose different jackets according to your design.

Outgoing test of silk covered litz wire	Spec: 0.071x840	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.071-0.084	0.079	0.080
Conductor diameter(mm)	0.071±0.003	0.068	0.070
Overall diameter (mm)	Max.3.20	2.65	2.85
Pitch(mm)	40±10	√	√
Max resistance (Ω/m at20℃)	Max. 0.005940	0.005394	0.005400
Breakdown voltage Mini (V)	950	2600	2700

Manufacturer High-frequency 0.071mmx840 Nylon Wrapped Copper Silk Covered Litz Wire for Wireless Charging 0
