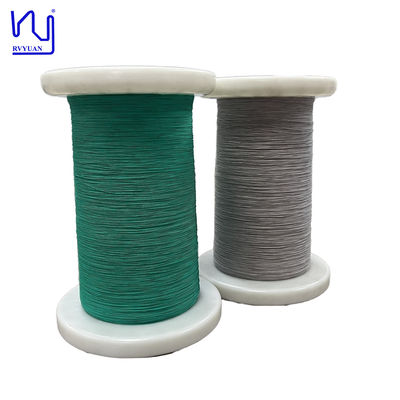

UL Certified 0.1mmx200 Strands Color Silk Covered Litz Wire

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: USTC
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Diameter: 0.1mm Temperature: 155/180
Certification: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown Voltage: 1300 Insulation: UEW
Product Name: UL Certified 0.1mmx200 Strands Color Silk Covered Litz Wire Key Word: UL Certified 0.1mmx200 Strands Color Silk Covered Litz Wire
Highlight:

Silk Covered Litz Wire

,

0.1mm Litz Wire

,

200 Strands Litz Wire


Product Description

UL Certified 0.1mmx200 Strands Color Silk Covered Litz Wire



The Litz wire can be customized with strand counts from 1 to up to 12,500 strands to meet the specific electrical and mechanical requirements of your project. This flexibility not only improves the performance of the wire, but also allows for greater design freedom, allowing engineers and designers to create innovative solutions that push the boundaries of technology. Whether you are developing a high-efficiency transformer or an advanced electronic circuit, our Litz wire provides the reliability and performance you need to succeed.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000

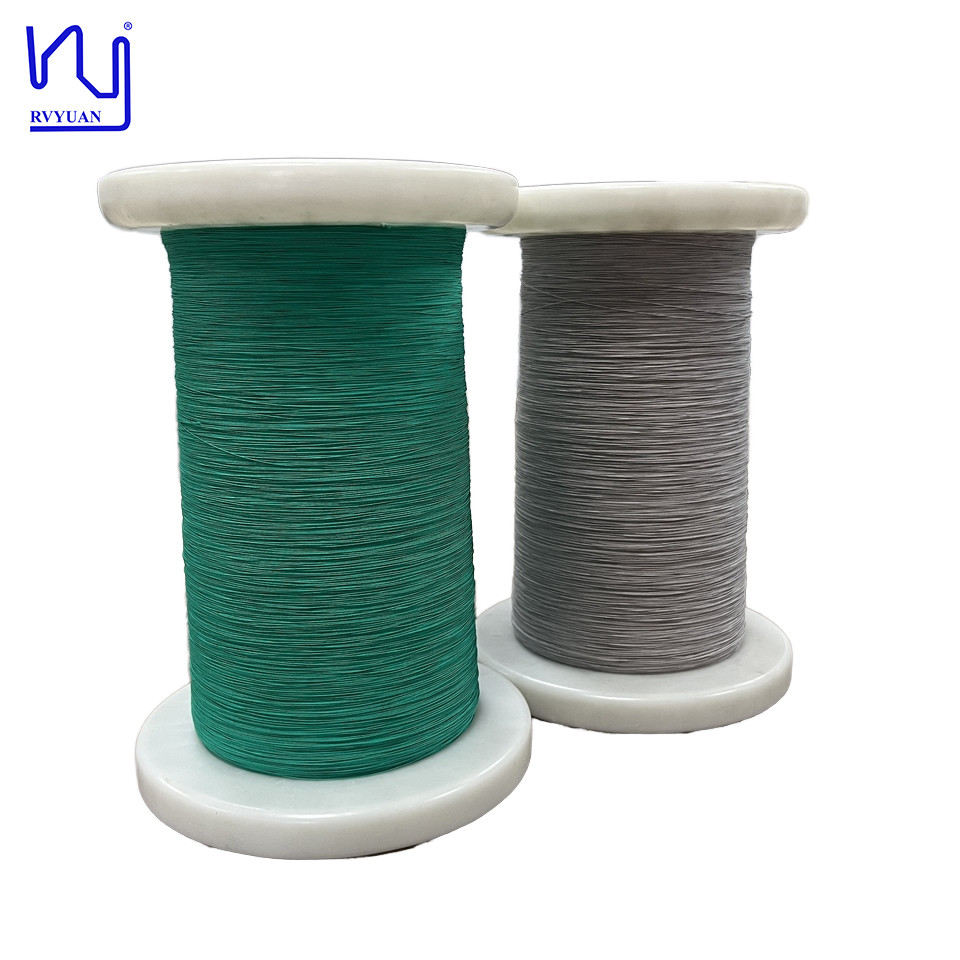

UL Certified 0.1mmx200 Strands Color Silk Covered Litz Wire 0UL Certified 0.1mmx200 Strands Color Silk Covered Litz Wire 1UL Certified 0.1mmx200 Strands Color Silk Covered Litz Wire 2
