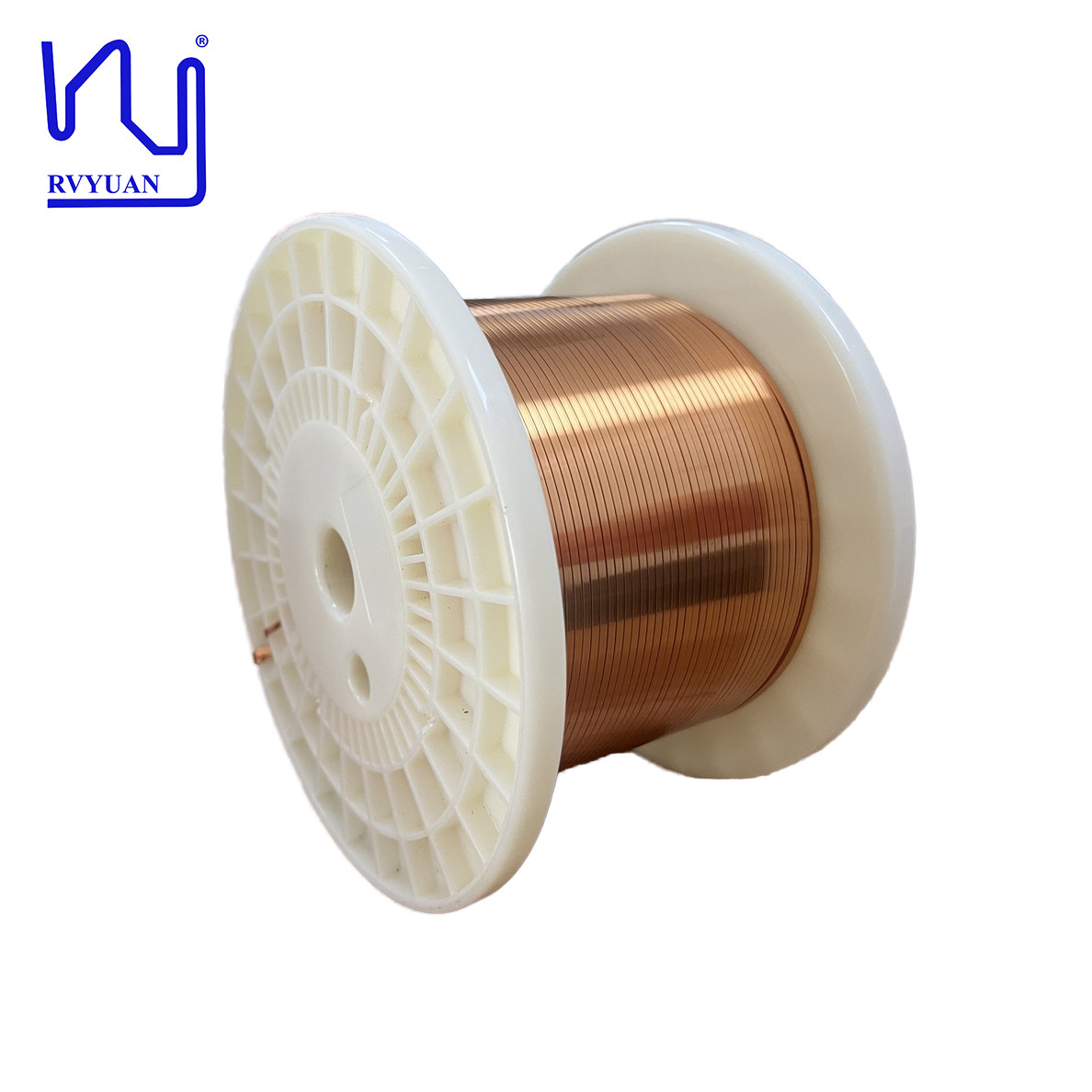

Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEWH

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	7 days
Payment Terms:	T/T, Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Width Of Conductor:	2.4mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness Of Conductor:	0.5mm
Applications:	Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor	Thermal Grade:	220
Key Word:	Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor
Highlight:	Class 180 Enameled Flat Copper Wire , 0.06mm Enameled Flat Copper Wire , 0.8mm Enameled Flat Copper Wire

Product Description

Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor

Our enameled flat copper wires are available in a variety of temperature grades from 180°C to 240°C, making them ideal for high temperature applications. This versatility ensures our wires meet the needs of a variety of industries including automotive, aerospace and renewable energy.

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		T	W	T	W	T	W	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.400	0.025	/	/	/
	Max	0.509	2.460	0.040	0.550	0.0550	2.500		16.090
	Min	0.491	2.340	0.010				0.700
No. 1		0.501	2.405	0.039	0.544	0.544	2.483	4.880	14.437
No. 2		0.500	2.406	0.039	0.545	0.545	2.485	4.331
No. 3		0.502	2.407	0.039	0.543	0.543	2.484	3.660
No. 4								4.515
No. 5								4.600
No. 6								4.770
No. 7								4.440
No. 8								4.250
No. 9								3.990
No. 10								3.750
Avg		0.501	2.406	0.022	0.039	0.544	2.484	4.319
No.of reading		3	3	3	3	3	3	10
Min. reading		0.500	2.405	0.021	0.022	0.543	2.483	3.660
Max. reading		0.502	2.407	0.023	0.039	0.545	2.485	4.880
Range		0.002	0.002	0.002	0.001	0.002	0.002	1.220
Result		OK	OK	OK	OK	OK	OK	OK	OK

Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor 0
