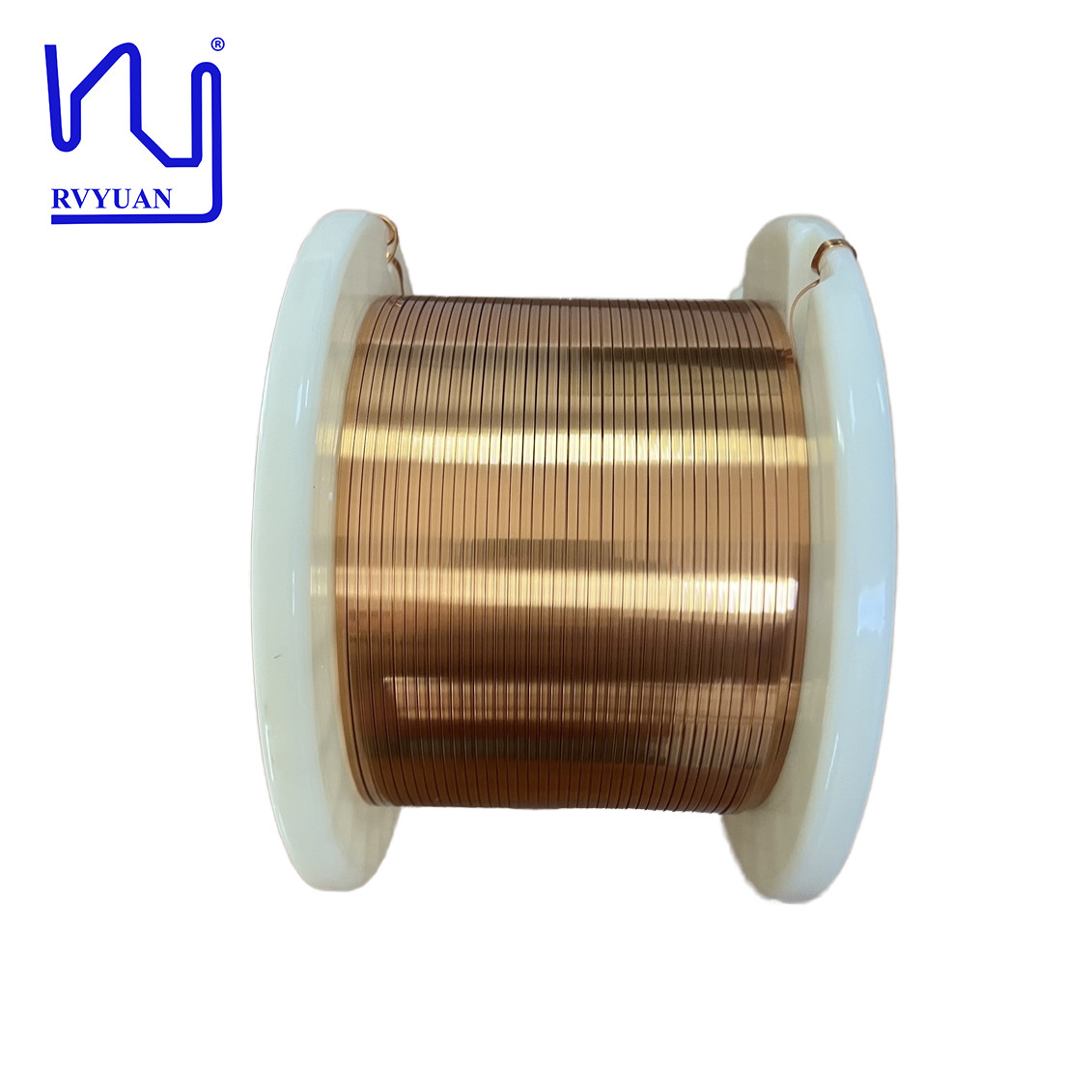

Name: UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: UEWH
Price: 24.06 USD
Availability: InStock

UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEWH

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	7 days
Payment Terms:	T/T, Paypal
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Width Of Conductor:	2.4mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness Of Conductor:	0.5mm
Applications:	UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor	Thermal Grade:	220
Key Word:	UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor
Highlight:	UEWH Solderable Flat Copper Wire , Motor Solderable Flat Copper Wire , Solderable Enameled Flat Copper Wire

Product Description

UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor

Enameled rectangular copper wire is an indispensable material in the manufacture of motors and transformers, where reliability and heat resistance are critical. The rectangular design allows for optimal packing density, ensuring more wires fit in a given space, which is essential for maximizing the efficiency of electrical equipment. Our wires are carefully designed for excellent conductivity and very low energy loss, making them the preferred choice of engineers and manufacturers.

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		T	W	T	W	T	W	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.400	0.025	/	/	/
	Max	0.509	2.460	0.040	0.550	0.0550	2.500		16.090
	Min	0.491	2.340	0.010				0.700
No. 1		0.501	2.405	0.039	0.544	0.544	2.483	4.880	14.437
No. 2		0.500	2.406	0.039	0.545	0.545	2.485	4.331
No. 3		0.502	2.407	0.039	0.543	0.543	2.484	3.660
No. 4								4.515
No. 5								4.600
No. 6								4.770
No. 7								4.440
No. 8								4.250
No. 9								3.990
No. 10								3.750
Avg		0.501	2.406	0.022	0.039	0.544	2.484	4.319
No.of reading		3	3	3	3	3	3	10
Min. reading		0.500	2.405	0.021	0.022	0.543	2.483	3.660
Max. reading		0.502	2.407	0.023	0.039	0.545	2.485	4.880
Range		0.002	0.002	0.002	0.001	0.002	0.002	1.220
Result		OK	OK	OK	OK	OK	OK	OK	OK

UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor 0
