Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire

Basic Information
Place of Origin: China
Brand Name: RVYUAN
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: USTC
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Diameter: 0.1mm Temperature: 155/180
Certification: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown Voltage: 1300 Insulation: UEW
Product Name: High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz WireRed Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire Key Word: Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire
Highlight:

0.1mmx200 Stranded Litz Wire

,

Silk Covered Litz Wire

,

Polyester Served Copper Stranded Wire


Product Description

Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire



Our Litz wires are available in a variety of sizes, with single wire options ranging from 0.03mm to 0.5mm enameled copper wires. We primarily use solderable polyurethane enameled copper wires, which not only improves the durability of the wires but also ensures easy soldering during assembly. This feature is particularly beneficial for manufacturers and engineers who need to achieve reliable connections in their designs. Our Litz wires have excellent temperature resistance and are available in 155 and 180 degrees, making them suitable for a variety of environments and applications.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000

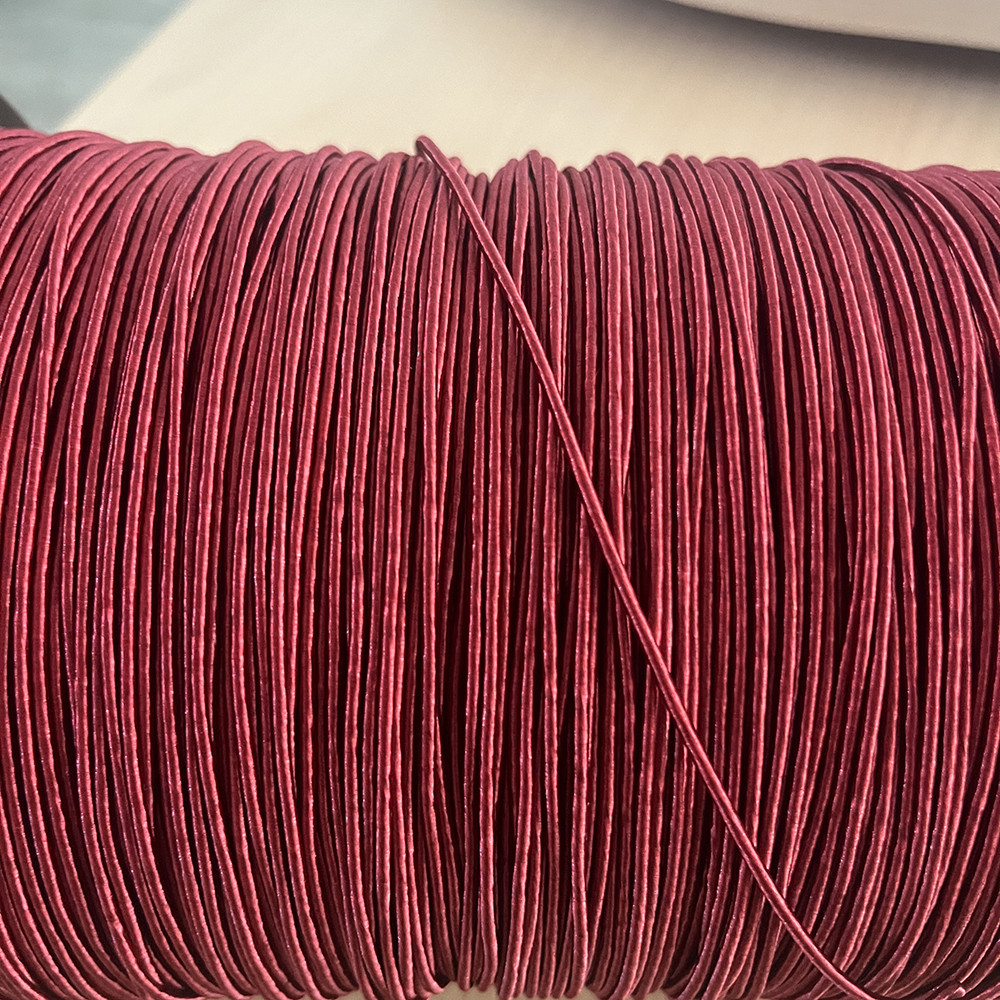

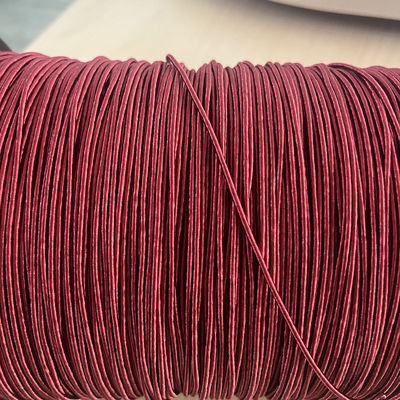

Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire 0Red Color Silk Covered Litz Wire 0.1mmx200 Polyester Served Copper Stranded Wire 1
