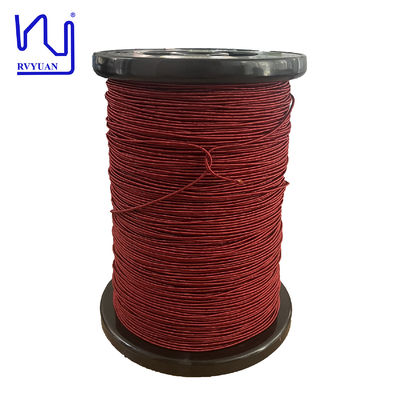

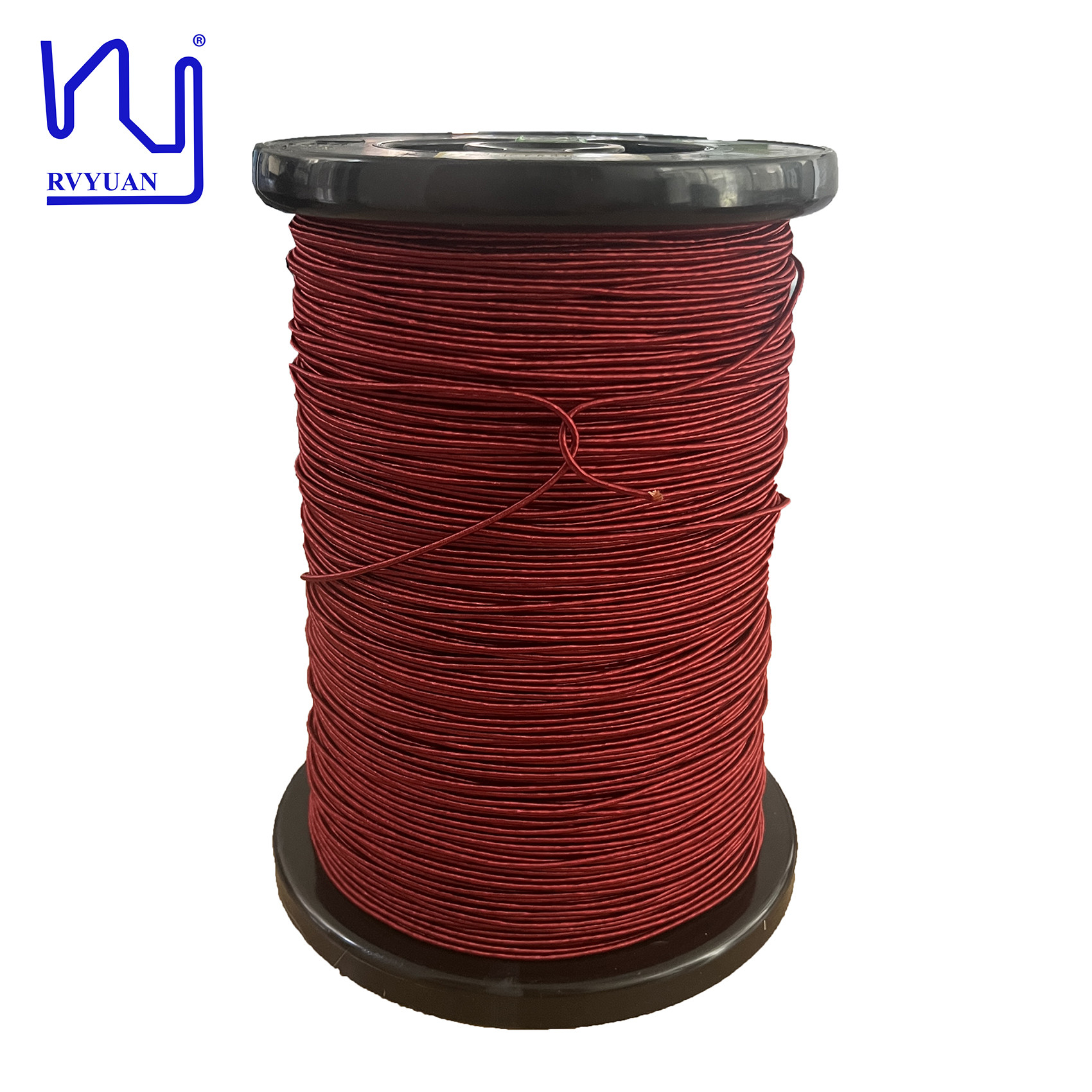

38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155/180
Certification:	IEC/NEMA/JIS/RoHS/ISO	AWG SIZE:	38
Conductor:	Copper	Strands:	200
Breakdown Voltage:	1300	Insulation:	UEW
Product Name:	High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire	Key Word:	High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire
Highlight:	Pure Copper Twisted Litz Wire , 0.1mm Yarn Wrapped Litz Wire , Durable Twisted Litz Wire

Product Description

High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire

What makes our silk covered litz wire unique is its customization options. We understand that different projects may require specific color schemes or aesthetic preferences. That’s why we offer a wide range of colored polyester yarns, allowing you to customize the wire to meet your unique needs. Whether you need a specific color to match your design or create a unique look for branding purposes, we have a high-performance wire that’s designed just for you.

Outgoing test of stranded wire	Spec: 0.1x200	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.107-0.125	0.110-0.114
Conductor diameter(mm)	0.10±0.003	0.0980-0.10
Overall diameter (mm)	Max.1.98	1.75-1.85
Pitch(mm)	29±5	√
Max resistance (Ω/m at20℃)	Max. 0.01191	0.01088
Breakdown voltage Mini (V)	1100	3000

38 AWG 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire Durable Conductor 0
