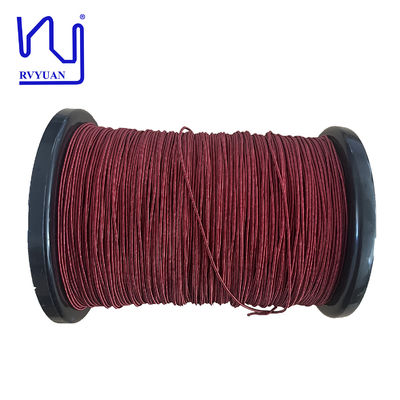

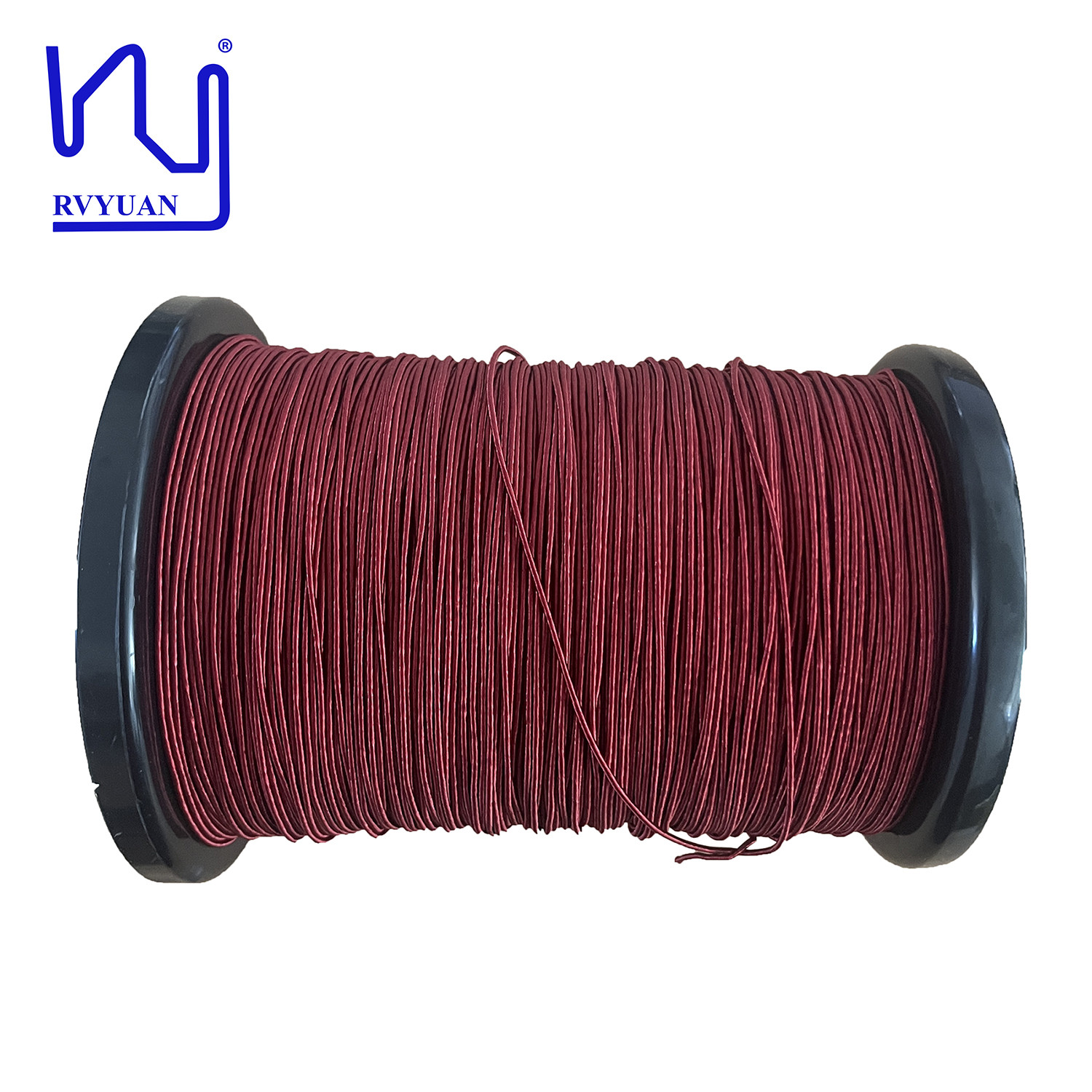

2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	USTC

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Diameter:	0.1mm	Temperature:	155/180
Certification:	IEC/NEMA/JIS/RoHS/ISO	AWG SIZE:	38
Conductor:	Copper	Strands:	200
Breakdown Voltage:	1300	Insulation:	UEW
Product Name:	2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire	Key Word:	2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire
Highlight:	0.1mm Stranded Wire , 2USTC-F Copper Litz Wire , Red Silk Litz Wire

Product Description

2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire

Silk covered Litz wire is designed to minimize eddy current losses, which are critical in transformer winding. Silk covered Litz wire is an indispensable component for engineers and manufacturers seeking to improve transformer performance and reliability. The combination of Silk covered Litz wire and Litz wire technology not only improves electrical performance, but also helps extend the life of the winding, making it a smart investment for any project.

Outgoing test of stranded wire	Spec: 0.1x200	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.107-0.125	0.110-0.114
Conductor diameter(mm)	0.10±0.003	0.0980-0.10
Overall diameter (mm)	Max.1.98	1.75-1.85
Pitch(mm)	29±5	√
Max resistance (Ω/m at20℃)	Max. 0.01191	0.01088
Breakdown voltage Mini (V)	1100	3000

2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire 0
