Name: Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire For Vehicles
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: AIW220
Price: 24.06 USD
Availability: InStock

Detail Information

Shape:	Rectangular	Width Of Conductor:	2.0mm
Unilateral Insulation Layer Thickness (Width):	0.025mm	Thickness Of Conductor:	0.1mm
Applications:	Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire For Vehicles	Thermal Grade:	220
Key Word:	Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire For Vehicles
Highlight:	Cusntomized rectangular copper wire , rectangular copper Conductor wire , 0.1mm rectangular magnet wire

Product Description

Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles

One of the highlights of Ruiyuan enameled flat copper wire is its excellent high temperature resistance. Our high temperature wire can withstand temperatures from 180 degrees Celsius to 240 degrees Celsius, making it ideal for applications in harsh environments. Whether you are in the automotive, aerospace or electrical industry, our enameled flat copper wire can withstand the pressure and perform excellently.

TEST REPORT
Model		SFT-AIW					Date
Size(mm):		0.100 × 2.000					Lot
Item		Conductor dimension		Unilateral insulation layer thickness		Overall dimension		Breakdown
Item		Thickness	Width	Thickness	Width	Thickness	Width	voltage
Unit		mm	mm	mm	mm	mm	mm	kv
SPEC	Ave	0.1	2	0.025	0.025
	Max	0.109	2.06	0.04	0.04	0.15	2.1
	Min	0.091	1.94	0.01	0.01			0.7
No. 1		0.104	2.003	0.021	0.012	0.146	2.027	1.063
No. 2								1.085
No. 3								1.132
No. 4								1.041
No. 5								1.015
Avg		0.104	2.003	0.021	0.012	0.146	2.027	1.067
NO.of reading		1	1	1	1	1	1	5
Min. reading		0.104	2.003	0.021	0.012	0.146	2.027	1.015
Max. reading		0.104	2.003	0.021	0.012	0.146	2.027	1.132
Range		0	0	0	0	0	0	0.117

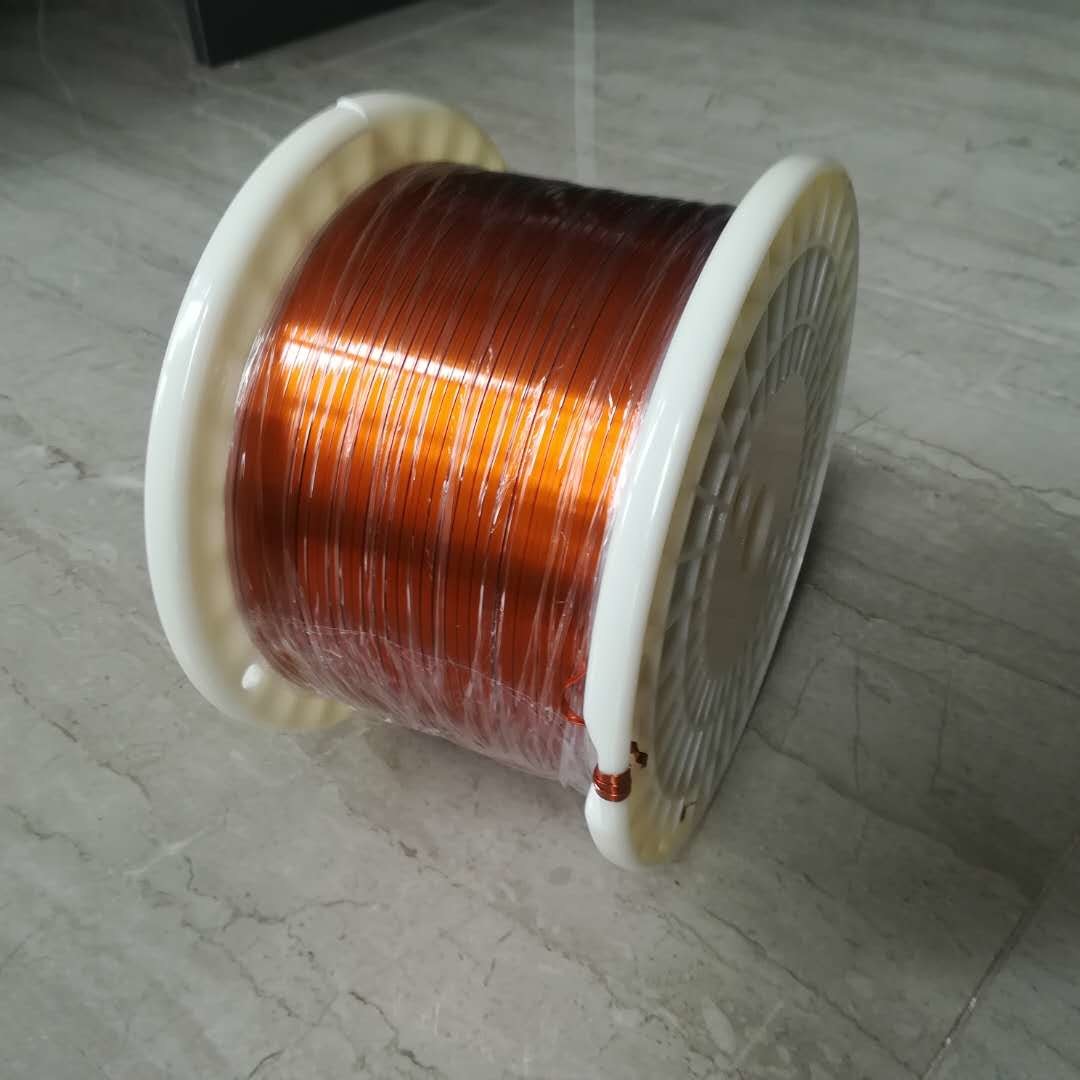

Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire For Vehicles 0

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	AIW220

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	7 days
Payment Terms:	T/T, Paypal
Supply Ability:	Satisfy your demand
