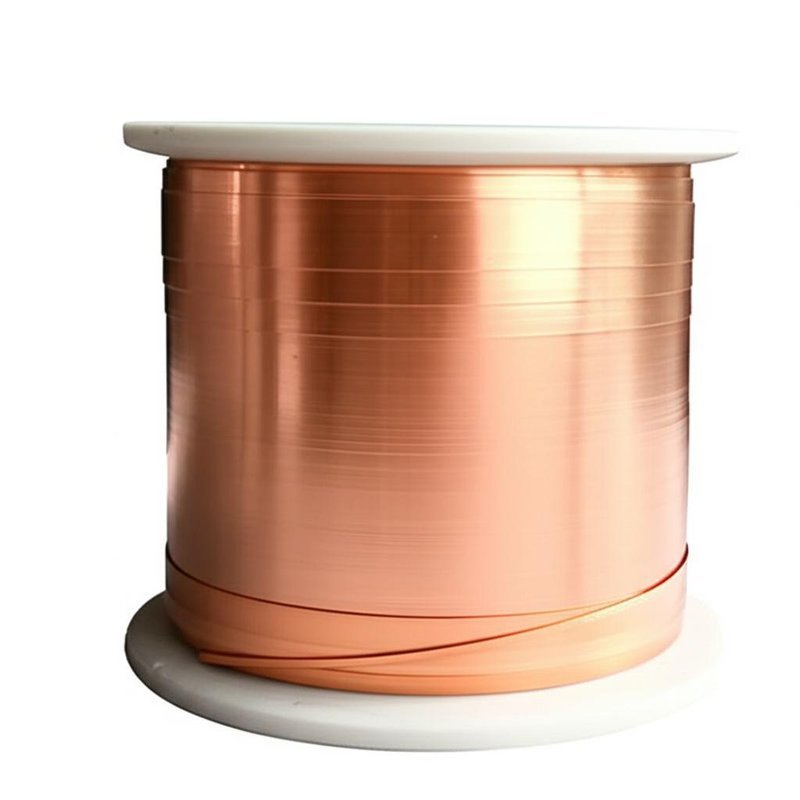

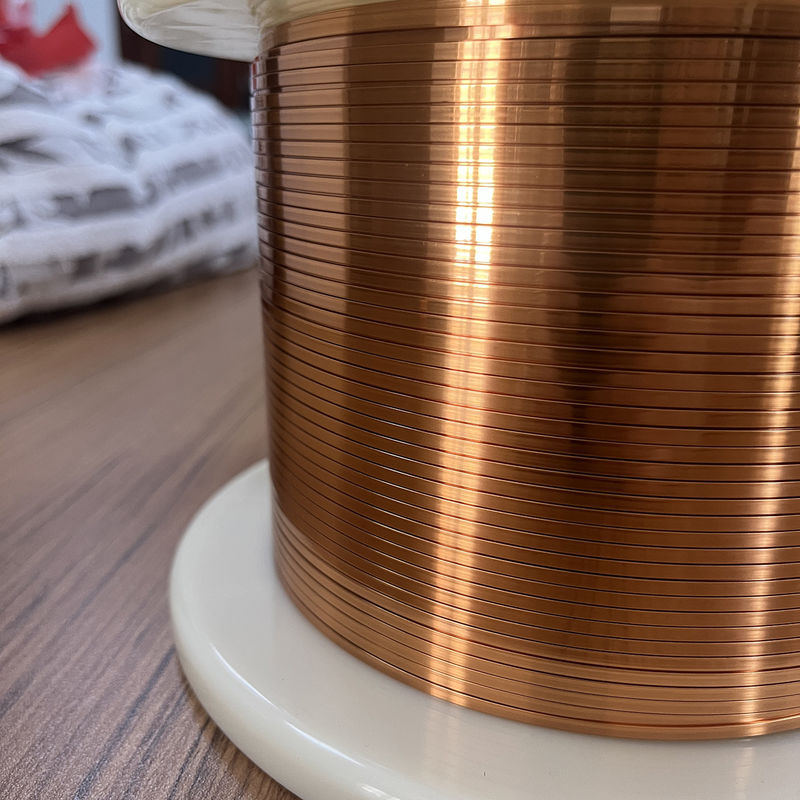

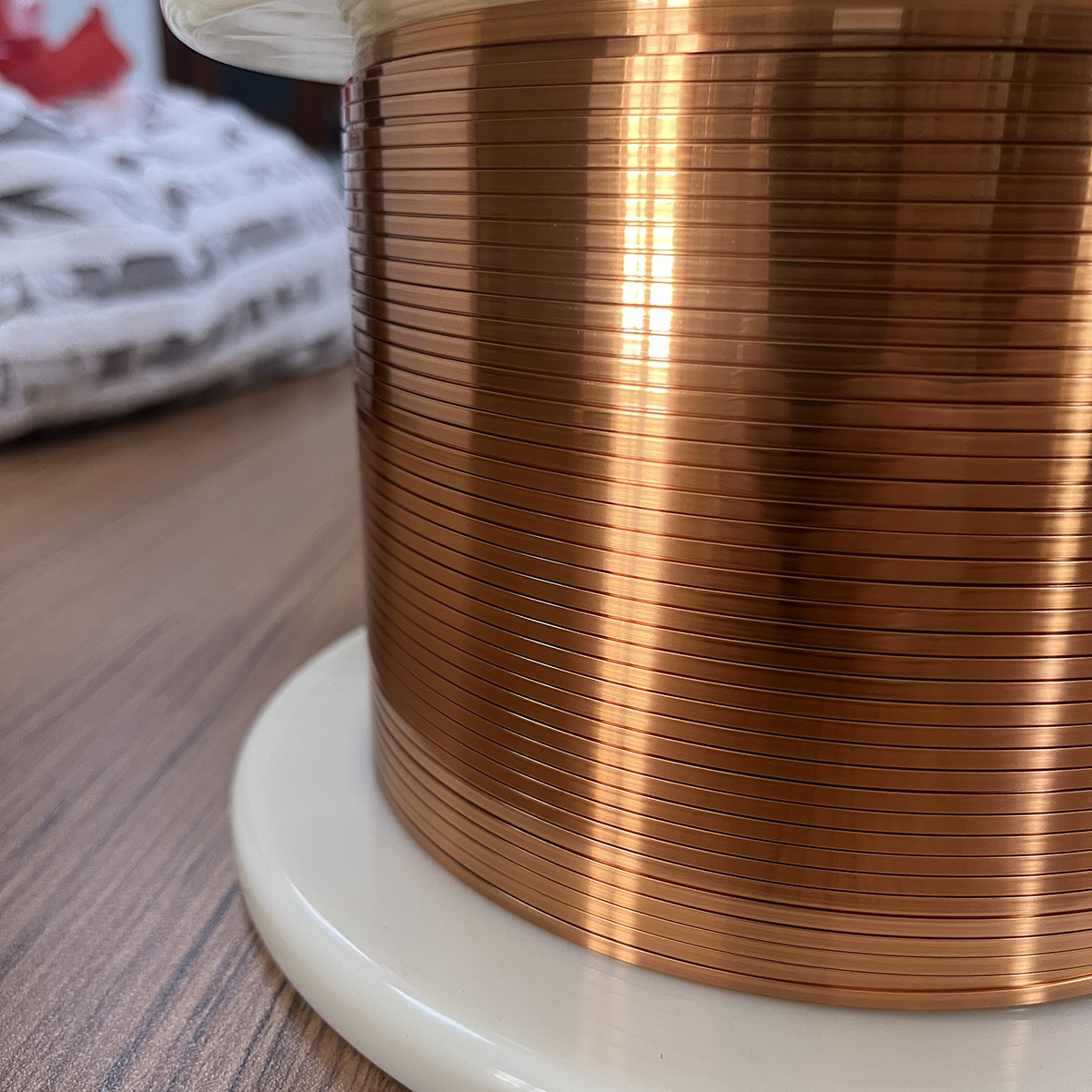

Thermal Grade 220 Enameled Flat Copper Wire 2.0mm For Motor Winding

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation,T/T,L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	0.5mm	Applications:	Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor
Thermal Grade:	220	Key Word:	Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor
Highlight:	2.0mm Enameled Flat Copper Wire , Thermal Enameled Flat Copper Wire , 2mm enamelled wire

Product Description

Thermal Grade 220 Supplies Wire Enameled Flat Copper Wire 2.0mm For Motor

Our rectangular enameled copper wires come in a wide range of sizes, allowing for flexibility in design and use. We can produce flat wires with thicknesses ranging from an extremely thin 0.03mm to a sturdy 3mm, suitable for a wide range of projects. In addition, our flat wires are available in widths up to 15mm, giving you the versatility you need for complex and large-scale applications. A 25:1 width-to-thickness ratio ensures our wires provide superior performance while maintaining structural integrity.

Technical Specifications

Item	Conductor dimension	Unilateral adhesive paint thickness	Unilateral insulation layer thickness	Overall dimension	Dielectric breakdown voltage	Conductor resistance
	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	Thickness (mm)	Width (mm)	kv	Ω/km 20℃
Unit	mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.500	2.000	/	0.025	0.025	/	/
Max	0.509	2.060	/	0.040	0.040	0.0560	2.110	19.490
Min	0.491	1.940	0.002	0.010	0.010	/	/	0.700
No. 1	0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310
No. 2								2.690
No. 3								2.520
No. 4								3.101
No. 5								3.454
No. 6								/
No. 7								/
No. 8								/
No. 9
No. 10								/
Avg	0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.815
Number of reading	1	1				1	1	5
Min. reading	0.495	2.001	0.003	0.023	0.022	0.548	2.052	2.310
Max. reading	0.495	2.001	0.003	0.023	0.022	0.548	2.052	3.454
Range	0.000	0.000				0.000	0.000	1.144
Result	OK	OK				OK	OK	OK
