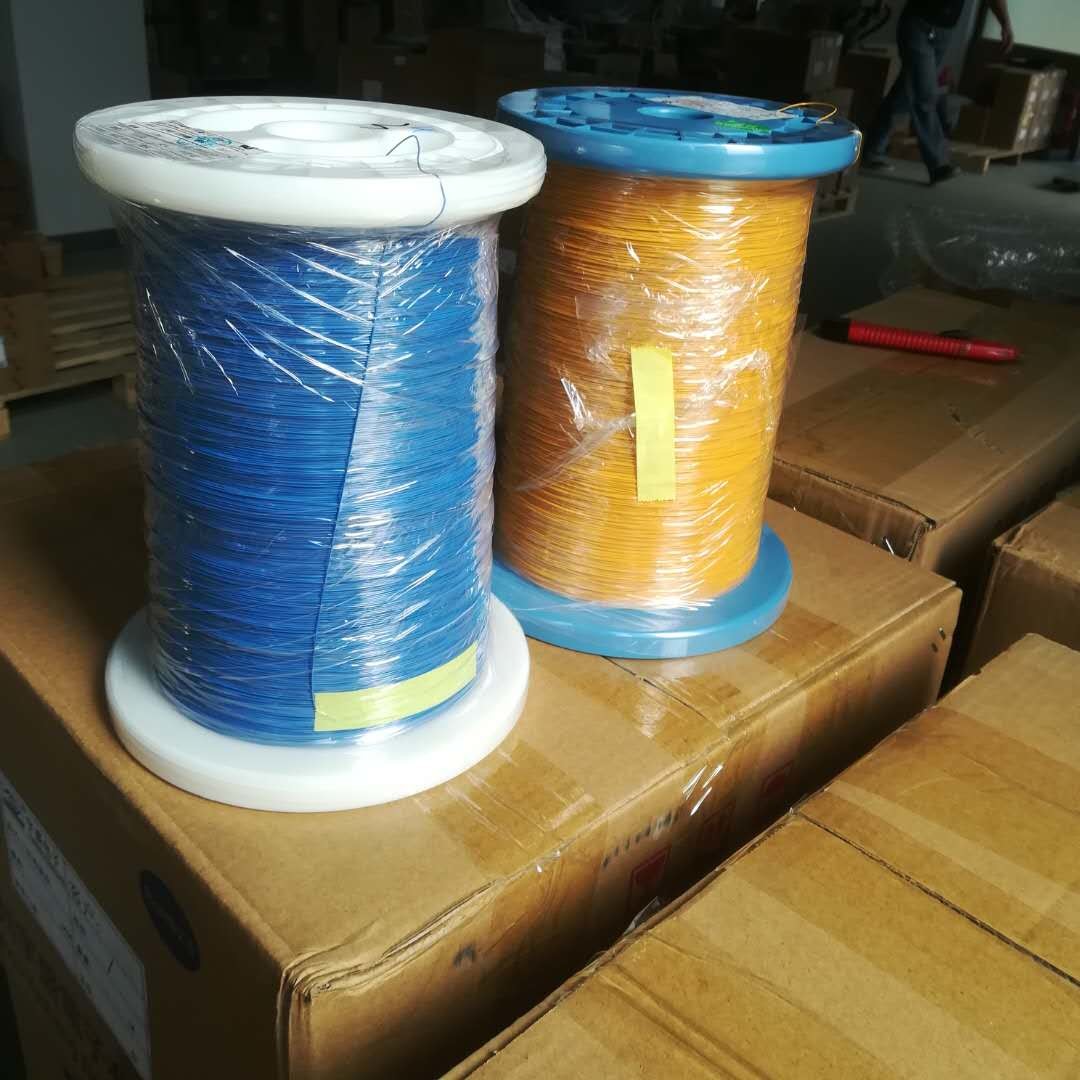

Name: TIW-B/F 0.3mm Triple Insulated Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.3mm
Price: 24.06 USD
Availability: InStock

TIW-B/F 0.3mm Triple Insulated Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.3mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	TIW-B/F 0.3mm Triple Insulated Wire	Thermal Rating:	130
Insulation Material:	PET	Diameter:	0.3mm
Conductor Material:	Copper	Key Word:	TIW-B/F 0.3mm Triple Insulated Wire

Product Description

TIW-B/F 0.3mm Triple Insulated Wire

In the ever-evolving world of electrical engineering, the need for high-quality components is paramount, especially when it comes to the production of high-voltage transformers. Ruiyuan is proud to introduce our premium triple-insulated wire (TIW), designed to meet the industry's demanding standards. Ranging in size from 0.15mm to 1.0mm, our TIW wire is designed to provide superior performance and reliability, making it an ideal choice for manufacturers looking to enhance their transformer designs.

Characteristics	Test Standard	Conclusion
Overall Diameter	/MM(MAX)	0.302
Insualtion thickness	/MM(Min)	0.02
Tolerance	0.30±0.003mm	0.30
Pitch	S13±2	OK
Overall dimension	1.130MM(MAX)	1.130
Insulation thickness	0.12±0.02MM(Min)	0.12
Pinhole	0Max	0
Resistance	37.37Ω/KM(Max)	36.47
Breakdown voltage	6KV(Min)	13.66
Solder ability ±10℃	450 3Secs	OK
Key word	TIW-B/F 0.3mm Triple Insulated Wire
