Product Name: | TIW-B Solderable Triple Insulated Wire 0.2mm-0.5mm Insulated Copper Wire | Thermal Rating: | 130 |
---|---|---|---|
Diameter: | 0.16mm | Conductor Material: | Copper |
Key Word: | TIW-B Solderable Triple Insulated Wire 0.2mm-0.5mm Insulated Copper Wire |

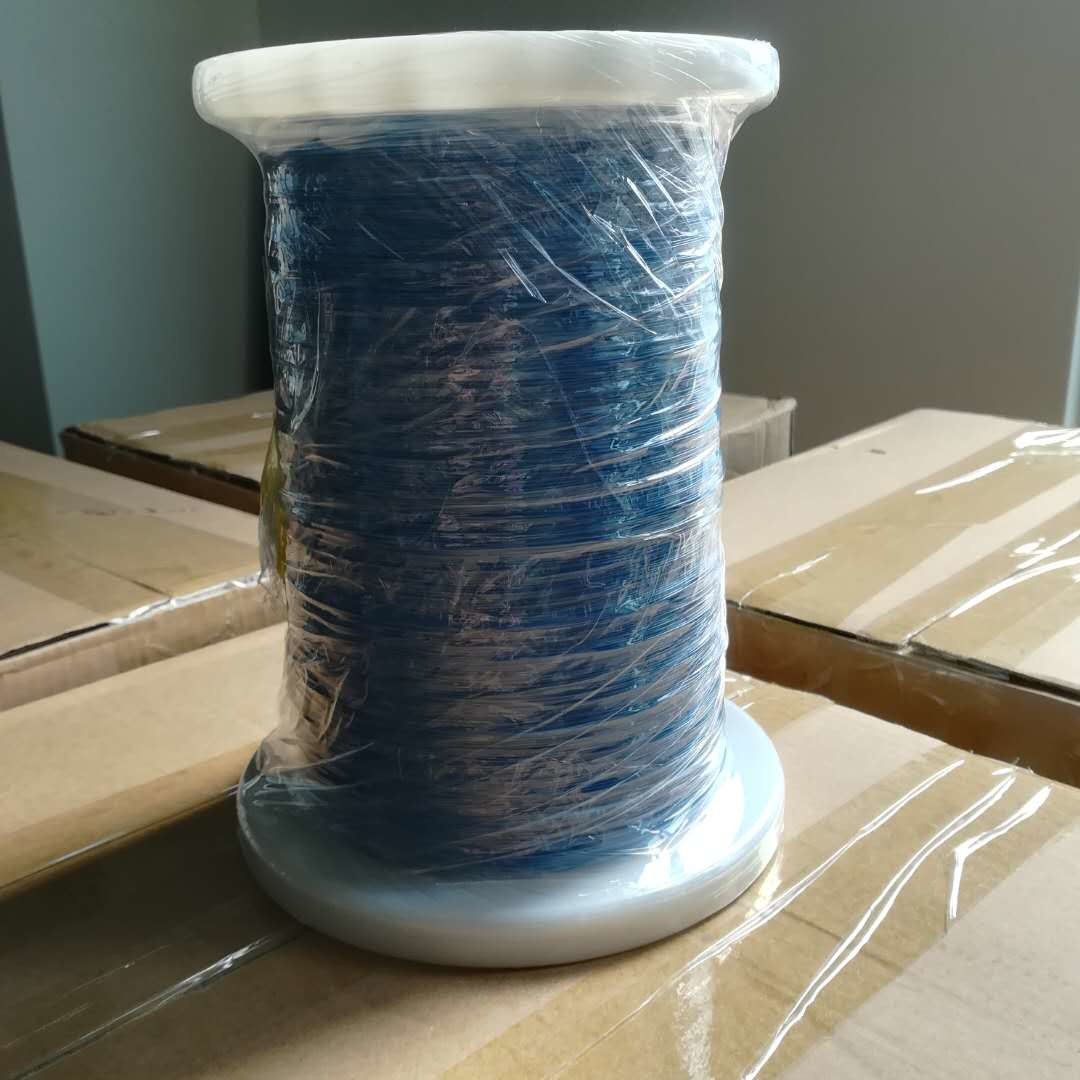

TIW-B Solderable Triple Insulated Wire 0.2mm-0.5mm Insulated Copper Wire
In addition to standard triple insulated wire, Ruiyuan also offers a special product called triple insulated Litz wire. This innovative product is made of multiple strands of enameled wire twisted together, which has higher flexibility and performance. The size and number of wire strands can be customized to your specific needs, providing a customized solution to meet the unique needs of your project. With a minimum order quantity of only 1000 meters, our triple insulated Litz wire is an excellent choice for manufacturers who want to optimize transformer design without compromising quality.
Characteristics |
Test standard |
conclusion |
Package |
Wether package condition is good(including carton, spool, PE film, air bubble film), whether carton's seal is complete |
OK |
Bare wire diameter |
0.16±0.008mm |
0.159-0.164 |
Overall diameter |
0.36±0.020mm |
0.359-0.362 |
Conductor resistance |
Max. 950.1Ω/KM |
898.3Ω/KM |
Breakdown voltage of straight wire |
The length of wire 305mm, wind on the copper bar, test condition 1mA/60s5.0KV |
OK |
Elongation |
Min. 15% |
17.2-18.5 |
Solerability |
430±5℃ 1-2.5 secs |
OK |
