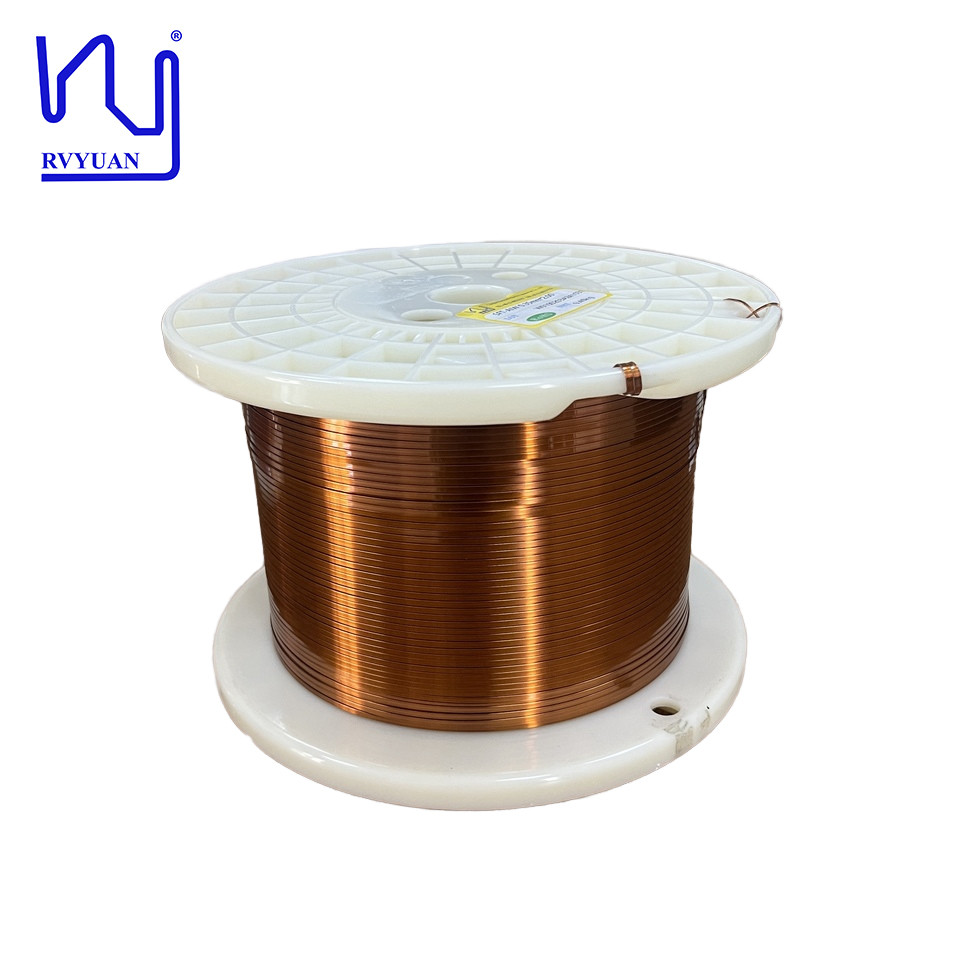

AIW220 High Temperature 0.35mmx2mm Enameled Flat Copper Wire For Vehicle

Basic Information

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Shape:	Rectangular	Conductor Dimension (Width):	2mm
Unilateral Insulation Layer Thickness (Width):	0.35mm	Applications:	AIW220 High Temperature 0.35mmx2mm Enameled Flat Copper Wire For Vehicle
Thermal Grade:	220	Key Word:	AIW220 High Temperature 0.35mmx2mm Enameled Flat Copper Wire For Vehicle
Highlight:	0.35mmx2mm Enameled Flat Copper Wire , Vehicle Enameled Flat Copper Wire , High Temperature flat enameled copper wire

Product Description

AIW220 High Temperature 0.35mmx2mm Enameled Flat Copper Wire For Vehicle

Enameled flat copper wire is widely used in industrial fields, especially in motor and transformer windings. In electric motors, wires are critical to creating the electromagnetic field that drives the motor's operation. Its high temperature resistance ensures that it can handle the heat generated during operation without degrading. Likewise, in transformers, the efficiency and durability of wires are critical to maintaining performance and reliability. The ability to withstand high temperatures makes it ideal for applications where heat build-up is a concern, ensuring equipment operates smoothly and efficiently.

TEST REPORT
Model		SFT-AIW					Date
Size(mm):		0.35 × 2.000					Lot
Item		Conductor dimension		Unilaterali nsulationlayer thickness		Overall dimension		Breakdown
Item		Thickness	Width	Thickness	Width	Thickness	Width	voltage
Unit		mm	mm	mm	mm	mm	mm	kv
SPEC	Ave	0.350	2.000	0.025	0.025
	Max	0.359	2.060	0.040	0.040	0.400	2.100
	Min	0.341	1.940	0.010	0.010			0.7
No. 1		0.350	1.999	0.019	0.019	0.385	2.037	1.650
No. 2								1.870
No. 3								2.140
No. 4								2.680
No. 5								2.280
Avg		0.350	1.999	0.018	0.019	0.385	2.037	2.124
Number of reading		1	1	1	1	1	1	5
Min. reading		0.350	1.999	0.018	0.019	0.385	2.037	1.650
Max. reading		0.350	1.999	0.018	0.019	0.385	2.037	2.680
Range		0	0	0	0	0	0	1.030
