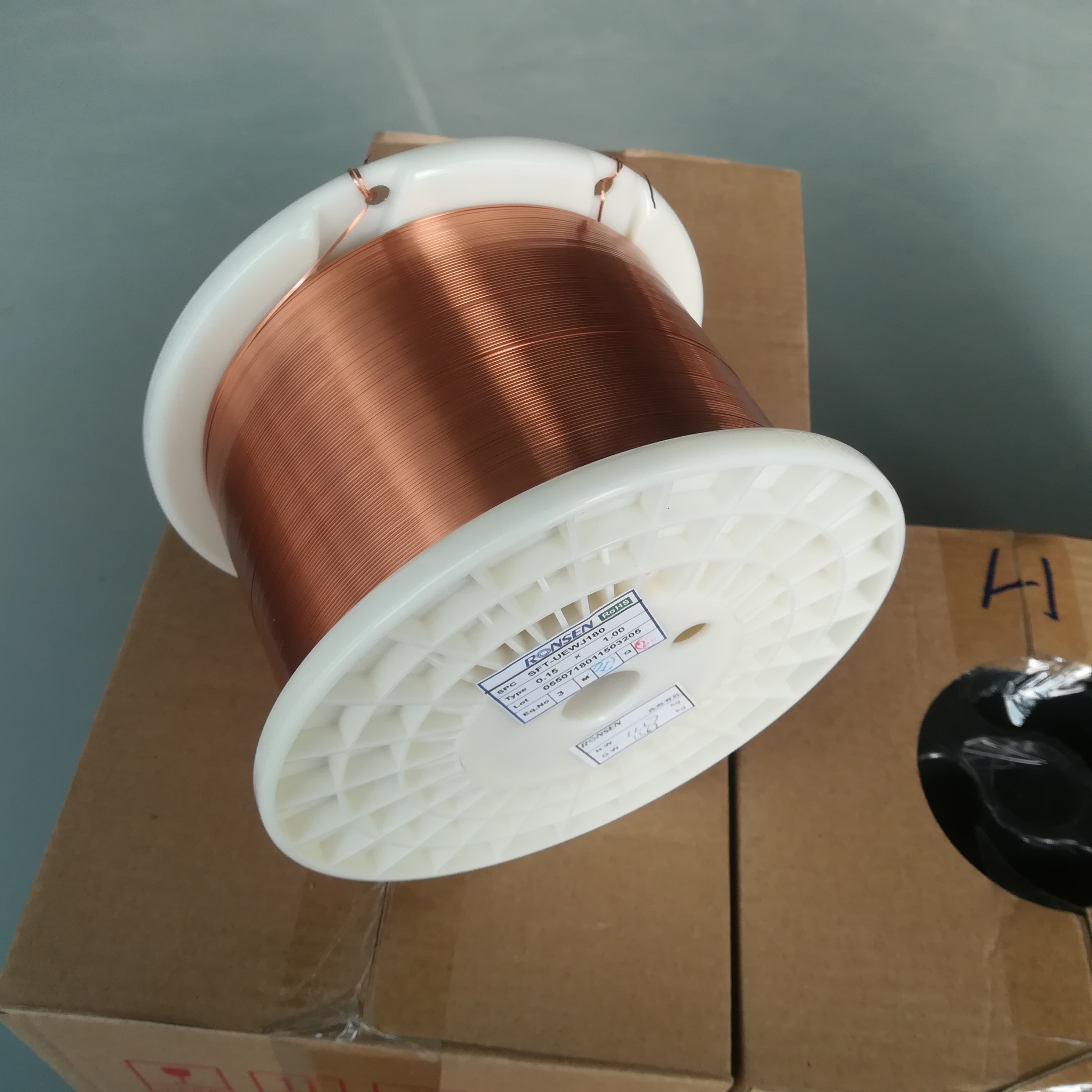

Name: AIW class 220 Super thin 0.03mm Enameled Flat Copper Winding Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Class 220
Price: 24.06 USD
Availability: InStock

AIW class 220 Super thin 0.03mm Enameled Flat Copper Winding Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Item:	AIW Class 220 Super Thin 0.03mm Enameled Flat Copper Winding Wire	Width:	0.5mm
Product Name:	AIW Class 220 Super Thin 0.03mm Enameled Flat Copper Winding Wire	Product Category:	Rectangular Copper Wire
Applications:	Audio	Thickness:	0.03mm
Material:	Copper	Key Word:	AIW Class 220 Super Thin 0.03mm Enameled Flat Copper Winding Wire
Highlight:	0.03mm Enameled Flat Copper Winding Wire , AIW Enameled Flat Copper Winding Wire , 220 Enameled Flat Copper Winding Wire

Product Description

AIW class 220 Super thin 0.03mm Enameled Flat Copper Winding Wire

Our enameled rectangular copper wires are available in a variety of coatings, including UEW (Ultra-High Temperature Enameled Wire), AIW (Aluminum Insulated Wire), EIW (Enameled Insulated Wire), and PIW (Polyimide Insulated Wire). Each coating offers unique benefits, such as enhanced thermal stability, improved electrical insulation, and greater durability. This variety enables customers to select the most appropriate coating for their specific needs, whether they require high temperature resistance or superior electrical performance.

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		Thickness	Width	Thickness	Width	Thickness	Width
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.030	0.500	0.005	0.039	0.039	0.510
	Max	0.034	0.0520	0.006	0.043	0.043	0.530		1398
	Min	0.091	1.940	0.010	0.010	0.035	0.490	0.500	989
No. 1		0.104	1.992	0.020	0.013	0.038	0.513	0.965	1164
No. 2								0.725
No. 3								0.852
No. 4								0.632
No. 5								0.864
Ave		0.030	0.501	0.004	0.006	0.038	0.513	0.808
NO of reading		1	1	1	1	1	1	5
Min. reading		0.030	0.501	0.004	0.006	0.038	0.513	0.632
Max. reading		0.030	0.501	0.004	0.006	0.038	0.513	0.965
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.333
Result		OK	OK	OK	OK	OK	OK	OK	OK
