Name: 2USTC/UDTC 0.03mm Ultra Fine Nylon Serving Litz Wire Copper For Small Transformers
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTCF litz wire
Price: 24.06 USD
Availability: InStock

Detail Information

Single Wire:	0.03mm	Number Of Strands:	10
Jacket:	Nylon	Other Option Of Jackets:	Polyester, Natural Silk
Conductor Material:	Copper	Key Word:	2USTC/UDTC 0.03mm Ultra Fine Nylon Serving Litz Wire Copper For Small Transformers
Product Name:	2USTC/UDTC 0.03mm Ultra Fine Nylon Serving Litz Wire Copper For Small Transformers
Highlight:	0.03mm Nylon serving Litz Wire , UDTC Nylon serving Litz Wire , Small Transformers Nylon serving Litz Wire

Product Description

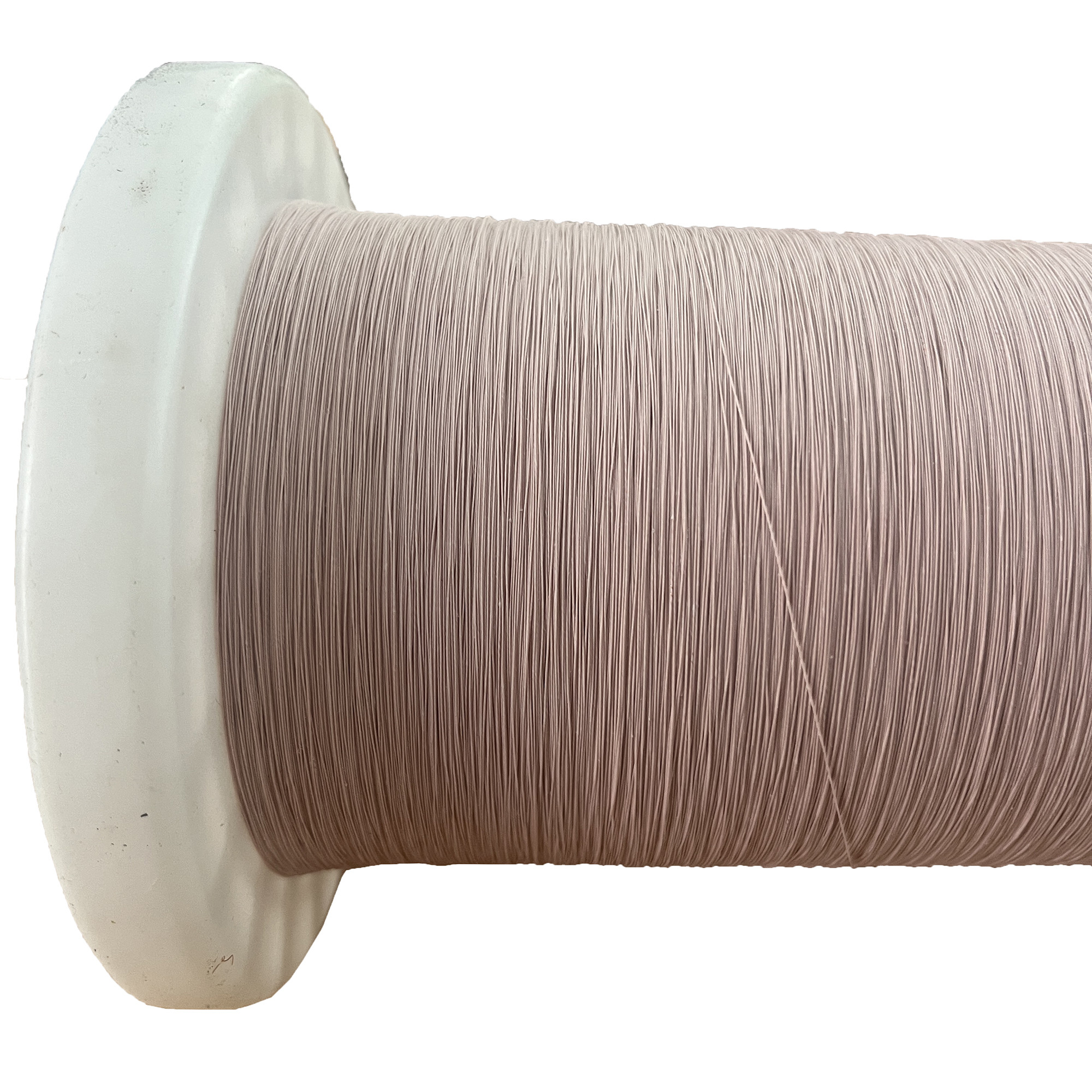

2USTC/UDTC 0.03mm Ultra fine Nylon serving Litz Wire Copper For Small Transformers

The nylon covered stranded wire is highly versatile and an excellent choice for windings in a wide range of small precision transformers. Whether you are designing a transformer for audio applications, telecommunications or power electronics, the silk covered litz wire can meet your specific needs. The wire’s light weight and small size allow for efficient winding, allowing manufacturers to create smaller, more efficient transformers without compromising performance. This is particularly beneficial in industries where space is at a premium and every millimeter counts.

Item	Conductor diameter mm	Single wire diameter mm	O.D.mm	Resistance Ω/m(20℃)	Dielectric strength v	Pitch mm	Pinhole
Tech requirement	0.035-0.044	0.03	0.21	2.827	400	16	6m 20 faults
±		0.002	Max	Max.	Min	2	Max
1	0.037	0.028	0.16	2.48	1700	√	6
2	0.039	0.030	0.18	2.49	1900	√	4

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	USTCF litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	TT/Paypal
Supply Ability:	100kg/week
