| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings | Width: | 1.8mm |
|---|---|---|---|
| Product Name: | AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings | Product Category: | Rectangular Copper Wire |
| Applications: | Vehicles | Thickness: | 0.2mm |
| Material: | Copper | Key Word: | AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire For Motor Windings |
| Highlight: | High Temperature Flat Enamelled Copper Wire,Motor Windings Flat Enamelled Copper Wire,AIW Flat Enamelled Copper Wire |
||

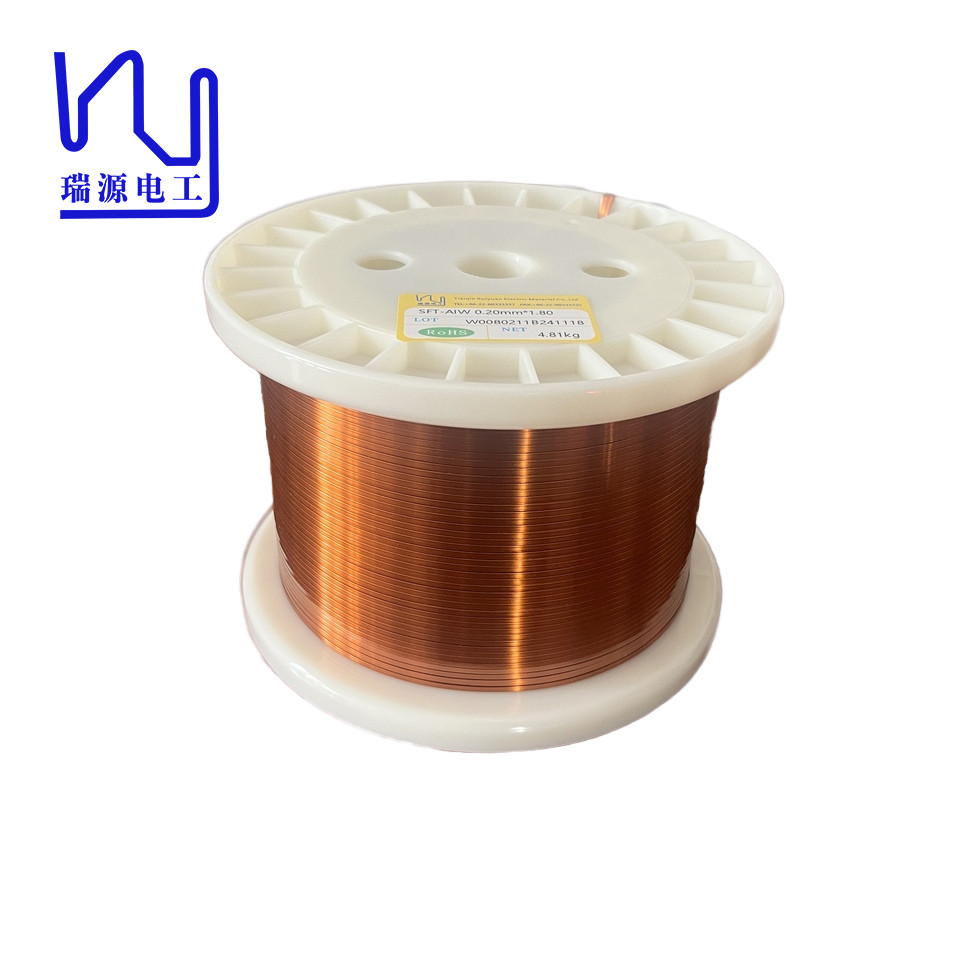

AIW 0.20*1.80mm 220℃ Flat Enamelled Copper Wire for Motor Windings
This Ultrafine High Temperature Flat Enameled copper Wire is a premium product that combines superior performance with customization options to meet the needs of our customers. Whether you are involved in the manufacture of electric motors, transformers, or other electronic devices, our enameled flat copper wire will provide excellent results. With its high temperature resistance, customizable sizes, and efficient design, this wire will become an essential part of your next project. When choosing the right enameled flat wire for your application, trust our expertise and commitment to quality.
|
TEST REPORT |
|||||||||||||||
|
Model |
SFT-AIW |
Date |
|
||||||||||||
|
Size(mm): |
0.200 × 1.800 |
Lot |
/ |
||||||||||||
|
|
|||||||||||||||
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
||||||||||
|
Unit |
mm |
mm |
mm |
mm |
mm |
mm |
kv |
Pcs/m |
Ω/km 20℃ |
% |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
AVE |
0.200 |
1.800 |
0.025 |
0.025 |
|
|
|
|
|
|
||||
|
Max |
0.209 |
1.860 |
0.040 |
0.040 |
0.250 |
1.900 |
|
3 |
52.500 |
|
|||||
|
Min |
0.191 |
1.740 |
0.010 |
0.010 |
|
|
0.700 |
|
|
30 |
|||||
|
No. 1 |
0.205 |
1.806 |
0.019 |
0.015 |
0.242 |
1.835 |
1.320 |
0 |
46.85?0 |
38 |
No to be scratched No dirt |
Good |
Good |
Good |
|
|
No. 2 |
|
|
|
|
|
|
1.020 |
||||||||
|
No. 3 |
|
|
|
|
|
|
2.310 |
||||||||
|
No. 4 |
|
|
|
|
|
|
2.650 |
||||||||
|
No. 5 |
|
|
|
|
|
|
1.002 |
||||||||
|
No. 6 |
|
|
|
|
|
|
|
||||||||
|
No. 7 |
|
|
|
|
|
|
|
||||||||
|
No. 8 |
|
|
|
|
|
|
|
||||||||
|
No. 9 |
|
|
|
|
|
|
|
||||||||
|
No. 10 |
|
|
|
|
|
|
|
||||||||
|
Avg |
0.205 |
1.806 |
0.019 |
0.015 |
0.242 |
1.835 |
1.660 |
||||||||
|
Number of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
||||||||
|
Min. reading |
0.205 |
1.806 |
0.019 |
0.015 |
0.242 |
1.835 |
1.002 |
||||||||
|
Max. reading |
0.205 |
1.806 |
0.019 |
0.015 |
0.242 |
1.835 |
2.650 |
||||||||
|
Range |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
1.648 |
||||||||
|
Result |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
