| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wir | Width: | 1.8mm |
|---|---|---|---|
| Product Name: | High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wir | Product Category: | Rectangular Copper Wire |
| Applications: | Vehicles | Thickness: | 0.2mm |
| Material: | Copper | Key Word: | High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wir |
| Highlight: | Flat Rectangular Magnet Wire,Enamel Coated Rectangular Magnet Wire,220 Degree Rectangular Magnet Wire |
||

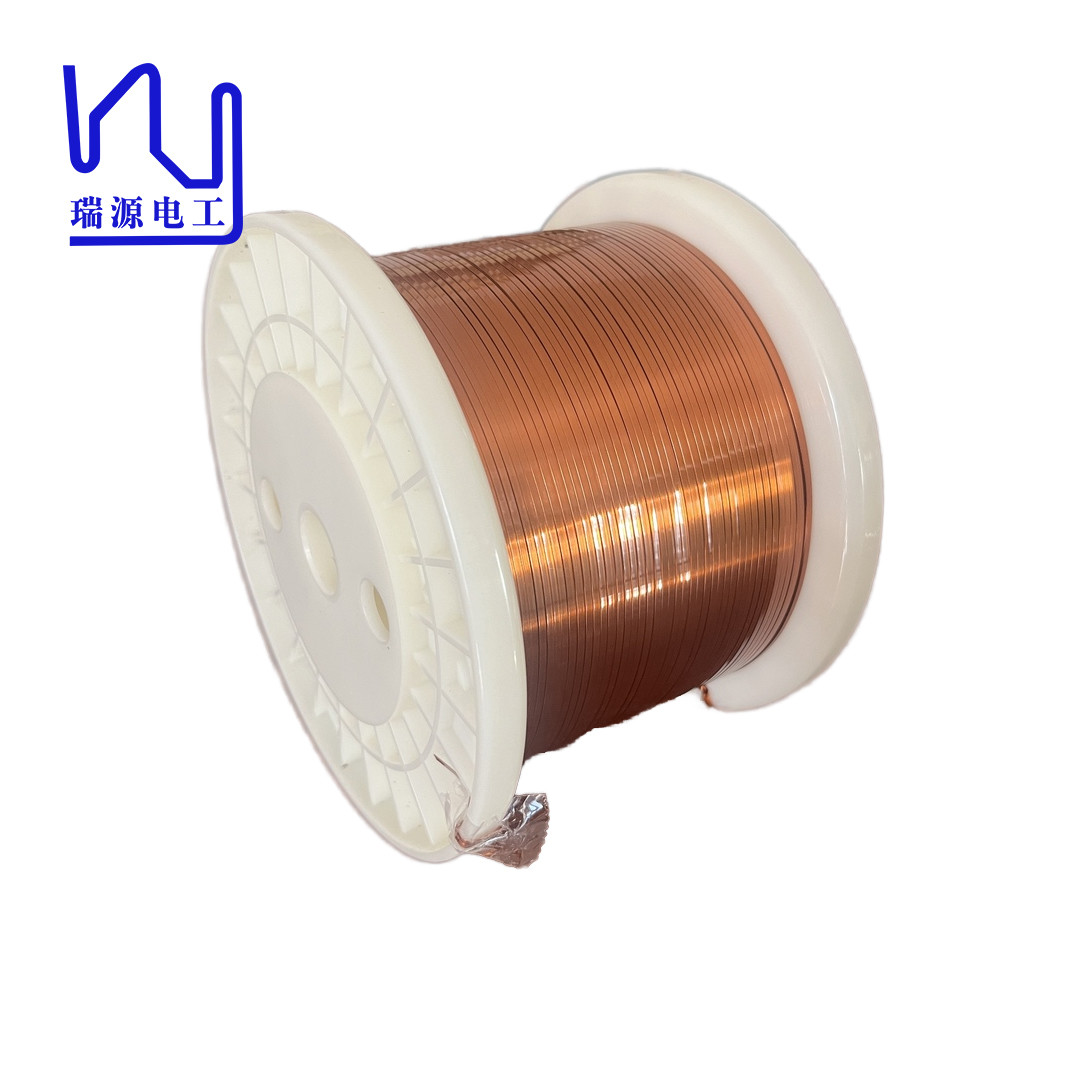

High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire
One of the standout features of our enameled flat copper wire is its customizability. We understand that different applications may require specific sizes and thermal ratings, which is why we offer custom solutions to meet your unique needs. Our enameled flat copper wire can be customized with a 25:1 width to thickness ratio, allowing for a variety of configurations to meet your project requirements. Additionally, we offer options for 180, 200, and 220 degree temperature rated wire, ensuring you have the right product for your specific application.
|
TEST REPORT |
|||||||||||||||
|
Model |
SFT-AIW |
Date |
|
||||||||||||
|
Size(mm): |
0.200 × 1.800 |
Lot |
/ |
||||||||||||
|
|
|||||||||||||||
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
||||||||||
|
Unit |
mm |
mm |
mm |
mm |
mm |
mm |
kv |
Pcs/m |
Ω/km 20℃ |
% |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
AVE |
0.200 |
1.800 |
0.025 |
0.025 |
|
|
|
|
|
|
||||
|
Max |
0.209 |
1.860 |
0.040 |
0.040 |
0.250 |
1.900 |
|
3 |
52.500 |
|
|||||
|
Min |
0.191 |
1.740 |
0.010 |
0.010 |
|
|
0.700 |
|
|
30 |
|||||
|
No. 1 |
0.205 |
1.806 |
0.019 |
0.015 |
0.242 |
1.835 |
1.320 |
0 |
46.85?0 |
38 |
No to be scratched No dirt |
Good |
Good |
Good |
|
|
No. 2 |
|
|
|
|
|
|
1.020 |
||||||||
|
No. 3 |
|
|
|
|
|
|
2.310 |
||||||||
|
No. 4 |
|
|
|
|
|
|
2.650 |
||||||||
|
No. 5 |
|
|
|
|
|
|
1.002 |
||||||||
|
No. 6 |
|
|
|
|
|
|
|
||||||||
|
No. 7 |
|
|
|
|
|
|
|
||||||||
|
No. 8 |
|
|
|
|
|
|
|
||||||||
|
No. 9 |
|
|
|
|
|
|
|
||||||||
|
No. 10 |
|
|
|
|
|
|
|
||||||||
|
Avg |
0.205 |
1.806 |
0.019 |
0.015 |
0.242 |
1.835 |
1.660 |
||||||||
|
Number of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
||||||||
|
Min. reading |
0.205 |
1.806 |
0.019 |
0.015 |
0.242 |
1.835 |
1.002 |
||||||||
|
Max. reading |
0.205 |
1.806 |
0.019 |
0.015 |
0.242 |
1.835 |
2.650 |
||||||||
|
Range |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
1.648 |
||||||||
|
Result |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
