Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T
Supply Ability:	Satisfy your demand

Item:	Flat Enameled Copper Wire With Thermal Rating 180 - 220	Width:	0.5mm
Product Name:	Flat Enameled Copper Wire With Thermal Rating 180 - 220	Product Category:	Rectangular Copper Wire
Applications:	Audio	Thickness:	0.03mm
Material:	Copper	Key Word:	Flat Enameled Copper Wire With Thermal Rating 180 - 220
Highlight:	Flat Enameled Copper Wire , Thermal Rating Enameled Copper Wire , 220 Enameled Copper Wire

Item		Conductor dimension		Unilateral insulation thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		Thickness	Width	Thickness	Width	Thickness	Width
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.030	0.500	0.005	0.039	0.039	0.510
	Max	0.034	0.0520	0.006	0.043	0.043	0.530		1398
	Min	0.091	1.940	0.010	0.010	0.035	0.490	0.500	989
No. 1		0.104	1.992	0.020	0.013	0.038	0.513	0.965	1164
No. 2								0.725
No. 3								0.852
No. 4								0.632
No. 5								0.864
Ave		0.030	0.501	0.004	0.006	0.038	0.513	0.808
NO of reading		1	1	1	1	1	1	5
Min. reading		0.030	0.501	0.004	0.006	0.038	0.513	0.632
Max. reading		0.030	0.501	0.004	0.006	0.038	0.513	0.965
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.333
Result		OK	OK	OK	OK	OK	OK	OK	OK

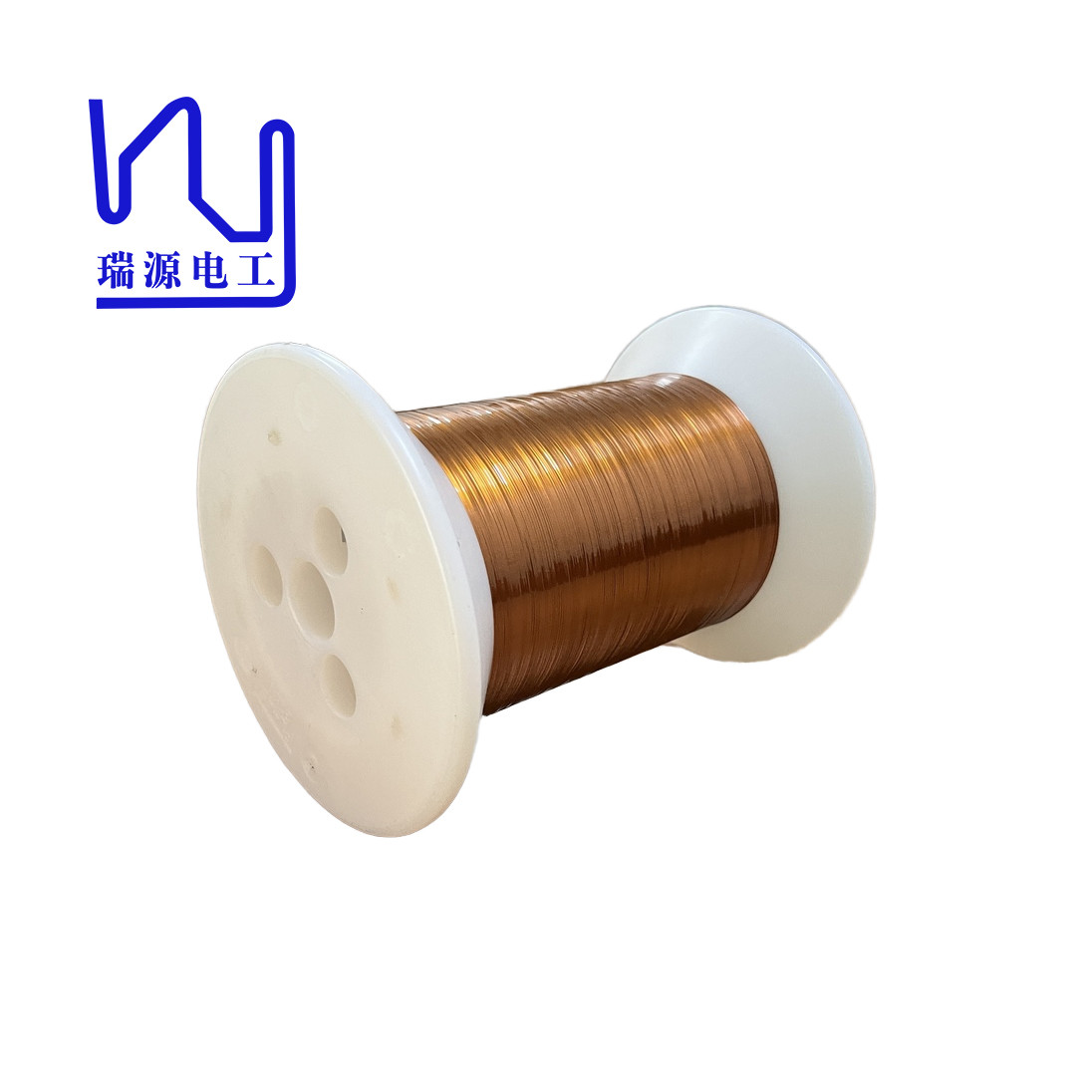

Flat Enameled Copper Wire With Thermal Rating 180 - 220

Flat Enameled Copper Wire
