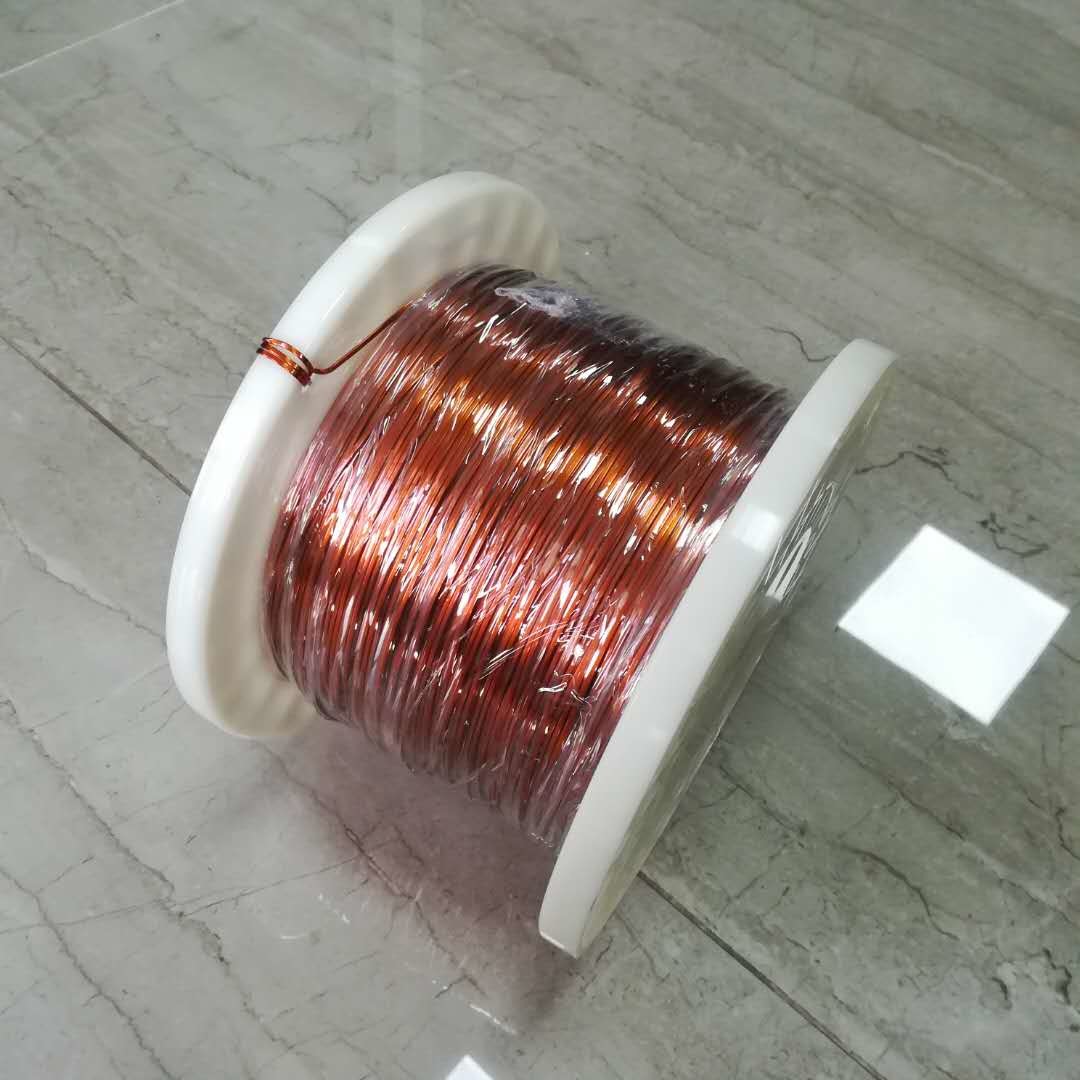

High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Class 220
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Item: Customizable Flat Wire Class 220 1.5mm X 5.0mm Rectangular Enameled Copper Wire Width: 5.0mm
Product Name: High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire Product Category: Rectangular Copper Wire
Applications: Vehicles Thickness: 1.5mm
Material: Copper Key Word: High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire

Product Description

High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Flat Wire

Enameled flat copper wire is widely used in industrial fields, especially in motor and transformer windings.

In electric motors, wires are critical to creating the electromagnetic field that drives the motor's operation. Its high temperature resistance ensures that it can handle the heat generated during operation without degrading.

Likewise, in transformers, the efficiency and durability of wires are critical to maintaining performance and reliability. The ability to withstand high temperatures makes it ideal for applications where heat build-up is a concern, ensuring equipment operates smoothly and efficiently.

Model   Size(mm)

Conductor

Dimension(mm)

Thickness of single insulation(mm) Overall Dimension(mm) Max. Conductor Resistance 20(Ω/km)            Breakdown voltage(kv)

Pinhole
(pcs/m)

Elongation
(%)

Soderability
Width Tolerance Thickness Tolerance Width Thickness
SFT-AIW 1.50x5.00


5.000

±0.06 1.500 ±0.03 0.025±0.015 Max.5.1 Max.1.58 2.960 0.7 Min 3Max. 30 Min. 350
