| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | Customizable Flat Wire Class 220 1.5mm X 5.0mm Rectangular Enameled Copper Wire | Width: | 5.0mm |
|---|---|---|---|
| Product Name: | Customizable Flat Wire Class 220 1.5mm X 5.0mm Rectangular Enameled Copper Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Vehicles | Thickness: | 1.5mm |
| Material: | Copper | Key Word: | Customizable Flat Wire Class 220 1.5mm X 5.0mm Rectangular Enameled Copper Wire |
| Highlight: | Class 220 Rectangular Enameled Copper Wire,Customizable Rectangular Enameled Copper Wire,Flat rectangular enameled copper wire |
||

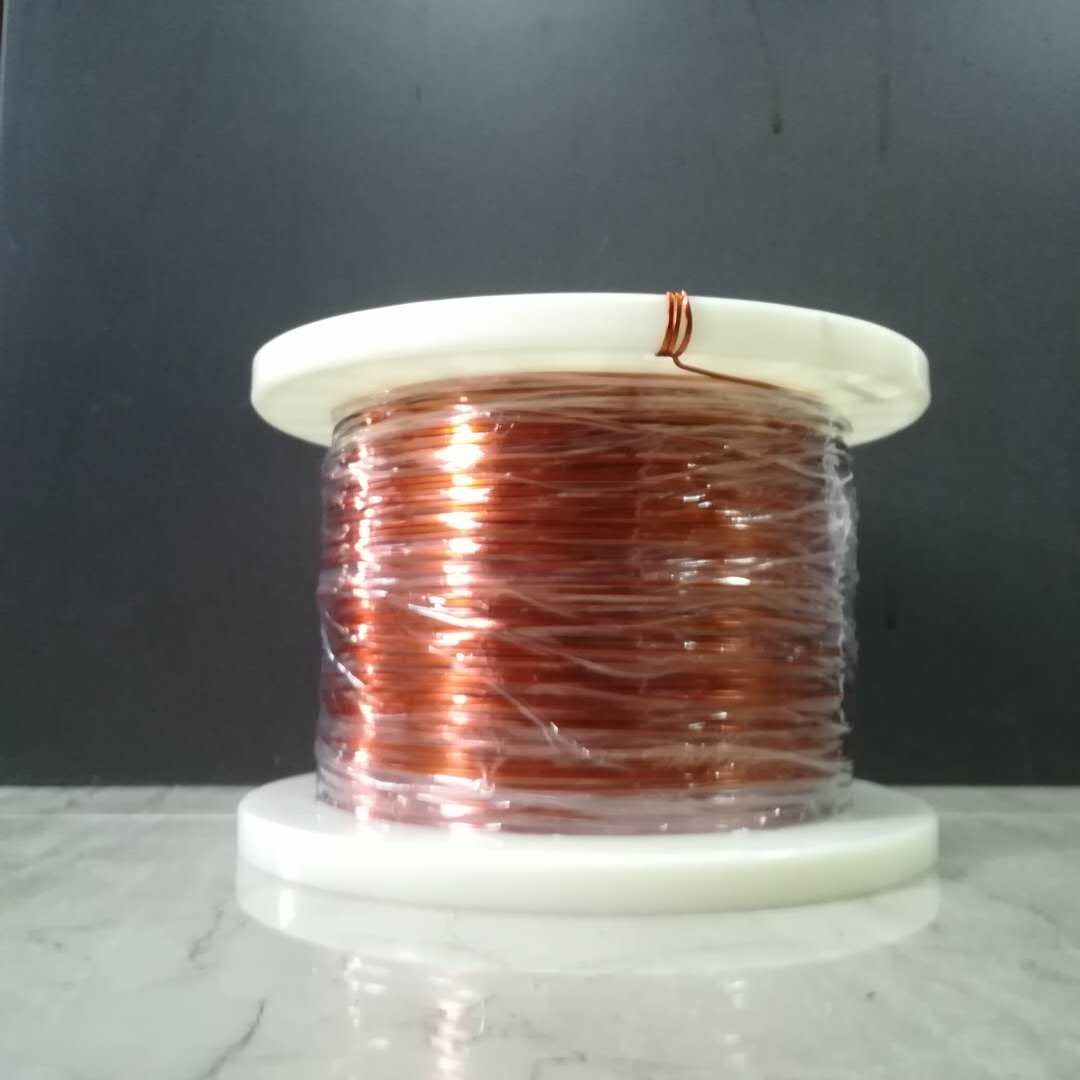

Customizable Flat Wire Class 220 1.5mm x 5.0mm Rectangular Enameled Copper Wire
One of the main advantages of enameled flat copper wire is its excellent electrical conductivity. Copper is known for its excellent ability to conduct electricity, and when combined with the insulating properties of enamel, it can create wires that are both efficient and reliable. This efficiency reduces energy losses, making it an environmentally friendly choice for a variety of applications. Additionally, the flat design allows for better heat dissipation, which is critical in high-performance environments where overheating can cause failure. The durability of the enamel coating also means the wires can withstand mechanical stress, ensuring longevity and reducing the need for frequent replacement.
| Model | Size(mm) |
Conductor Dimension(mm) |
Thickness of single insulation(mm) | Overall Dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) |
Pinhole |
Elongation |
Soderability | ||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | ||||||||||
| SFT-AIW | 1.50x5.00 |
|
±0.06 | 1.500 | ±0.03 | 0.025±0.015 | Max.5.1 | Max.1.58 | 2.960 | 0.7 Min | 3Max. | 30 Min. | 350 ℃ | ||
