| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | Class 220 5.0mmx1.5mm High Temperature Rectangular Enameled Copper Wire For Motor Windings | Width: | 5.0mm |
|---|---|---|---|
| Product Name: | Class 220 5.0mmx1.5mm High Temperature Rectangular Enameled Copper Wire For Motor Windings | Product Category: | Rectangular Copper Wire |
| Applications: | Vehicles | Thickness: | 1.5mm |
| Material: | Copper | Key Word: | Class 220 5.0mmx1.5mm High Temperature Rectangular Enameled Copper Wire For Motor Windings |
| Highlight: | 5.0mmx1.5mm Rectangular Enameled Copper Wire,High Temperature Rectangular Enameled Copper Wire,Motor Windings Rectangular Enameled Copper Wire |
||

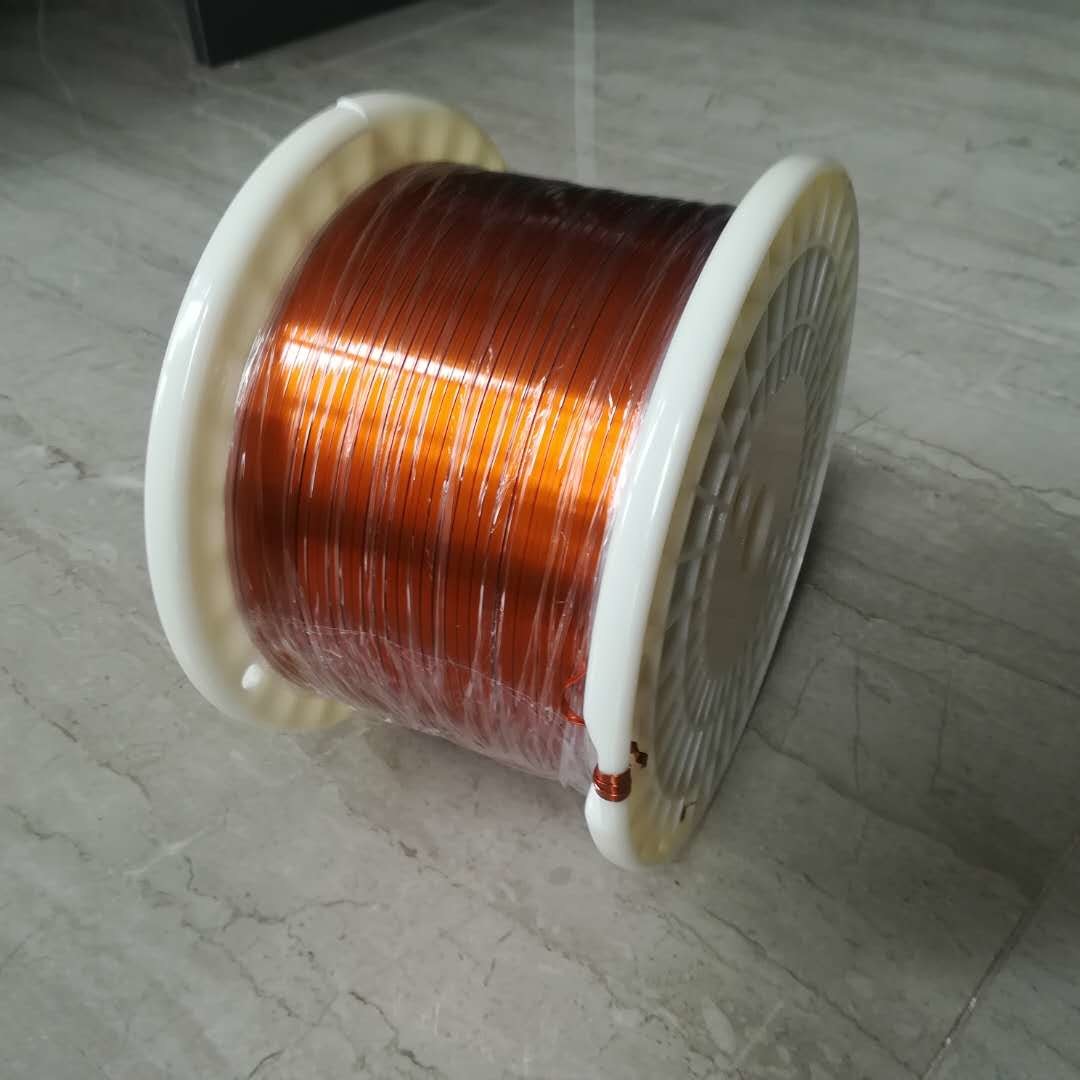

Class 220 5.0mmx1.5mm High Temperature Rectangular Enameled Copper Wire For Motor Windings
Enameled flat copper wire is distinguished by its unique structure, which combines the excellent conductivity of copper with a strong enamel coating. This coating not only enhances the electrical insulation properties of the wire, but also provides a protective barrier against environmental factors such as moisture and corrosion. The wire's flat design allows for efficient use of space, making it ideal for applications where traditional round wires are less efficient. High temperature resistance of 220 degrees Celsius ensures the wire can operate in harsh environments without affecting its integrity or performance.
| Model | Size(mm) | Conductor Dimension(mm) | Thickness of single insulation(mm) | Overall Dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) | Pinhole | Elongation | Soderability | ||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | ||||||||||
| SFT-AIW | 1.50x5.00 | | ±0.06 | 1.500 | ±0.03 | 0.025±0.015 | Max.5.1 | Max.1.58 | 2.960 | 0.7 Min | 3Max. | 30 Min. | 350 ℃ | ||
