| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | Class 220 5.0mmx1.5mm Rectangular Magnet Wire For Vehicles | Width: | 5.0mm |
|---|---|---|---|
| Product Name: | Class 220 5.0mmx1.5mm Rectangular Magnet Wire For Vehicles | Product Category: | Rectangular Copper Wire |
| Applications: | Vehicles | Thickness: | 1.5mm |
| Material: | Copper | Key Word: | Class 220 5.0mmx1.5mm Rectangular Magnet Wire For Vehicles |
| Highlight: | Class 220 Rectangular Magnet Wire,5.0mmx1.5mm Rectangular Magnet Wire,Vehicles Rectangular Magnet Wire |
||

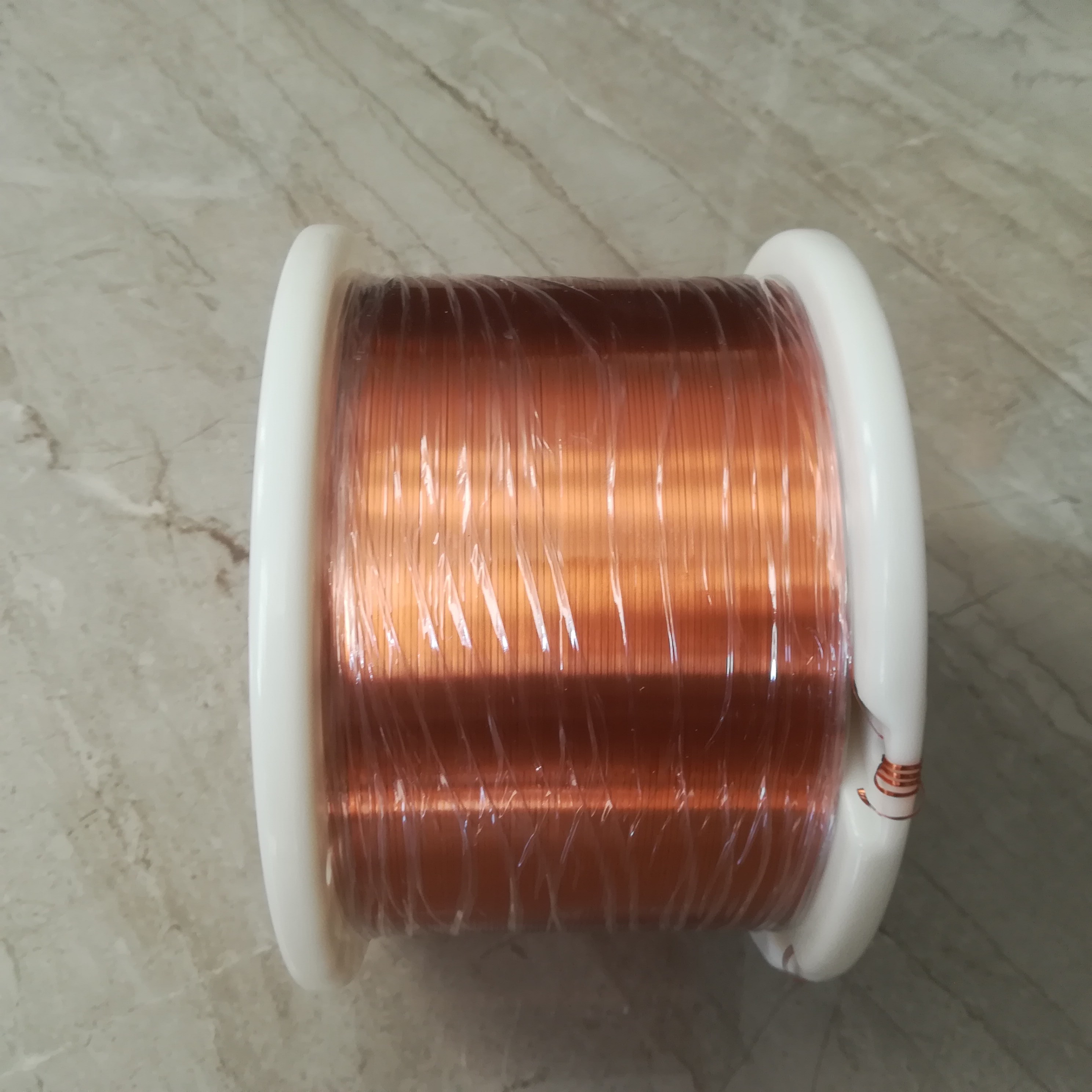

Class 220 5.0mmx1.5mm Rectangular Magnet Wire for Vehicles
In the ever-evolving field of industrial applications, the need for reliable, efficient materials is crucial. Among them, high-temperature enameled flat copper wire stands out as the best choice for various fields such as motor and transformer windings and automotive applications. With an exceptional temperature resistance level of 220 degrees Celsius, this wire is able to withstand extreme conditions while maintaining optimal performance. This introduction will delve into the characteristics, advantages and diverse applications of enameled flat copper wire, highlighting its significance in modern industry.
| Model | Size(mm) | Conductor Dimension(mm) | Thickness of single insulation(mm) | Overall Dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) | Pinhole | Elongation | Soderability | ||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | ||||||||||
| SFT-AIW | 1.50x5.00 | | ±0.06 | 1.500 | ±0.03 | 0.025±0.015 | Max.5.1 | Max.1.58 | 2.960 | 0.7 Min | 3Max. | 30 Min. | 350 ℃ | ||
