| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | Stock 0.55mmx0.2mm Rectangular Enameled Copper WireManufacturer Self-bonding 0.55mm Class 220 Rectangular Magnet Wire For Filter Inductor | Width: | 0.55mm |
|---|---|---|---|
| Product Name: | Manufacturer Self-bonding 0.55mm Class 220 Rectangular Magnet Wire For Filter Inductor | Product Category: | Rectangular Copper Wire |
| Applications: | High-end Electronic Transformers, High-power Inductors, Micro Motors, Drive Motors, Mobile Phones, New Energy Vehicles, And Other Industries | Thickness: | 0.2mm |
| Material: | Copper | Key Word: | Manufacturer Self-bonding 0.55mm Class 220 Rectangular Magnet Wire For Filter Inductor |
| High Light: | Class 220 Rectangular Magnet Wire,0.55mm Rectangular Magnet Wire,Filter Inductor Rectangular Magnet Wire |
||

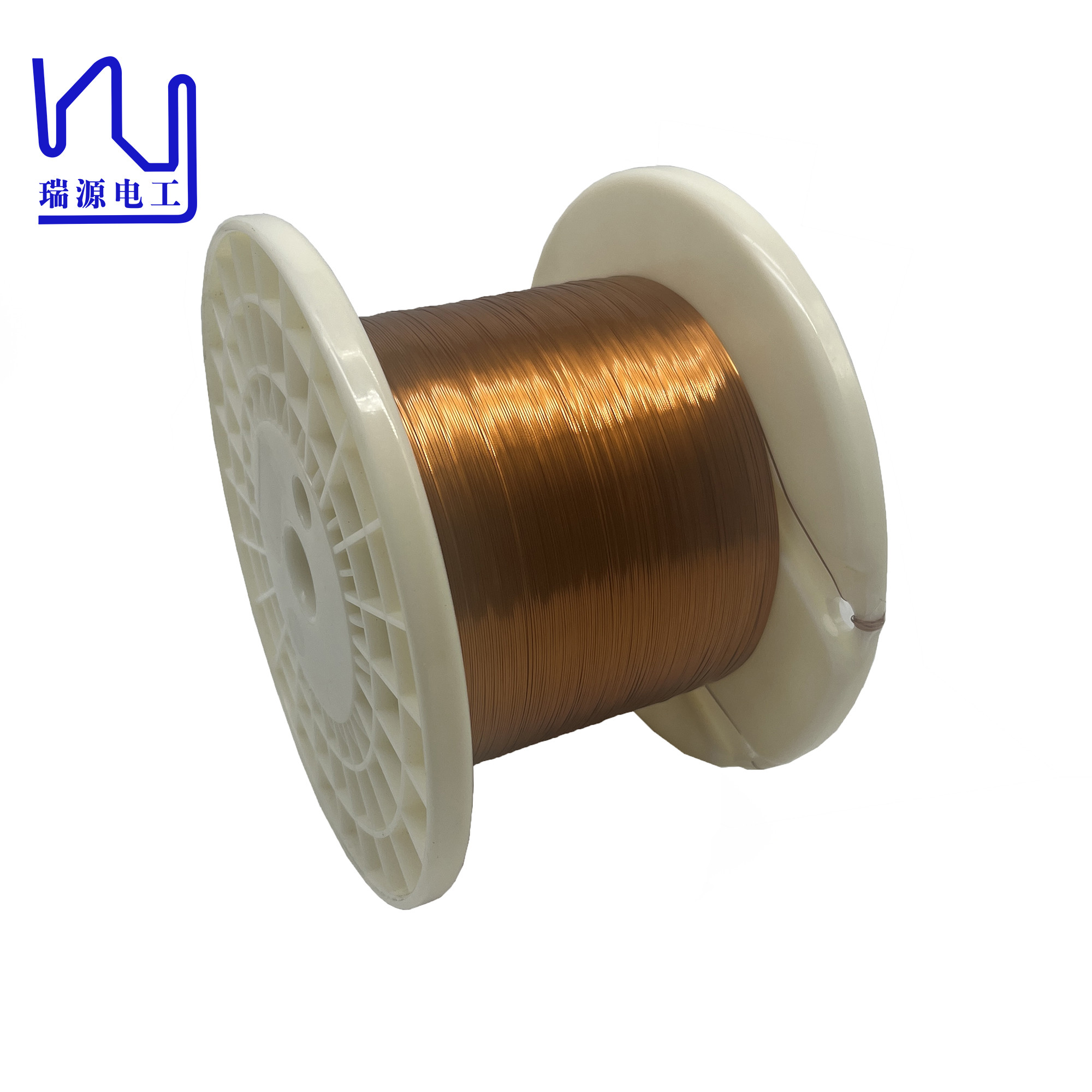

Manufacturer Self-bonding 0.55mm Class 220 Rectangular Magnet Wire for Filter Inductor
The advantages of our self-adhesive enameled flat wires extend beyond their physical properties. Its customization options allow solutions to be tailored to meet specific project requirements, ensuring you receive a product that exactly matches your needs. Additionally, the minimum order quantity makes it suitable for businesses ranging from small-scale operations to large enterprises, allowing you to benefit from this advanced cabling solution without the limitations of high-volume orders.
|
Manufacturer Self-bonding 0.55mm Class 220 Rectangular Magnet Wire for Filter Inductor |
||||||||||
|
Item |
Conductor dimension |
Unilateral sef-adhesive thickness |
Unilateral insulation layer thickness |
O.D. |
Resistance |
Dielectric strength |
||||
|
Unit |
Thickness mm |
Width mm |
mm |
Thickness mm |
Width mm |
Thickness mm |
Width mm |
Ω/km |
kv |
|
|
Spec |
AVE |
0.2 |
0.55 |
/ |
0.025 |
0.025 |
|
|
181.91 |
|
|
MAX |
0.205 |
0.580 |
/ |
0.040 |
0.040 |
0.260 |
0.66 |
|
|
|
|
MIN |
0.195 |
0.520 |
0.002 |
0.010 |
0.010 |
|
|
OK |
0.7 |
|
|
No.1 |
|
0.196 |
0.546 |
0.002 |
0.025 |
0.025 |
0.249 |
0.599 |
3.620 |
|
|
No.2 |
|
0.195 |
0.54 7 |
0.002 |
0.026 |
0.026 |
0.250 |
0.600 |
2.632 |
|
|
No.3 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.2 |
|
|
No.4 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.063 |
|
|
No.5 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.03 |
|
|
No.6 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.2 |
|
|
No.7 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.35 |
|
|
No.8 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.34 |
|
|
No.9 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.021 |
|
|
No.10 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.64 |
|
|
AVG |
|
0.196 |
0.547 |
0.002 |
0.025 |
|
|
|
2.71 |
|
|
No.of reading |
|
2 |
2 |
2 |
2 |
|
|
|
10 |
|
|
Min. reading |
|
0.195 |
0.546 |
0.002 |
0.025 |
|
|
|
2.06 |
|
|
Max. reading |
|
0.195 |
0.547 |
0.002 |
0.026 |
|
|
|
3.62 |
|
|
Range |
|
0.001 |
0.001 |
0.000 |
0.001 |
|
|
|
1.59 |
|
|
Result |
|
OK |
ok |
Ok |
Ok |
|
|
|
ok |
|
