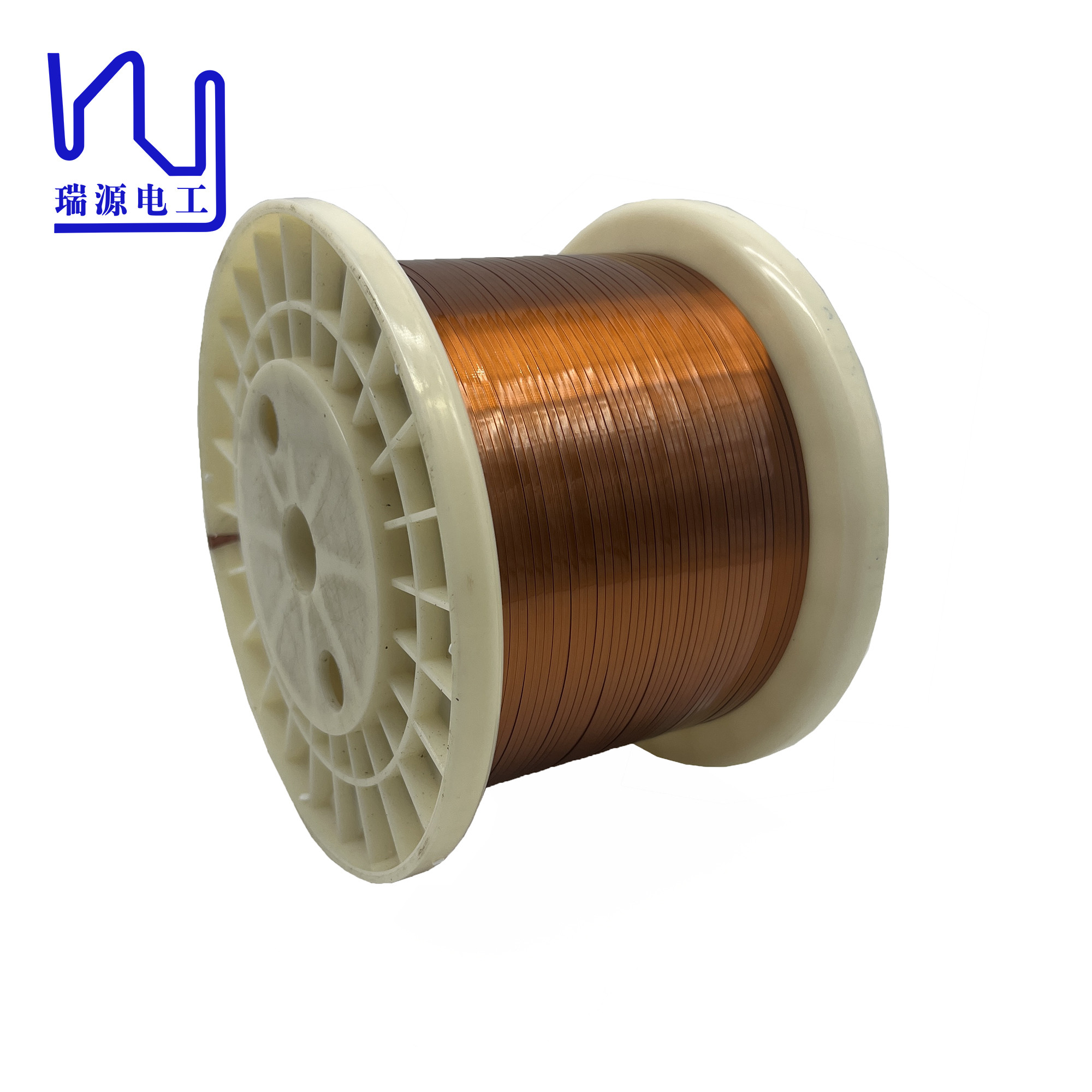

AIW 220 Temperature Resistance Super Thin Rectangular Enameled Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Test Report Number Of Readings:	5	Key Word:	AIW 220 Temperature Resistance Super Thin Rectangular Enameled Copper Wire
Conductor Dimension (Thickness):	0.1mm	Unilateral Insulation Layer Thickness (Thickness):	0.025mm
Conductor Dimension (Width):	2mm	Applications:	High-end Electronic Transformers, High-power Inductors, Micro Motors, Drive Motors, Mobile Phones, New Energy Vehicles, And Other Industries
Material:	Copper	Thermal Grade:	220
Highlight:	AIW Rectangular Enameled Copper Wire

Product Description

AIW 220 Temperature Resistance Super Thin Rectangular Enameled Copper Wire

The customized super thin enameled copper wire is a versatile and essential component for a wide range of high-end electronic applications. With its super thin design, high-quality enamel coating, and exceptional thermal properties, this wire is built to deliver the performance and reliability that our customers demand. From high-end electronic transformers to new energy vehicles, our enameled flat wire is the perfect choice for applications where space is limited and performance is critical.

TEST REPORT
Model		SFT-AIW					Date
Size(mm):		0.100 × 2.000					Lot
Item		Conductor dimension		Unilateral insulation layer thickness		Overall dimension		Breakdown
Item		Thickness	Width	Thickness	Width	Thickness	Width	voltage
Unit		mm	mm	mm	mm	mm	mm	kv
SPEC	Ave	0.1	2	0.025	0.025
	Max	0.109	2.06	0.04	0.04	0.15	2.1
	Min	0.091	1.94	0.01	0.01			0.7
No. 1		0.104	2.003	0.021	0.012	0.146	2.027	1.063
No. 2								1.085
No. 3								1.132
No. 4								1.041
No. 5								1.015
Avg		0.104	2.003	0.021	0.012	0.146	2.027	1.067
Number of reading		1	1	1	1	1	1	5
Min. reading		0.104	2.003	0.021	0.012	0.146	2.027	1.015
Max. reading		0.104	2.003	0.021	0.012	0.146	2.027	1.132
Range		0	0	0	0	0	0	0.117
