| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Applications: | High-end Electronic Transformers, High-power Inductors, Micro Motors, Drive Motors, Mobile Phones, New Energy Vehicles, And Other Industries | Product: | 2mm Width Rectangular Copper Wire For Conductor Dimension Thickness 0.1mm In A Variety Of Uses |
|---|---|---|---|
| Shape: | Rectangular | Key Word: | 2mm Width Rectangular Copper Wire For Conductor Dimension Thickness 0.1mm In A Variety Of Uses |
| Width: | 2mm | Material: | Copper |
| Thickness: | 0.1mm | Product Category: | Rectangular Copper Wire |

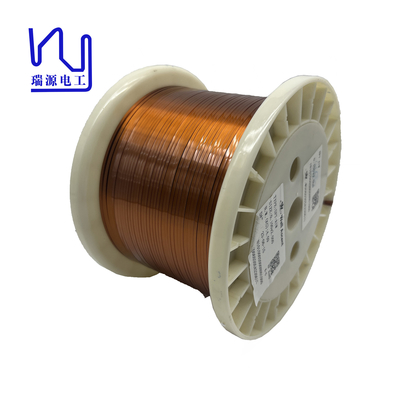

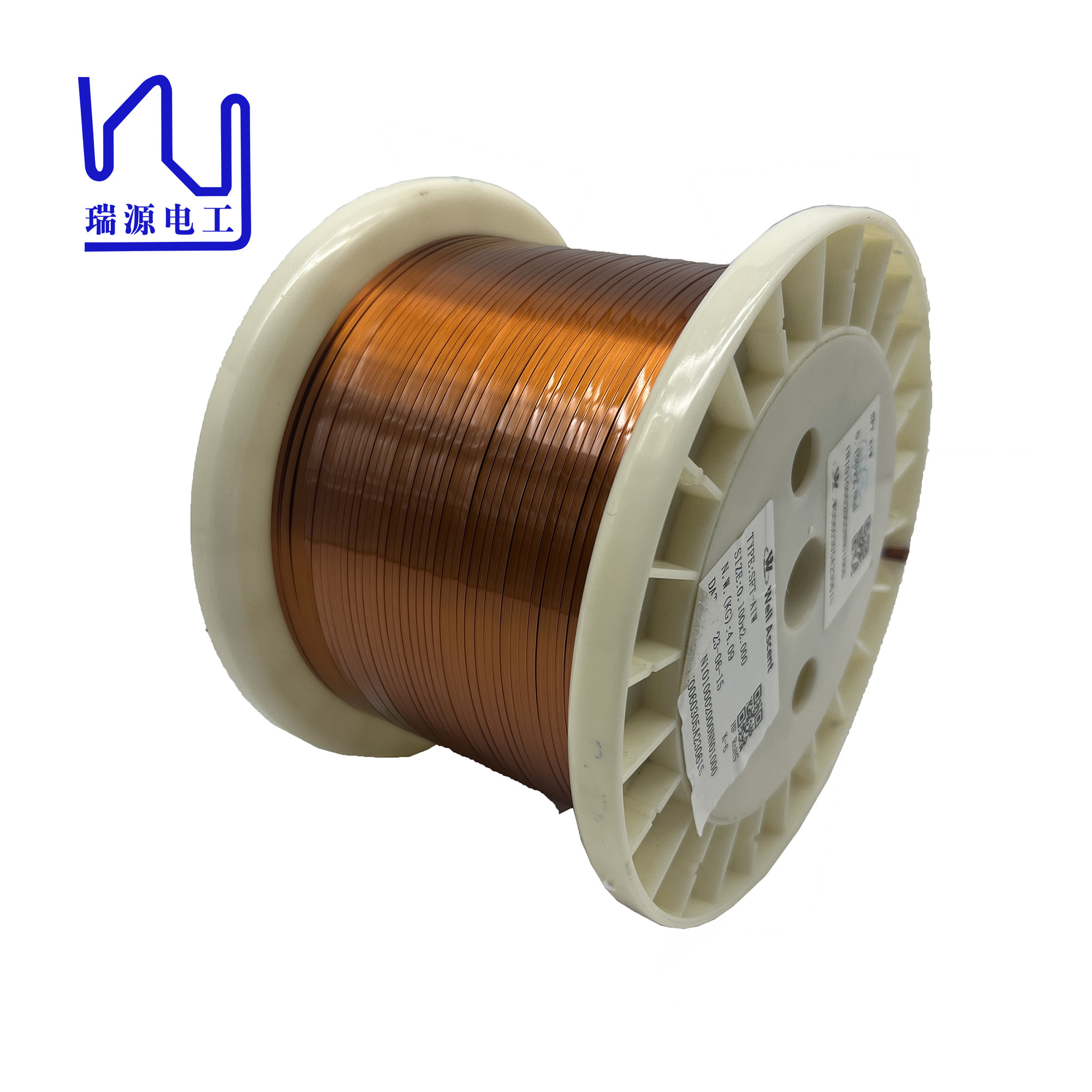

2mm Width Rectangular Copper Wire for Conductor Dimension Thickness 0.1mm in a Variety of Uses
Our customized super thin enameled copper wire, the perfect solution for a wide range of high-end electronic applications. With a width of 2mm and a thickness of 0.1mm, this enameled flat wire is designed to meet the most demanding requirements. Its thermal grade of 220 ensures exceptional performance even in high-temperature environments. This product is widely used in high-end electronic transformers, high-power inductors, micro motors, drive motors, mobile phones, new energy vehicles, and other industries, making it a versatile and essential component for various applications.
|
TEST REPORT |
||||||||
|
Model |
SFT-AIW |
Date |
||||||
|
Size(mm): |
0.100 × 2.000 |
Lot |
||||||
|
Item |
Conductor
dimension |
Unilateral insulation layer thickness |
Overall dimension |
Breakdown |
||||
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
voltage |
||
|
Unit |
|
mm |
mm |
mm |
mm |
mm |
mm |
kv |
|
SPEC |
Ave |
0.1 |
2 |
0.025 |
0.025 |
|
|
|
|
Max |
0.109 |
2.06 |
0.04 |
0.04 |
0.15 |
2.1 |
|
|
|
Min |
0.091 |
1.94 |
0.01 |
0.01 |
|
|
0.7 |
|
|
No. 1 |
|
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.063 |
|
No. 2 |
|
|
|
|
|
|
1.085 |
|
|
No. 3 |
|
|
|
|
|
|
1.132 |
|
|
No. 4 |
|
|
|
|
|
|
1.041 |
|
|
No. 5 |
|
|
|
|
|
|
1.015 |
|
|
Avg |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.067 |
|
|
Number of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
|
|
Min. reading |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.015 |
|
|
Max. reading |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.132 |
|
|
Range |
0 |
0 |
0 |
0 |
0 |
0 |
0.117 |
|
