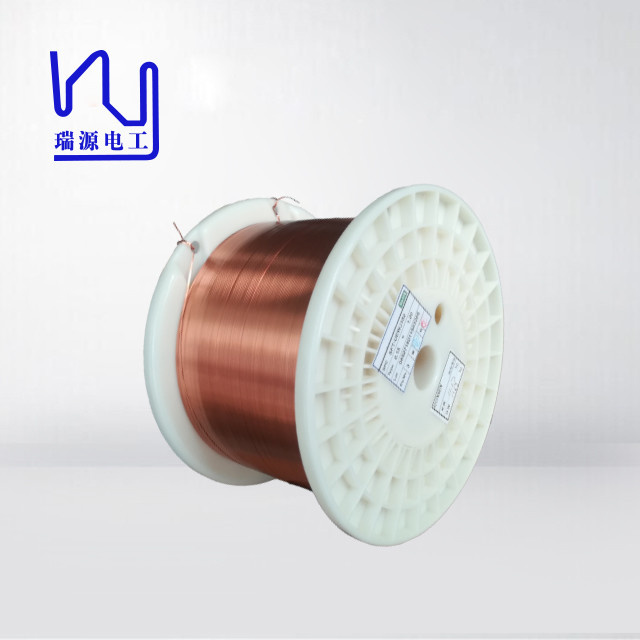

220C Temperature Resistant Rectangular Copper Wire With 3.5mm Conductor Width

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Application:	Motor/Transformer	Thickness:	0.4mm
Material:	Copper	Overall Dimension (Width):	3.5mm
Conductor Type:	Solid	Overall Dimension (Thickness):	0.4mm
Dielectric Breakdown Voltage:	2.310kv
Highlight:	3.5mm Rectangular Copper Wire , 220C Rectangular Copper Wire , 3.5mm Conductor Width Rectangular Copper Wire

Product Description

220C Temperature Resistant Rectangular Copper Wire with 3.5mm Conductor Width

our custom flat enameled copper wires are used in a variety of applications including aerospace, renewable energy and industrial machinery. We are able to produce weldable flat wire with a heat rating of 180 degrees to meet the needs of a variety of industries where reliability, efficiency and performance are critical.

Item		conductor dimension		Unilateral insulation layer thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
Item		Thickness	Width	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Conductor resistance
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.400	3.500	0.025	0.025
	Max	0.409	3.560	0.040	0.040	0.450	3.600		13.510
	Min	0.391	3.440	0.010	0.010			0.700
No. 1		0.397	3.499	0.022	0.021	0.441	3.541	2.310	12.720
No. 2								1.540
No. 3								1.632
No. 4								1.324
No. 5								2.141
Avg		0.397	3.499	0.022	0.021	0.441	3.541	1.789
No. of reading		1	1	1	1	1	1	5
Min. reading		0.397	3.499	0.022	0.021	0.441	3.541	1.324
Max. reading		0.397	3.499	0.022	0.021	0.441	3.541	2.310
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.986
Result		OK	OK	OK	OK	OK	OK	OK	OK
