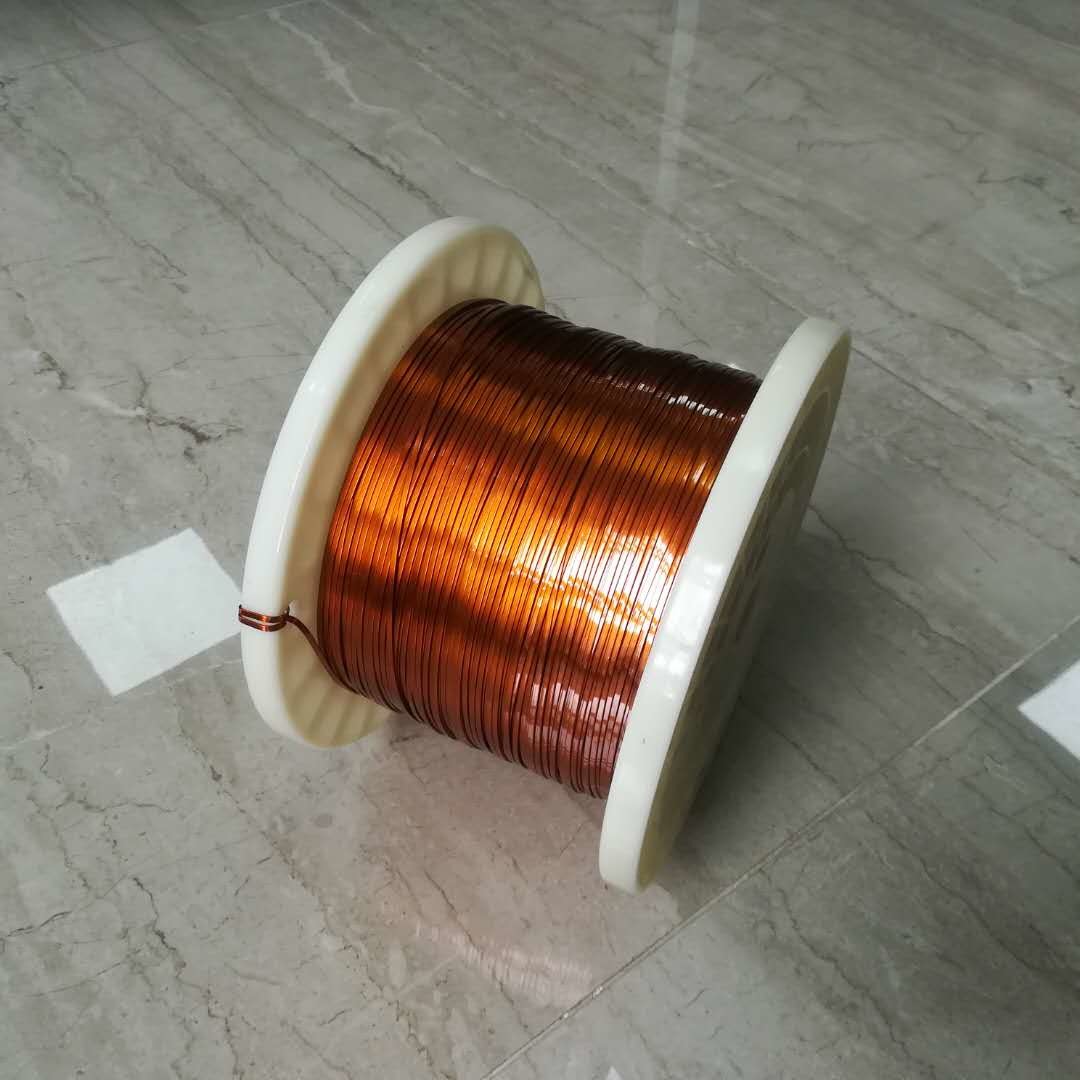

0.4mm Thickness Rectangular Copper Wire 220 Grade Flat Copper Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Class 220

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Overall Dimension (Thickness):	0.4mm	Shape:	Rectangular
Dielectric Breakdown Voltage:	2.310kv	Key Word:	0.4mm Thickness Rectangular Copper Wire 220 Grade Flat Copper Wire
Material:	Copper	Product Name:	0.4mm Thickness Rectangular Copper Wire 220 Grade Flat Copper Wire
Type:	Insulated	Certificates:	ROHS/UL/SGS/ISO9001:2008
Width:	3.5mm
Highlight:	Flat Rectangular Copper Wire , 220 Grade Rectangular Copper Wire , 0.4mm Rectangular Copper Wire

Product Description

0.4mm Thickness Rectangular Copper Wire 220 Grade Flat Copper Wire

The custom flat wires are a testament to our commitment to providing innovative solutions that drive technological advancement across industries. With their exceptional performance and versatility, our flat wires continue to drive advancements in motors, transformers, electric vehicles and more, becoming the cornerstone of enhanced performance and reliability.

Item		conductor dimension		Unilateral insulation layer thickness		Overall dimension		Dielectric breakdown voltage	Conductor resistance
		Thickness	Width	Thickness	Width	Thickness	Width
Unit		mm	mm	mm	mm	mm	mm	kv	Ω/km 20℃
SPEC	AVE	0.400	3.500	0.025	0.025
	Max	0.409	3.560	0.040	0.040	0.450	3.600		13.510
	Min	0.391	3.440	0.010	0.010			0.700
No. 1		0.397	3.499	0.022	0.021	0.441	3.541	2.310	12.720
No. 2								1.540
No. 3								1.632
No. 4								1.324
No. 5								2.141
Avg		0.397	3.499	0.022	0.021	0.441	3.541	1.789
No. of reading		1	1	1	1	1	1	5
Min. reading		0.397	3.499	0.022	0.021	0.441	3.541	1.324
Max. reading		0.397	3.499	0.022	0.021	0.441	3.541	2.310
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.986
Result		OK	OK	OK	OK	OK	OK	OK	OK
