| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Number Of Strands: | 600 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Copper | Key Word: | USTC/UDTC 0. 10mm Nylon Serving Litz Wire Copper |
| Product Name: | USTC/UDTC 0. 10mm Nylon Serving Litz Wire Copper | ||
| Highlight: | Copper Nylon Serving litz wire,USTC/UDTC Nylon Serving litz wire,USTC custom litz wire |
||

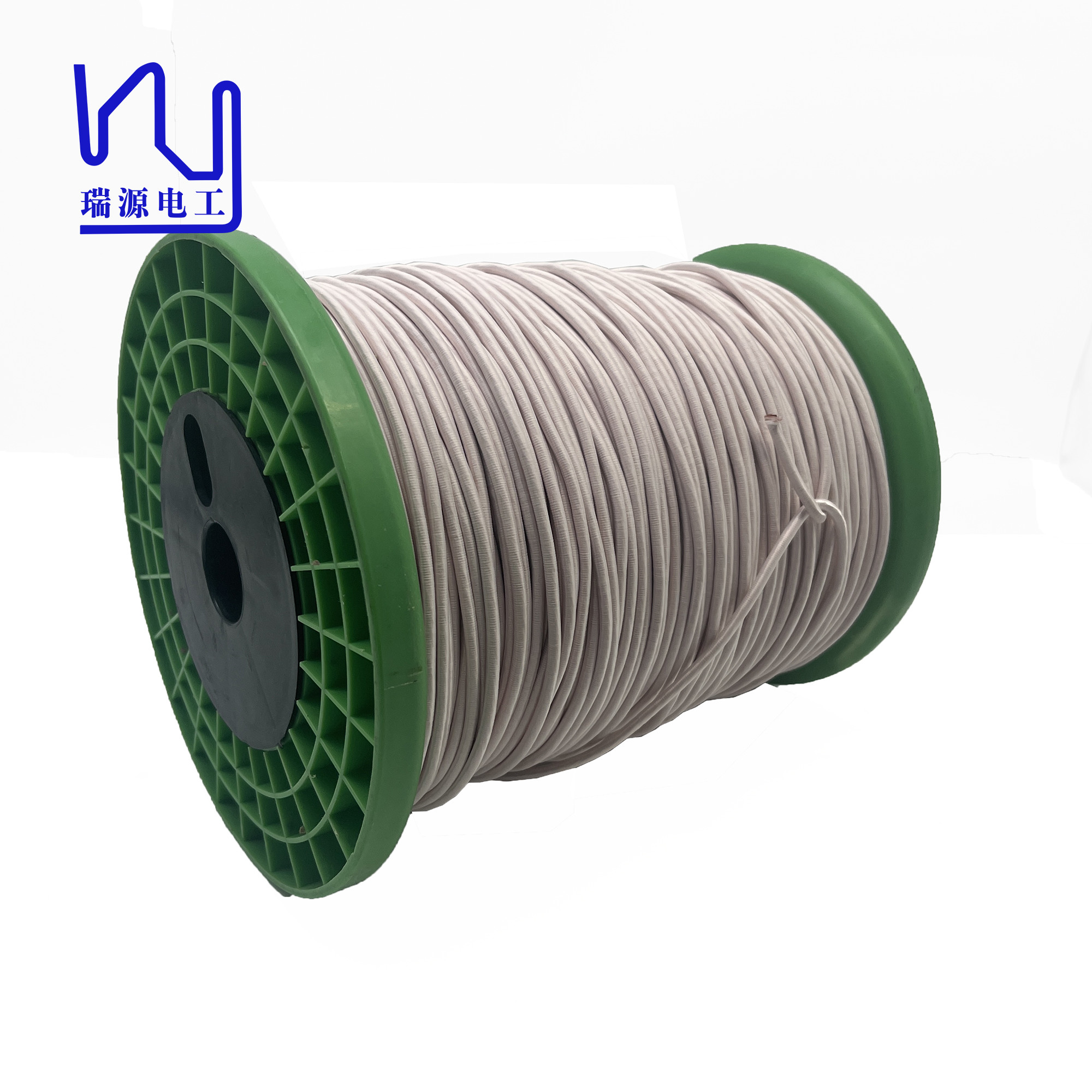

USTC/UDTC 0. 10mm Nylon Serving litz wire Copper
Our commitment to customization means we can meet your specific requirements, offering small batches with MOQ of 20KGIn addition to standard specifications, we can also flexibly customize single wire diameters, with the current minimum size being 0.025mm. Additionally, the strand count can be customized to your exact specifications, ensuring the wire meets your unique requirements. Additionally, we have the capability to produce rectangular nylon served litz wire, providing even more versatility for your industrial applications.
|
Description Conductor diameter* Strand number |
2UDTC-F 0. 10*600 |
|
|
Single wire |
Conductor diameter( mm) | 0.100 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.005 | |
| Maximal overall diameter ( mm) | 0.125 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition |
Strand number (strands ) | 100*6 |
| Pitch(mm) | 65±10 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Nylon |
| Material specs( mm* mm or D) | 300+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness( mm) , mini | 0.05 | |
| Wrapping direction | Z ,S | |
|
Characteristics |
Max O. D (mm) | 3.78 |
| Max pin holes 个/6m | 98 | |
| Max resistance (Ω/Km at20℃) | 3.968 | |
| Mini breakdown voltage (V ) | 1100 | |
