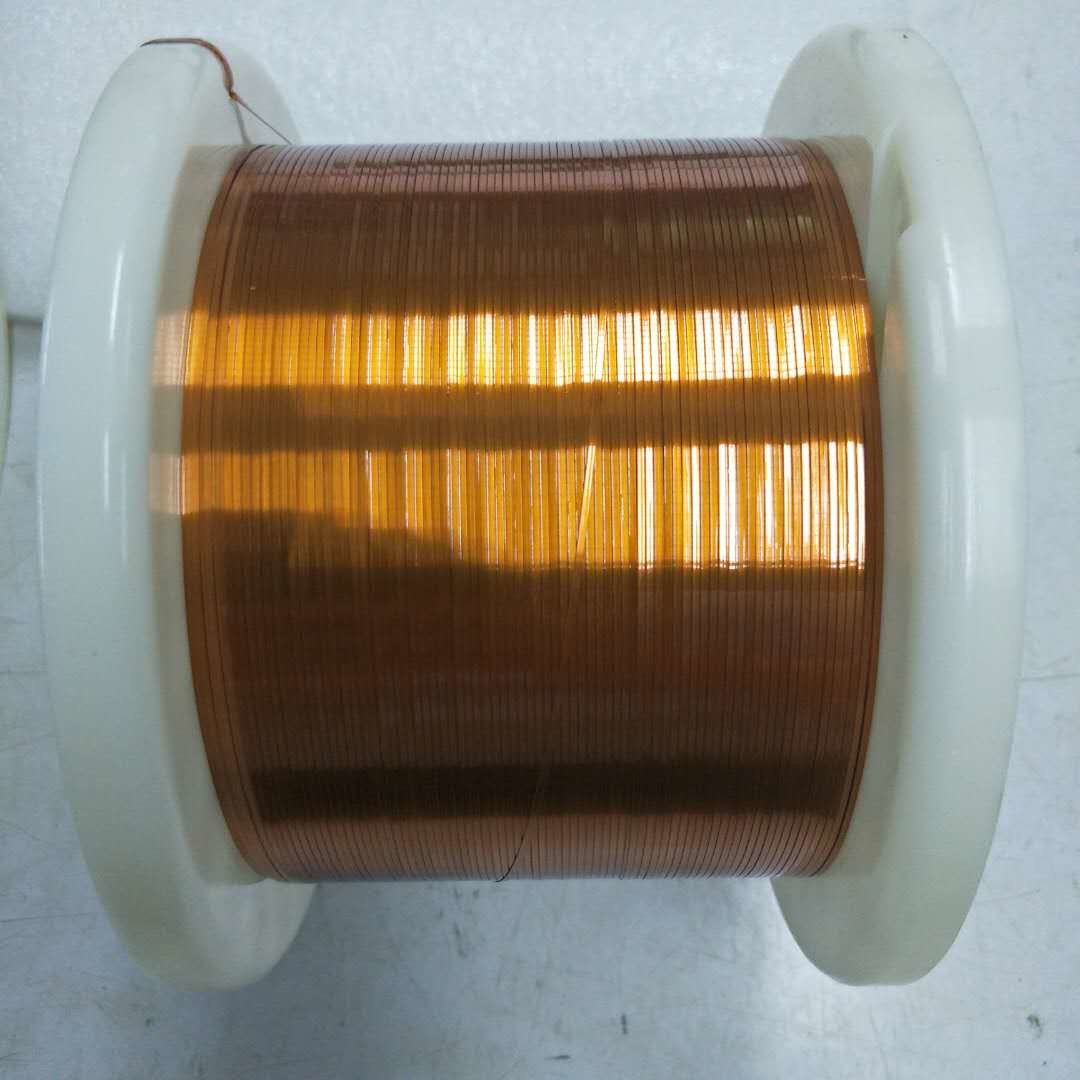

AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: SFT-AIW220
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 100kg/week
Detail Information
Contuctor Type: Solid Material: Copper
Shape: Rectangular Width: 9.0mm
Type: Insulated Temperature: 220℃
Certificates: ROHS/UL/SGS/ISO9001:2008 Product Name: AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive
Key Word: AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive Thickness: 0.7mm
High Light:

8.0mm Enameled Flat Copper Wire

,

9.0mm Enameled Flat Copper Wire

,

Automotive Enameled Flat Copper Wire


Product Description

AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive



The flat shape of the wire provides better heat dissipation compared to round wires. This is particularly significant in applications where high temperatures can be generated, such as in electric motors or transformers. Improved heat dissipation helps prevent overheating and ensures better performance and longevity of the equipment.



The enamel insulation on enameled flat copper wire provides excellent electrical insulation properties. It prevents electrical leakage, short circuits, and prevents the formation of electrical arcs, ensuring safe and reliable operation of the equipment or device.



Key word

  AIW 220 9.0mm 8.0mm Enameled Flat Copper Wire For Automotive

Conductor Dimension(mm)



Thickness of single insulation(mm)

Overall Dimension(mm)

Max. Conductor Resistance 20℃(Ω/km)



Breakdown voltage(kv)

Width

Thickness



Width

Thickness

9.000±0.08

0.700±0.03

0.025±0.015

Max. 9.10

Max.0.78

2.978



0.7 Min
