| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | Min. 2000V | Number Of Strands: | 84 |
|---|---|---|---|
| Jacket: | Real Silk | Theraml Grade: | 155 |
| Key Word: | Custom Green Color Strands Litz Wire Pure Natural Silk Coated Litz Wire For Audio2USTC-F 155 0.2mm X 84 Nylon Serving Copper Litz Wire For High Frequency Transformer Windings | Conductor Material: | Copper |
| Product Name: | 2USTC-F 155 0.2mm X 84 Nylon Serving Copper Litz Wire For High Frequency Transformer Windings | Single Wire: | 0.2mm |
| Highlight: | high frequency copper litz wire,nylon serving copper litz wire,Copper Litz Wire For Transformer Windings |
||

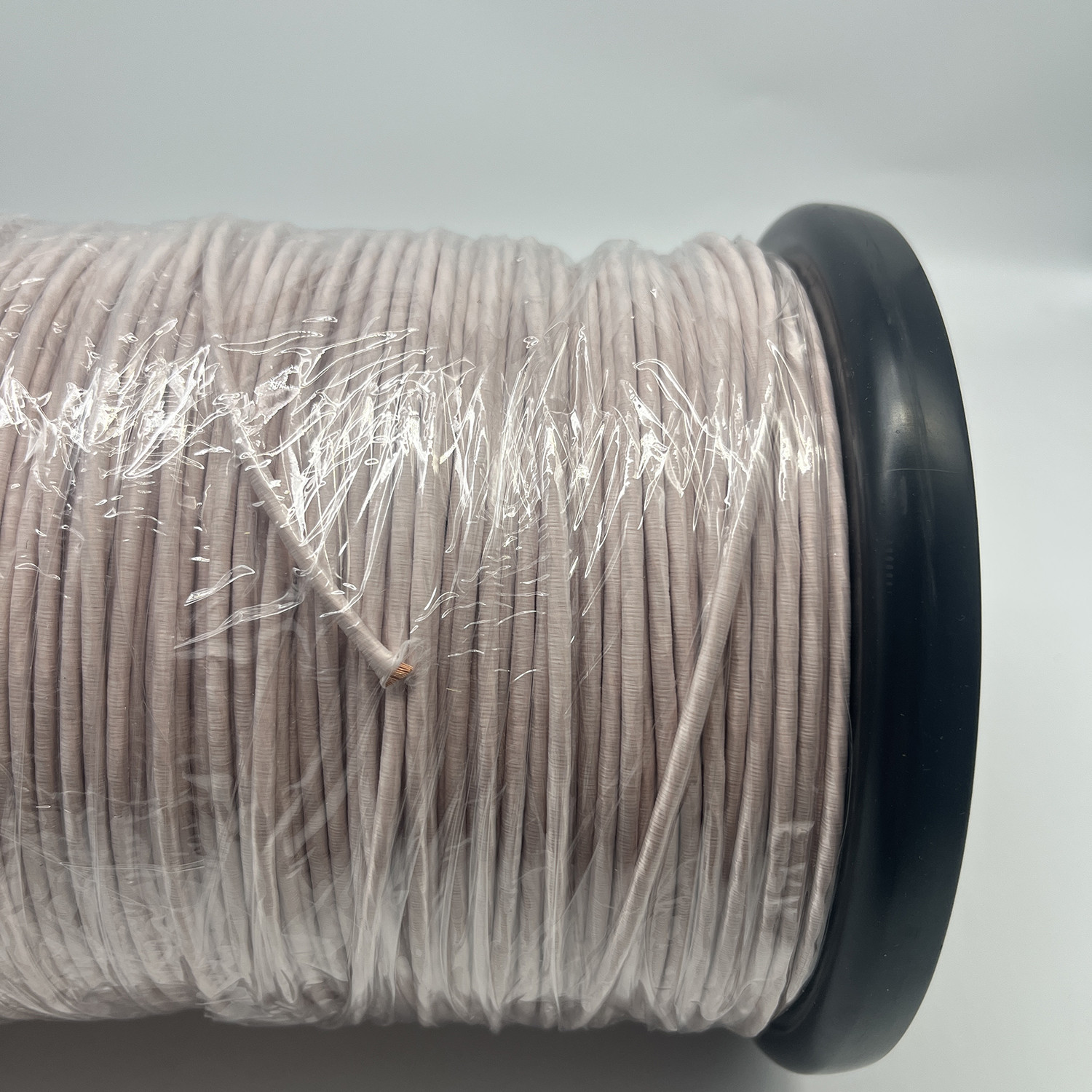

2USTC-F 155 0.2mm x 84 nylon serving copper litz wire for high frequency transformer windings
Nylon Covered Litz Wire, is a special type of wire that offers numerous advantages in high frequency transformer applications. This custom copper litz wire is designed with 0.2mm diameter enameled copper wire, twisted with 84 strands and covered with nylon yarn.
The use of nylon as the covering material enhances the performance and durability of the wire, making it ideal for high frequency transformer applications. Additionally, the flexibility and customization options of nylon served litz wire further contribute to its widespread use in various industries.
| Item | Standard | Test value | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Single wire diameter mm | 0.224-0.246 | 0.225 | 0.227 | 0.228 |
| Conductor Diameter mm | 0.2±0.003 | 0.2 | 0.2 | 0.2 |
| O.D. mm | Max. 2.74 | 2.65 | 2.6 | 2.63 |
| Resistance (20℃) Ω/m | 6.87 | ok | ok | ok |
| Breakdown Voltage V | Min.2000 | 3900 | 3800 | 3700 |
| Pitch mm | 44±5% | 44 | 44 | 44 |
