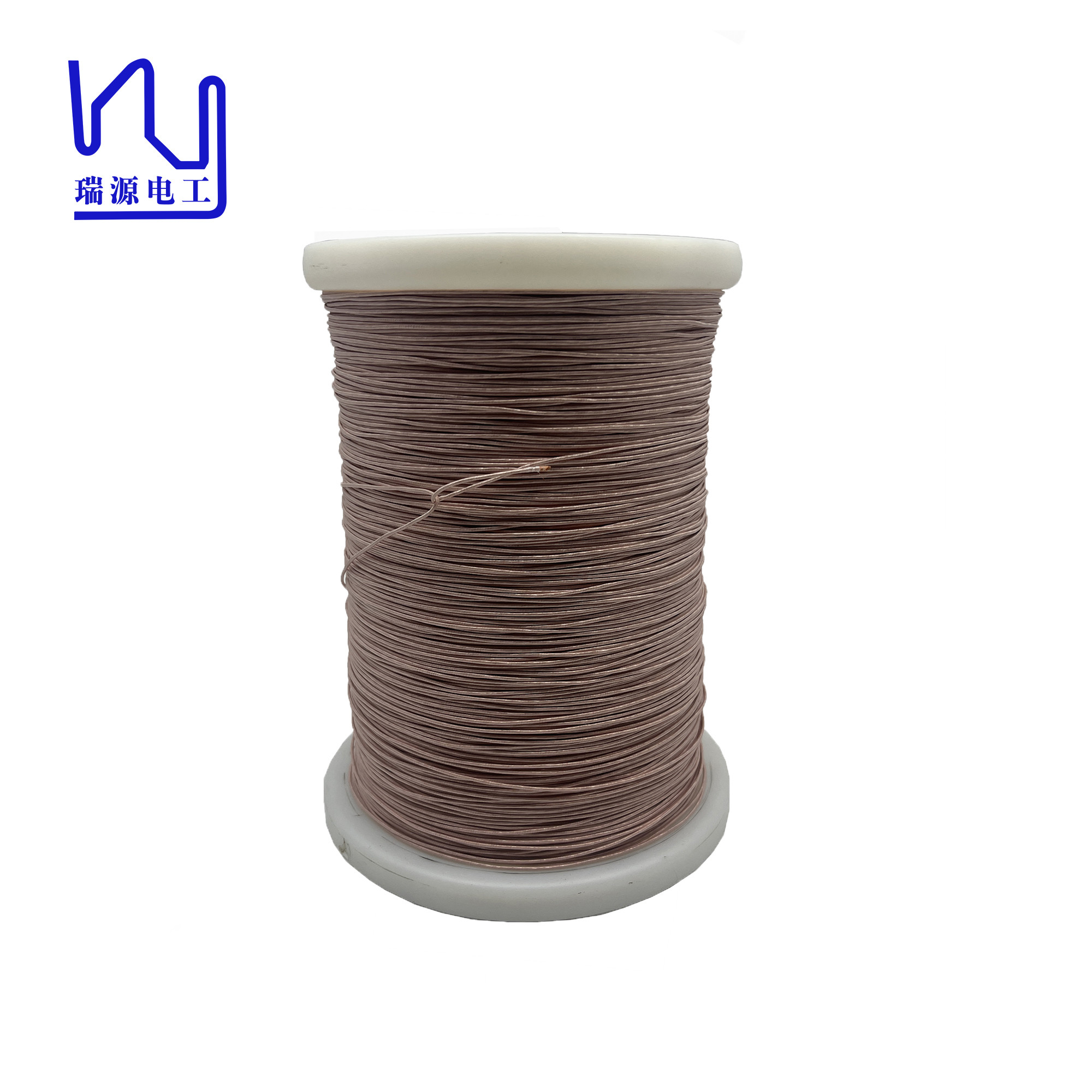

1USTC-F 0.08mm*105 Silk Covered Litz Wire Nylon Serving Copper Conductor

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	USTCF litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	TT/Paypal
Supply Ability:	100kg/week

Get Best Price Contact Now

Detail Information

Breakdown Voltage:	2000V	Number Of Strands:	105
Jacket:	Nylon/polyester/real Silk	Theraml Grade:	155
Key Word:	Copper Ustc Litz Wire 0.05mm Single Wire 1300V For Wireless Charger	Conductor Material:	Copper
Product Name:	Copper Ustc Litz Wire 0.05mm Single Wire 1300V For Wireless Charger	Single Wire:	0.08mm
Highlight:	copper Conductor covered litz wire , 0.08mm*105 covered litz wire , nylon serving covered litz wire

Product Description

1USTC-F 0.08mm*105 Silk covered litz wire nylon serving copper Conductor

Silk covered litz wire is a special type of wire that is widely used in motor and transformer winding fields. This wire is designed to provide exceptional performance and durability, making it ideal for demanding applications.

Product name:	1USTC-F 0.08mm*105 Silk covered litz wire nylon serving copper Conductor
Item	Unit	Technical requests	Sample 1	Sample 2
Conductor Diameter	mm	0.08±0.003	0.078	0.080
Single wire diameter	mm	0.091-0.120	0.098	0.100
O.D.	mm	Max.1.39	1.09	1.21
Resistance (20℃)	Ω/m	Max.0.03595	0.03308	0.03310
Breakdown Voltage	V	Min.2000	5400	4600
Pitch	mm	29±5	ok	ok
No. of strands		105	ok	ok
