| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | 1300V | Single Wire: | 0.05mm |
|---|---|---|---|
| Theraml Grade: | 155 | Conductor Material: | Copper |
| Key Word: | USTC155 Copper Litz Wire 0.05mm Single Wire Silk Covered 1300V Breakdown Voltage | Product Name: | USTC155 Copper Litz Wire 0.05mm Single Wire Silk Covered 1300V Breakdown Voltage |
| Jacket: | Nylon/polyester/real Silk | Number Of Strands: | 60 |

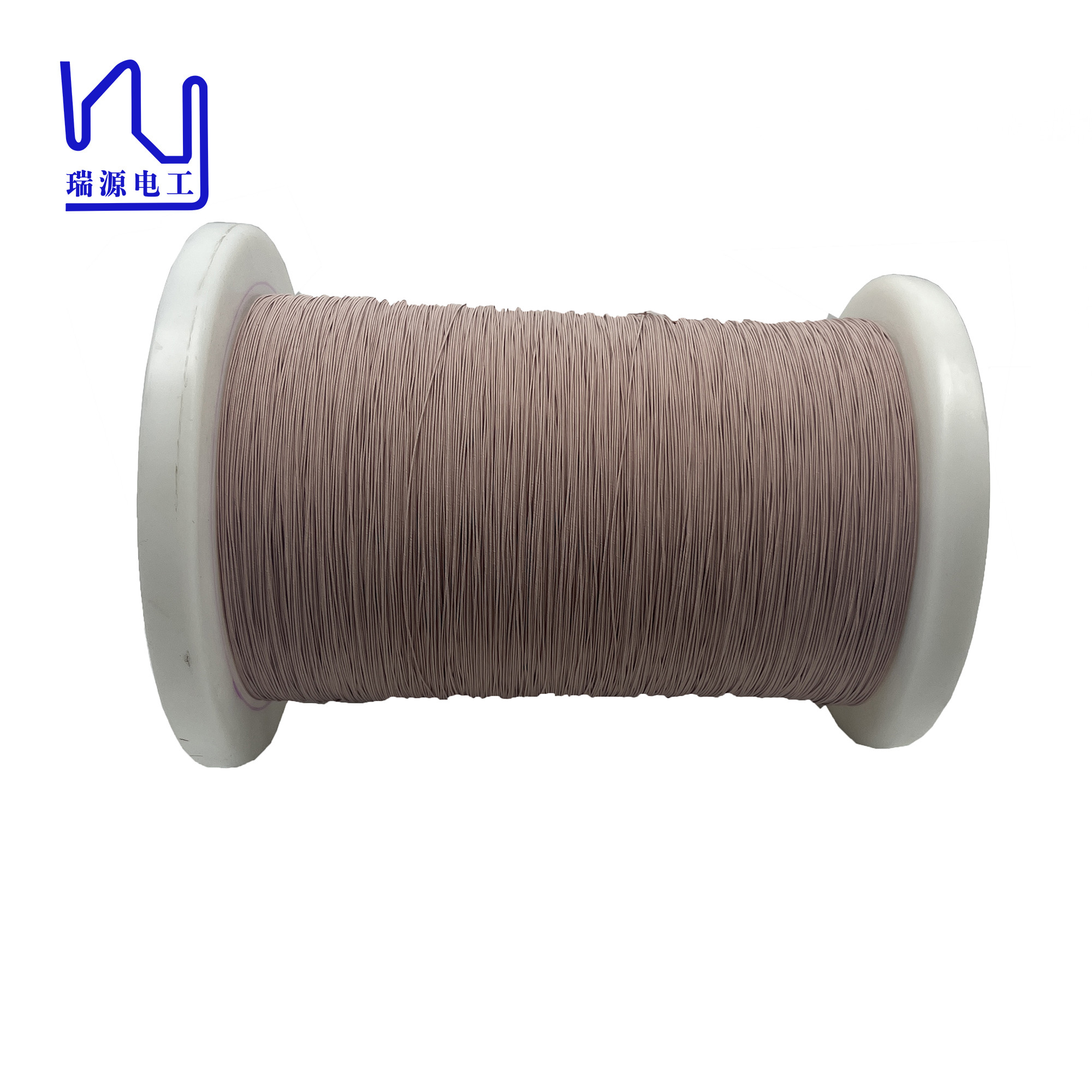

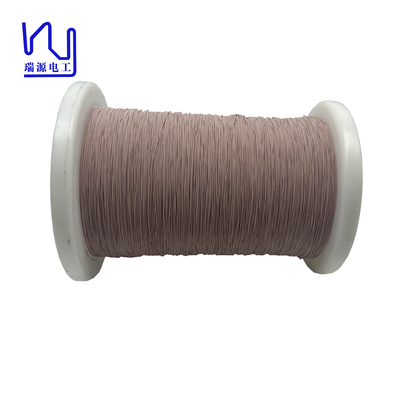

USTC155 copper litz wire 0.05mm Single Wire Silk Covered 1300V Breakdown Voltage
The silk covered litz wire's design contains multiple individually insulated strands, which reduces the skin effect and ensures that current is evenly distributed throughout the wire. This property makes silk covered litz wire an excellent choice for applications requiring high-frequency signals, such as inductors, transformers and other electronic components used in industrial machinery and equipment. The wire's ability to handle high-frequency currents with minimal power loss makes it an important component in a variety of industrial environments where efficiency and reliability are critical.
|
Item |
Technical requests |
Test value 1 |
Test value 2 |
|
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
|
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
|
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
|
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
|
Breakdown Voltage V |
1300 |
3300 |
3200 |
|
Pitch mm |
27 ± 5 |
√ |
√ |
|
No. of strands |
60 |
√ |
√ |
