| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Material: | Copper | Width: | 1mm |
|---|---|---|---|
| Thickness: | 0.25mm | Certificates: | ROHS/UL/SGS/ISO9001:2008 |
| Durability: | High | Temperature: | 220℃ |
| Type: | Insulated | Shape: | Rectangular |
| Product Name: | Rectangular AIW220 Flat Copper Wire With 1mm Width And Thickness | Key Word: | Rectangular AIW220 Flat Copper Wire With 1mm Width And Thickness |
| Highlight: | SGS Insulated Copper Wire,Rectangular Shape Insulated Copper Wire,1mmx0.25mm Insulated Copper Wire |
||

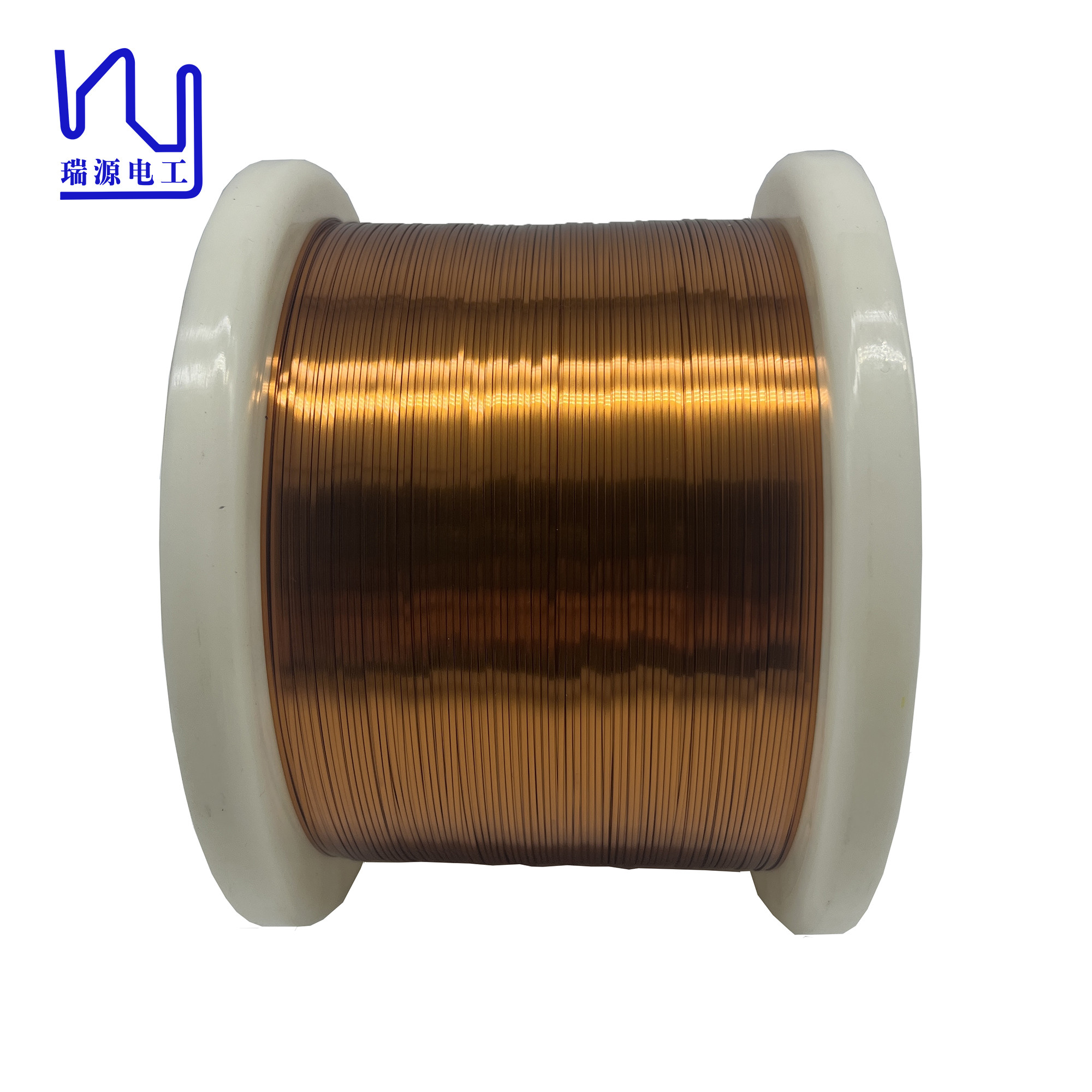

Rectangular AIW220 flat copper wire with 1mm width and thickness
Enameled flat copper wire has many advantages and is widely used in industrial fields and electronic products. Its thermal conductivity, high temperature resistance and customizability make it a versatile and reliable choice for manufacturers looking for efficient electrical solutions. Whether used in motors, transformers, electronic components or other electrical machines, enameled flat copper wire continues to demonstrate its value in delivering high-performance and durable products in various industries.
|
Item
|
conductor dimension |
Unilateral Self adhesive thickness |
Insulation thickness |
Overall dimension |
Breakdown voltage
|
Conductor resistance |
Elongation |
soldering temperature
|
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||||
| Unit | mm | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % |
410±10℃ |
|
|
SPEC |
Ave | 0.250 | 1.000 | 0.025 | 0.025 | |||||||
| Max | 0.259 | 1.060 | 0.040 | 0.040 | 0.310 | 1.110 | 65.730 | |||||
| Min | 0.241 | 0.940 | 0.002 | 0.010 | 0.010 | 0.700 | 30 | |||||
| No. 1 | 0.2558 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.320 |
62.240
|
34
|
Good
|
|
| No. 2 | 2.310 | |||||||||||
| No. 3 | 3.020 | |||||||||||
| No. 4 | 1.240 | |||||||||||
| No. 5 | 1.419 | |||||||||||
| Ave | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.862 | ||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||
| Min. reading | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.240 | ||||
| Max. reading | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 3.020 | ||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.780 | ||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | ||
