| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.10mm |
| Thickness: | 0.90mm | Conductor Material: | Copper |
| Key Word: | Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire | ||
| High Light: | Polyamideimide 220 Enameled Copper Wire,1.1mm Flat Enameled Copper Wire,1.1mm Enameled Copper Wire |
||

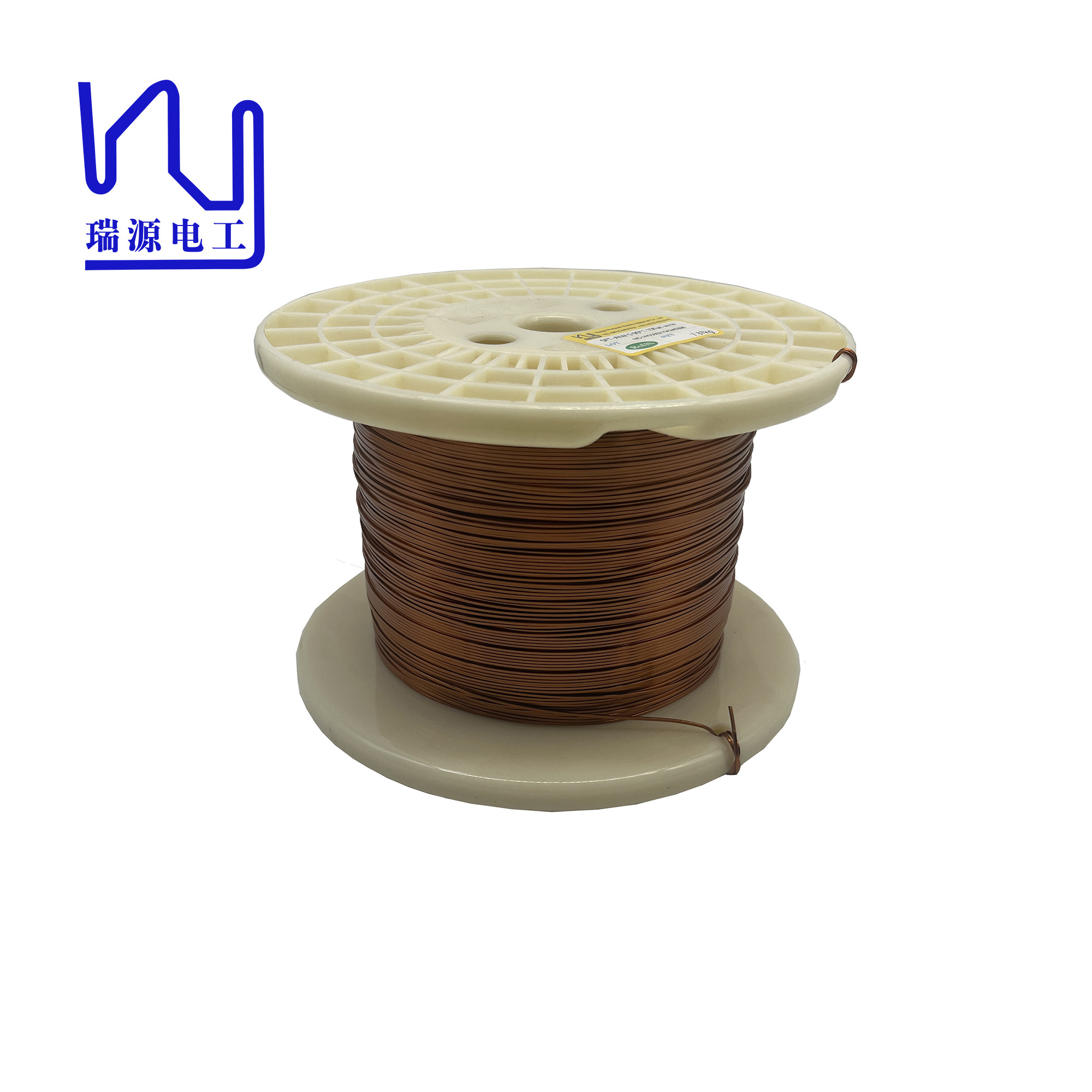

Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire
The use of enamelled flat wires in various electrical machines extends to a wide range of specific uses, including electric vehicles, HVAC systems, industrial machinery and home appliances. In electric vehicles, the compact and lightweight nature of enameled flat wires helps improve the overall efficiency and performance of vehicle propulsion systems. Likewise, in HVAC systems, the use of flat wire allows for more efficient and compact motor designs, which improves energy efficiency and reduces operating costs.
| Model | SFT-AIW | Date | |||||||||
| Size(mm): | 0.900 × 1.100 | Lot | |||||||||
|
Key word |
Polyamideimide 220 1.1mm Flat Enameled Copper Wire Rectangular Insulated Winding Wire |
||||||||||
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | ||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.900 | 1.100 | 0.025 | 0.025 | ||||||
| Max | 0.930 | 1.160 | 0.040 | 0.040 | 0.980 | 1.200 | 1 | 22.600 | |||
| Min | 0.870 | 1.040 | 0.010 | 0.010 | 0.700 | 0 | 30 | ||||
| No. 1 | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.200 | 18.300 | 44 | ||
| No. 2 | 1.520 | ||||||||||
| No. 3 | 1.030 | ||||||||||
| No. 4 | 1.514 | ||||||||||
| No. 5 | 1.202 | ||||||||||
| Ave | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.293 | ||||
| No of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||
| Min. reading | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.030 | ||||
| Max. reading | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.520 | ||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.490 | ||||
