| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | High-Precision & Small Size Enameled Flat Copper Wire AIW Series For New Energy Vehicles | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.00mm |
| Thickness: | 0.30mm | Conductor Material: | Copper |
| Key Word: | High-Precision & Small Size Enameled Flat Copper Wire AIW Series For New Energy Vehicles | ||
| High Light: | Small Size Enameled Flat Copper Wire,High Precision Enameled Flat Copper Wire,AIW Series Enameled Flat Copper Wire |
||

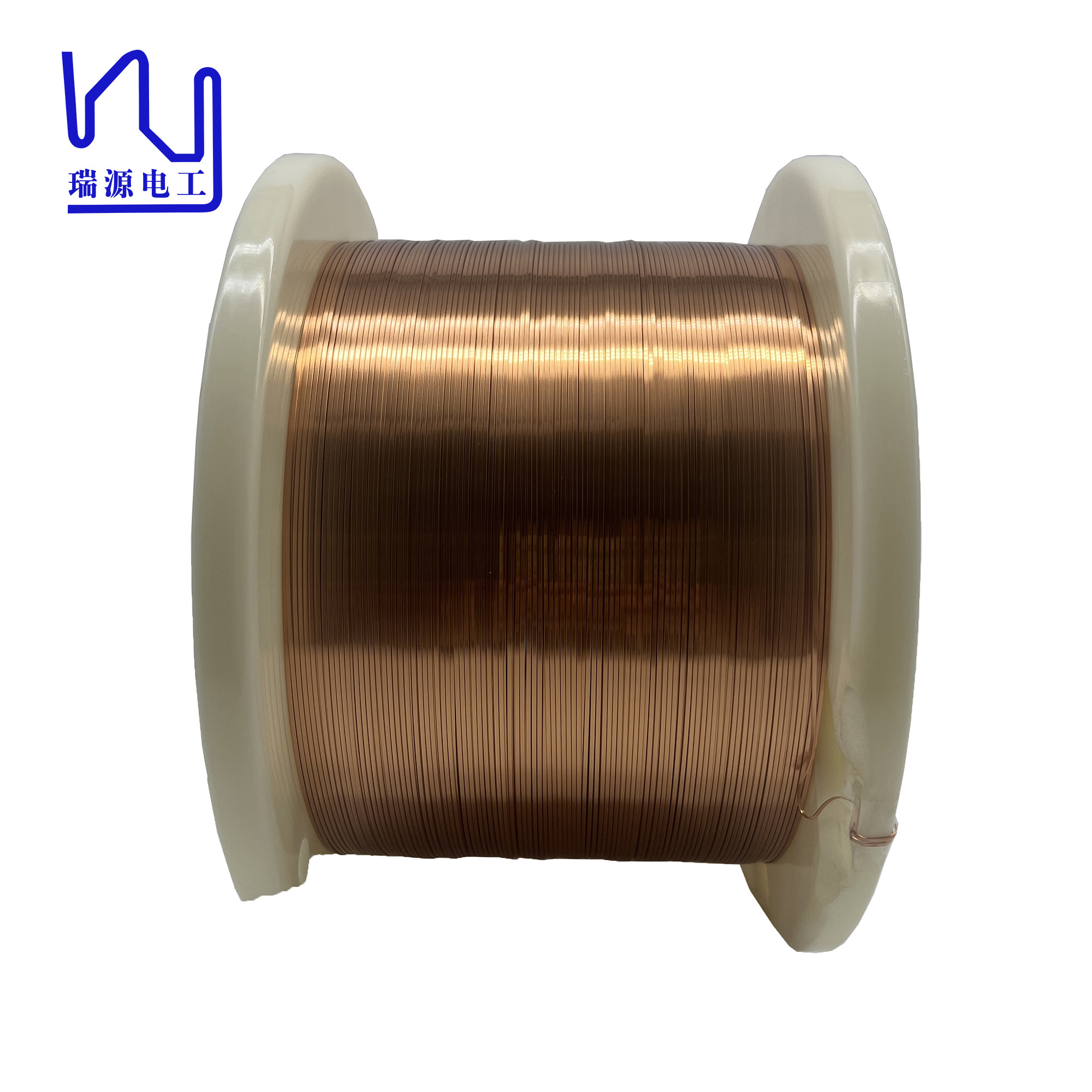

High-Precision & Small Size Enameled Flat Copper Wire AIW Series For New Energy Vehicles
The 1mm*0.3mm enameled flat wire has a polyamide-imide paint film, which has excellent characteristics and advantages and is very suitable for use in the automotive industry. Its temperature resistance, electrical insulation, chemical resistance and mechanical strength make it ideal for a variety of automotive applications, helping to improve vehicle reliability and performance. As automotive technology continues to advance, the demand for high-quality enameled flat copper wires, such as the 1mm*0.3mm variant with polyamide-imide paint film, is expected to grow, further solidifying its importance in the automotive industry .
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | Appearance |
soldering temperature |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
410±10℃ |
|
|
SPEC |
Ave | 0.300 | 1.000 | 0.025 | 0.025 | ||||||||
| Max | 0.309 | 1.060 | 0.040 | 0.040 | 0.350 | 1.050 | 3 | 65.730 | |||||
| Min | 0.291 | 0.940 | 0.010 | 0.010 | 0.340 | 1.030 | 0.700 | 30 | |||||
| No. 1 | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.520 |
0 |
62.240 |
34 |
No to be scratched No dirt |
Good |
|
| No. 2 | 2.320 | ||||||||||||
| No. 3 | 1.320 | ||||||||||||
| No. 4 | 2.310 | ||||||||||||
| No. 5 | 1.185 | ||||||||||||
| Ave | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.731 | ||||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||
| Min. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.185 | ||||||
| Max. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 2.320 | ||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.135 | ||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
