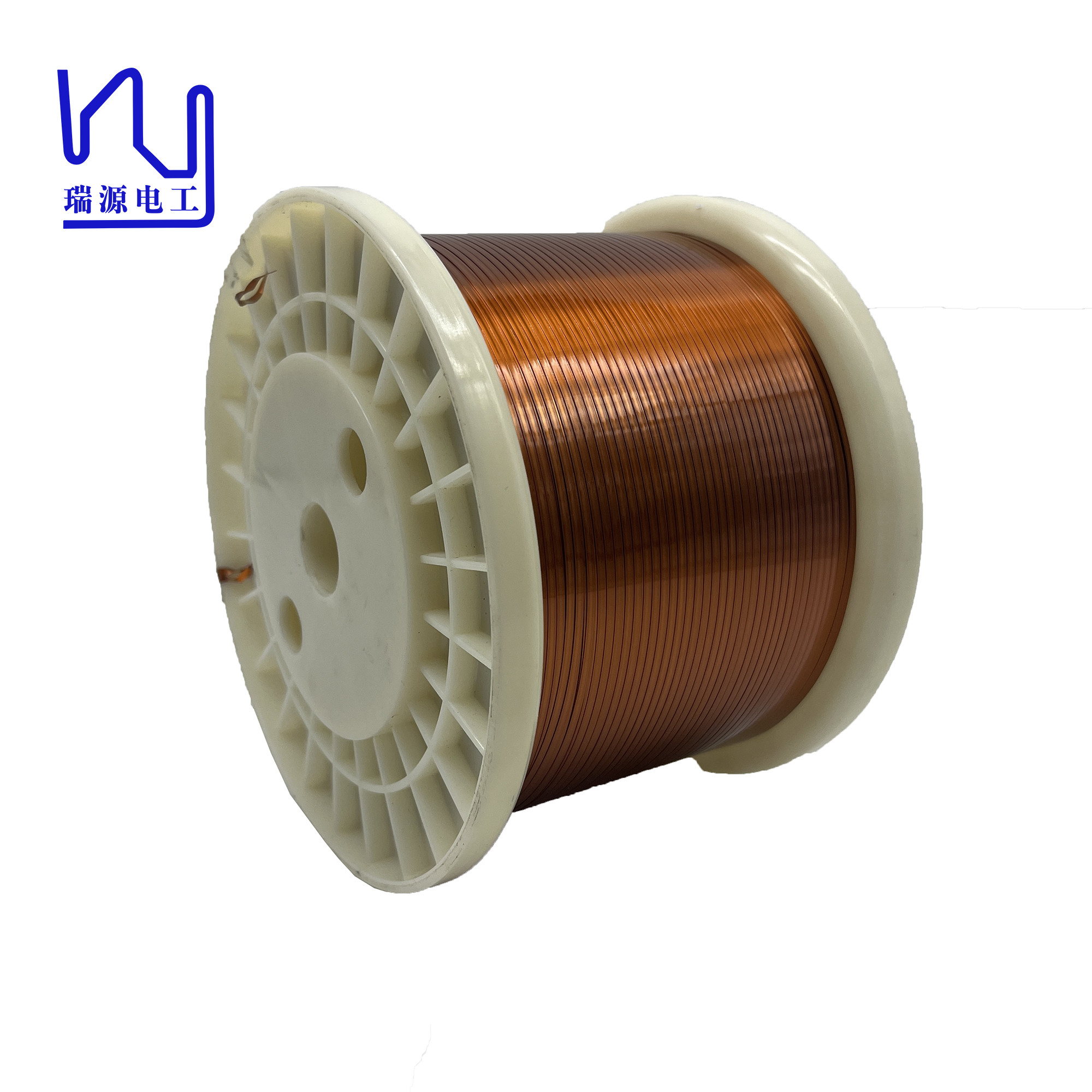

Product Name:	High Current AIW 220C 2mm Flat Enameled Copper Wire For Rewinding Of Motors	Thermal Rating:	2200
Insulation Material:	AIW	Width:	2.00mm
Thickness:	0.10mm	Conductor Material:	Copper
Key Word:	High Current AIW 220C 2mm Flat Enameled Copper Wire For Rewinding Of Motors
High Light:	high current flat enameled copper wire , 2mm flat enameled copper wire , high current enameled flat copper wire

Key word:High Current AIW 220C 2mm Flat Enameled Copper Wire for Rewinding of Motors
Model		SFT-AIW					Date			2024-1-8
Size(mm):		0.100 × 2.000					Lot			/

Item		conductor dimension		Unilateral insulation laer thickness		Overall dimension		Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Apperance	Flexibility	Adherence	Thermal shock
Item		Thickness	Width	Thickness	Width	Thickness	Width	Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Apperance	Flexibility	Adherence	Thermal shock
Unit		mm	mm	mm	mm	mm	mm	kv	Pcs/m	Ω/km 20℃	%	No to be scratched No dirt	No crack	No crack	No crack
SPEC	AVE	0.100	2.000	0.025	0.025
	Max	0.109	2.060	0.040	0.040	0.150	2.100		3	93.240
	Min	0.091	1.940	0.010	0.010			0.700			30
No. 1		0.104	1.992	0.020	0.013	0.144	2.018	2.680	0	85.634	46	No to be scratched No dirt	Good	Good	Good
No. 2								1.968
No. 3								2.250
No. 4								2.458
No. 5								1.976
Ave		0.104	1.992	0.020	0.013	0.144	2.018	2.266
Number of reading		1	1	1	1	1	1	5
Min. reading		0.104	1.992	0.020	0.013	0.144	2.018	1.968
Max. reading		0.104	1.992	0.020	0.013	0.144	2.018	2.680
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.712
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
