| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW High Temperature Copper Wire 0.1mm*2.0mm Flat Enameled Wire | Thermal Rating: | 2200 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 2.00mm |
| Thickness: | 0.10mm | Conductor Material: | Copper |
| Key Word: | AIW High Temperature Copper Wire 0.1mm*2.0mm Flat Enameled Wire | ||
| High Light: | AIW flat enameled wire,High Temperature flat enameled wire,flat enameled copper wire 0.1 mm |
||

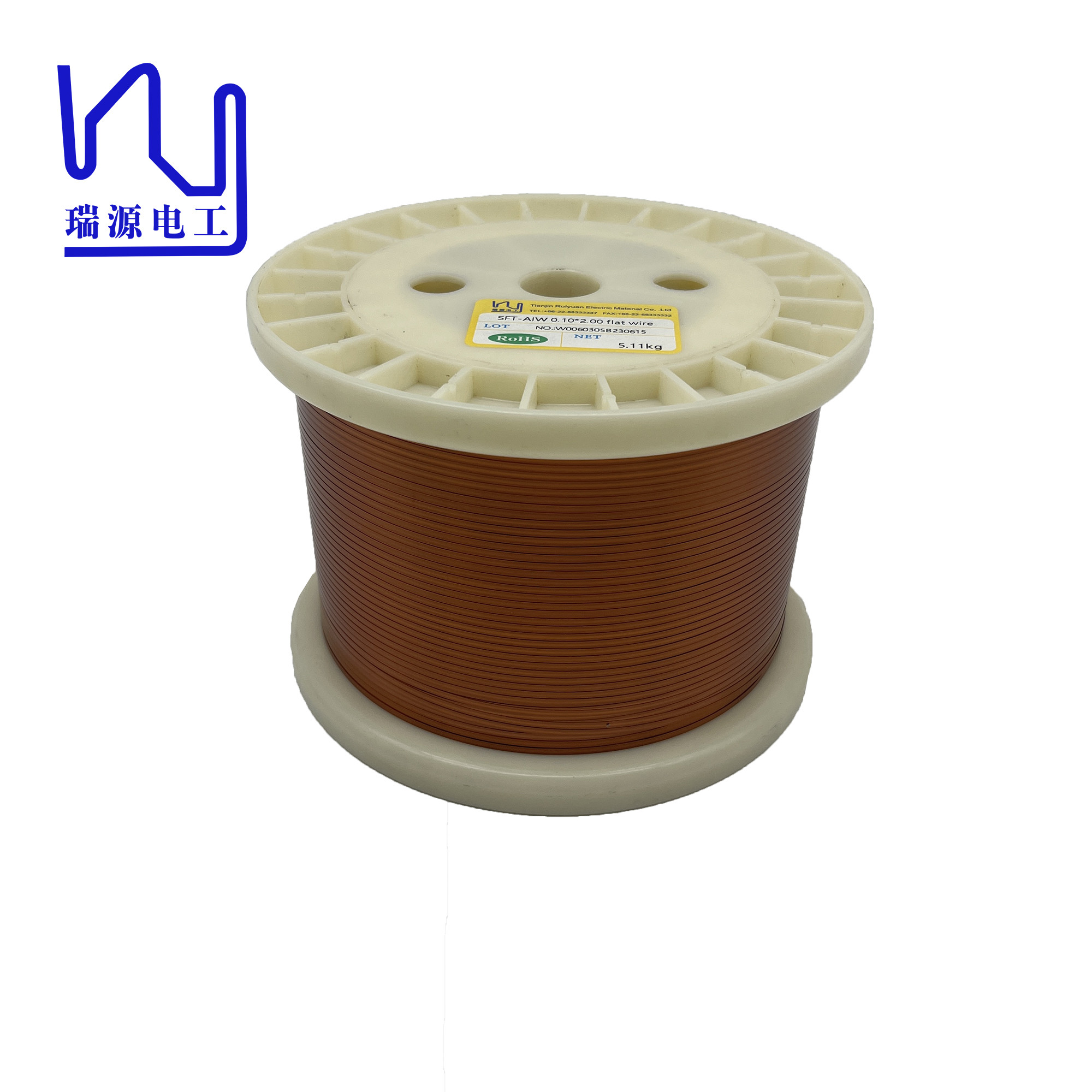

AIW High Temperature Copper Wire 0.1mm*2.0mm Flat Enameled Wire
One of the main advantages of enameled flat copper wire is its ability to withstand high temperatures without affecting its electrical properties. In automotive applications, where the heat generated by engines and electrical components can be significant, using enameled flat copper wire ensures reliable and consistent performance. Whether used in ignition systems, sensors or electric motors, this high-temperature wire provides the durability and thermal resiliency required for the harsh conditions within automotive systems.
| Key word:AIW High Temperature Copper Wire 0.1mm*2.0mm Flat Enameled Wire | |||||||||||||||
| Model | SFT-AIW | Date | 2024-1-8 | ||||||||||||
| Size(mm): | 0.100 × 2.000 | Lot | / | ||||||||||||
|
Item |
conductor dimension |
Unilateral insulation laer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
| Unit | mm |
mm |
mm |
mm |
mm |
mm |
kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
AVE | 0.100 |
2.000 |
0.025 | 0.025 | ||||||||||
| Max | 0.109 | 2.060 | 0.040 | 0.040 | 0.150 | 2.100 | 3 | 93.240 | |||||||
| Min | 0.091 | 1.940 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
| No. 1 | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 |
0 |
85.634 |
46 |
No to be scratched No dirt |
Good |
Good |
Good |
|
| No. 2 | 1.968 | ||||||||||||||
| No. 3 | 2.250 | ||||||||||||||
| No. 4 | 2.458 | ||||||||||||||
| No. 5 | 1.976 | ||||||||||||||
| Ave | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.266 | ||||||||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
| Min. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 1.968 | ||||||||
| Max. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 | ||||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.712 | ||||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
