| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | SFT-AIW220 0.1mm*2.0mm Enameled Flat Copper Wire For Automotive | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 2.00 |
| Thickness: | 0.10 | Conductor Material: | Copper |
| Key Word: | SFT-AIW220 0.1mm*2.0mm Enameled Flat Copper Wire For Automotive | ||
| Highlight: | 0.1 flat enameled copper wire,automotive flat enameled copper wire,automotive flat enameled wire |
||

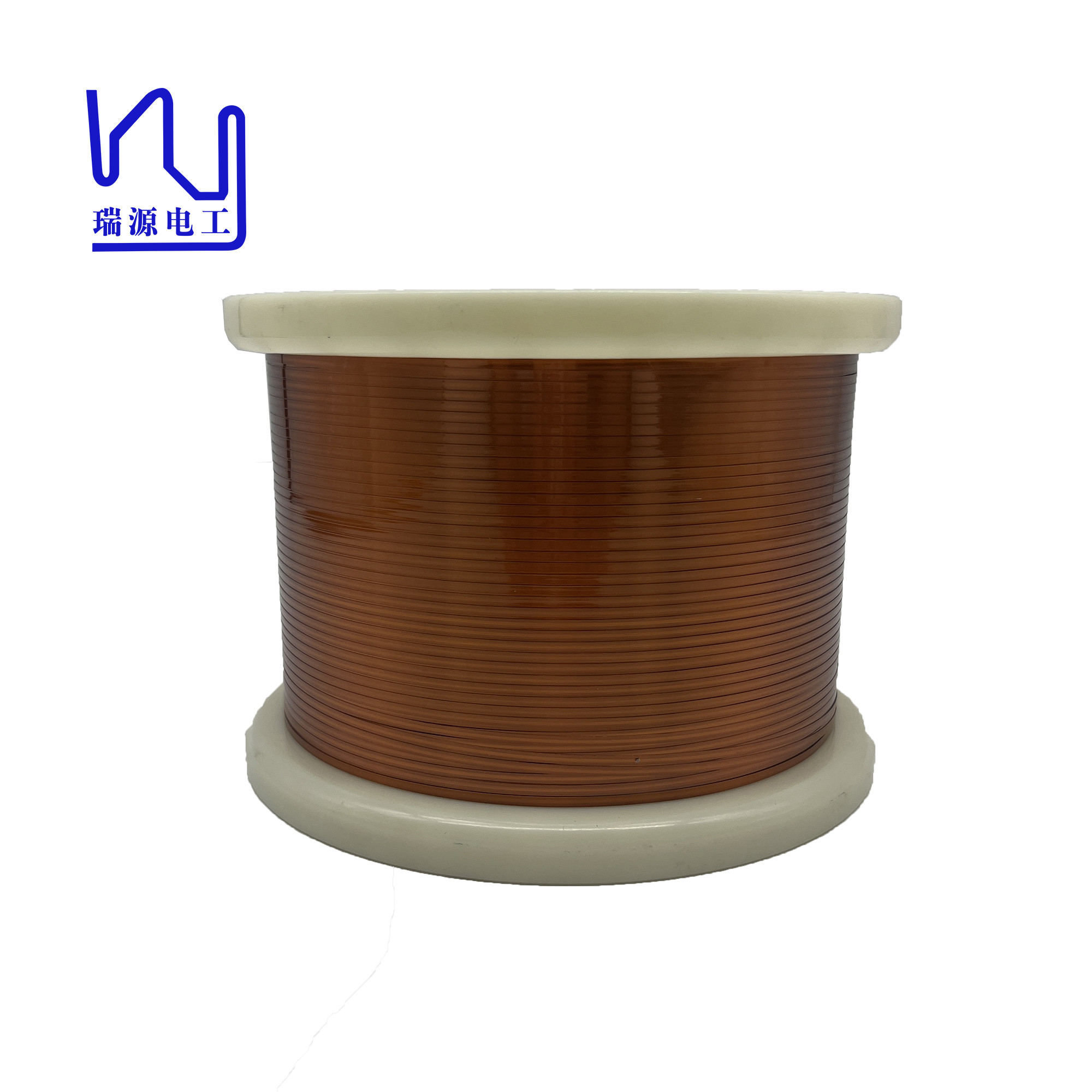

SFT-AIW220 0.1mm*2.0mm Enameled Flat Copper Wire For Automotive
Enameled flat copper wire is a specially designed high-temperature wire that is widely used in various applications in the automotive industry. This custom wire has high temperature resistance up to 220 degrees, making it ideal for demanding automotive environments. The enameled flat copper wire is 2 mm wide and 0.1 mm thick and is designed to meet the specific requirements of automotive systems, where space efficiency and thermal resistance are key factors.
| TEST REPORT | |||||||||||||||
| Model | SFT-AIW | Date | 2024-1-8 | ||||||||||||
| Size(mm): | 0.100 × 2.000 | Lot | / | ||||||||||||
|
Item |
conductor dimension |
Unilateral insulation laer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
| Unit | mm |
mm |
mm |
mm |
mm |
mm |
kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
AVE | 0.100 |
2.000 |
0.025 | 0.025 | ||||||||||
| Max | 0.109 | 2.060 | 0.040 | 0.040 | 0.150 | 2.100 | 3 | 93.240 | |||||||
| Min | 0.091 | 1.940 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
| No. 1 | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 |
0 |
85.634 |
46 |
No to be scratched No dirt |
Good |
Good |
Good |
|
| No. 2 | 1.968 | ||||||||||||||
| No. 3 | 2.250 | ||||||||||||||
| No. 4 | 2.458 | ||||||||||||||
| No. 5 | 1.976 | ||||||||||||||
| Ave | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.266 | ||||||||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
| Min. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 1.968 | ||||||||
| Max. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 | ||||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.712 | ||||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
