| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | EIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW/UEW/EIW 180/220 2.0mm Enameled Rectangular / Flat Copper Wire For Motor | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | EIW | Width: | 2.00 |
| Thickness: | 0.80 | Conductor Material: | Copper |
| Key Word: | AIW/UEW/EIW 180/220 2.0mm Enameled Rectangular / Flat Copper Wire For Motor | ||
| High Light: | AIW enameled flat copper wire,enameled flat copper wire 2.0mm,flat enameled copper wire For Motor |
||

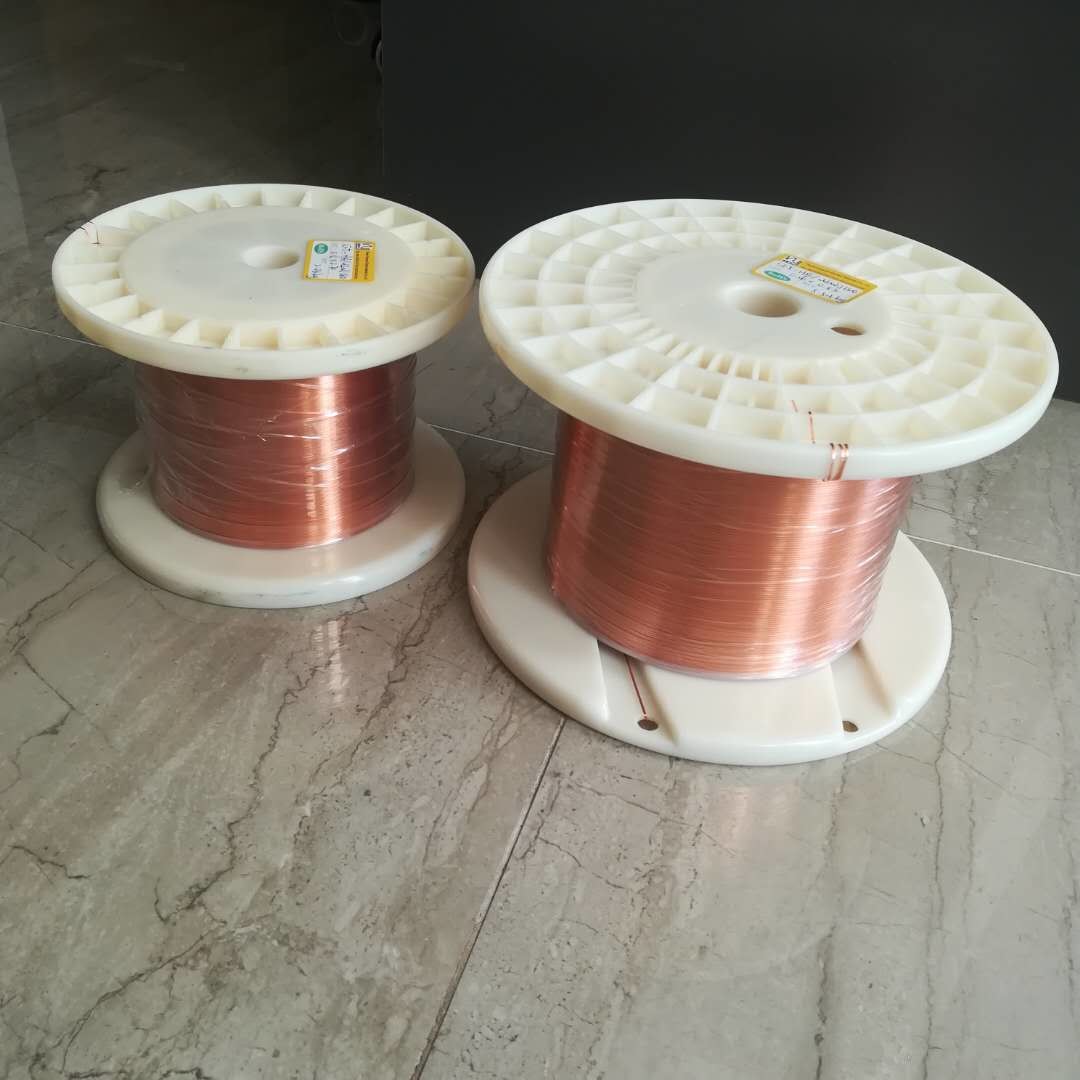

AIW/UEW/EIW 180/220 2.0mm Enameled Rectangular / Flat Copper Wire For Motor
By leveraging customized flat wire solutions, motor manufacturers can optimize the design and efficiency of their products, driving innovation in the industry.
As the motor industry continues to advance, the demand for high-quality, customized enameled flat copper wire will continue to grow.
| Characteristics | Standard | Test Result | ||
| Appearance | Smooth Equality | Smooth Equality | ||
| Conductor Diameter | Width | 2.00 | ±0.030 | 1.974 |
| Thickness | 0.80 | ±0.030 | 0.798 | |
| Min.thickness of insulation | Width | 0.120 | 0.149 | |
| Thickness | 0.120 | 0.169 | ||
| Overall Diameter | Width | 2.20 | 2.123 | |
| Thickness | 1.00 | 0.967 | ||
| Pinhole | Max. 0 hole/m | 0 | ||
| Elongation | Min. 30 % | 40 | ||
| Flexibility and Adherence | No crack | No crack | ||
| Conductor Resistance (Ω/km at 20℃) | Max 11.79 | 11.51 | ||
| Breakdown Voltage | Min. 2.00kv | 7.50 | ||
| Heat shock | No Crack | No Crack | ||
| Conclusion | Pass | |||
