| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | EIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | EIW/QZYB-180 2.00*0.8mm Enameled Flat Copper Wire For Motor | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | EIW | Width: | 2.00 |
| Thickness: | 0.80 | Conductor Material: | Copper |
| Key Word: | EIW/QZYB-180 2.00*0.8mm Enameled Flat Copper Wire For Motor | ||
| High Light: | rectangular copper wire size 2.00*0.8mm,motor rectangular enameled copper wire,motor enameled rectangular copper wire |
||

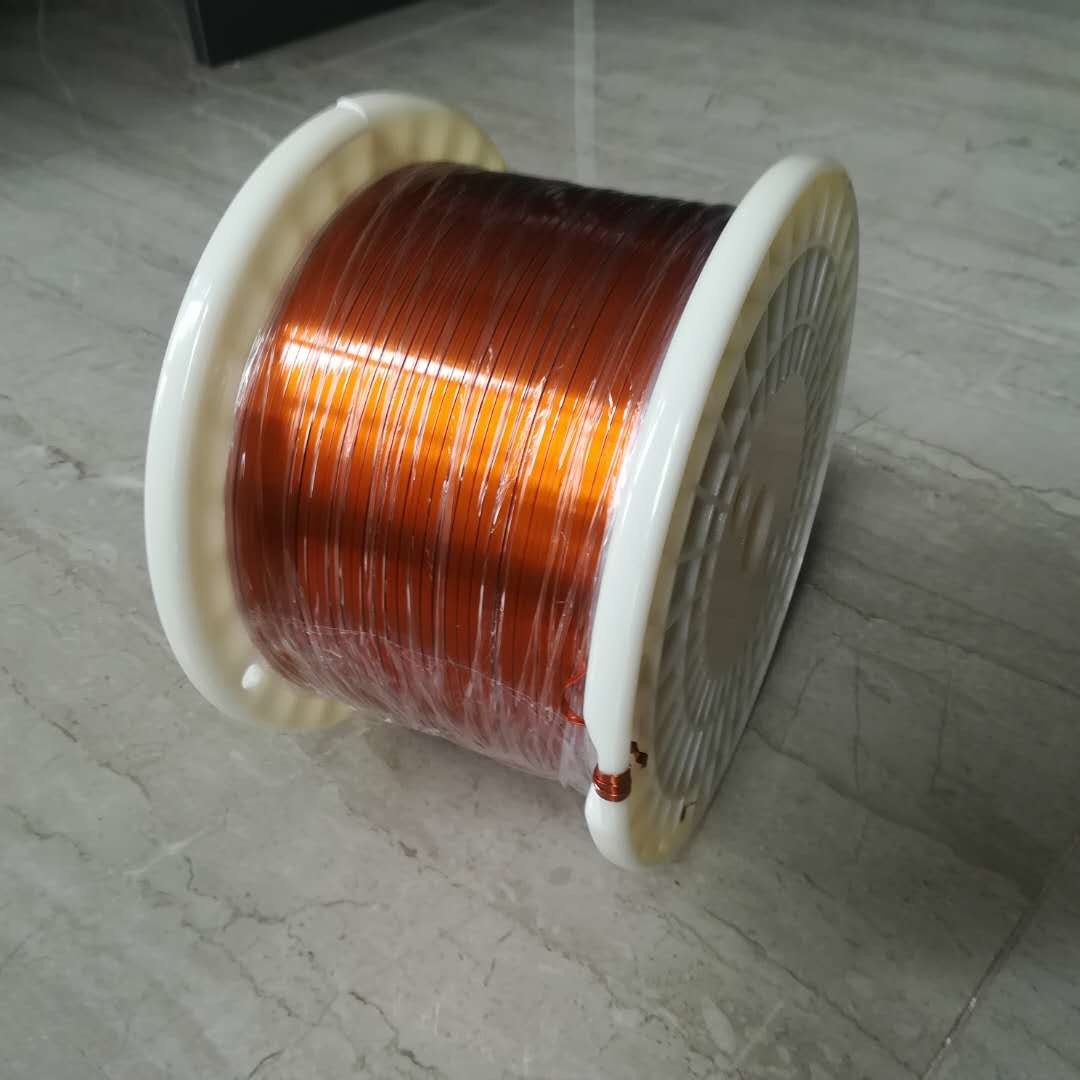

EIW/QZYB-180 2.00*0.8mm Enameled Flat Copper Wire For Motor
The thickness of this enameled flat copper wire is 2 mm, width 0.8 mm, temperature resistant to 180 degrees, and designed to withstand high temperatures and electrical requirements.The thick enamel coating enables it to withstand high voltages, ensuring excellent performance in motor applications.
| Characteristics | Standard | Test Result | ||
| Appearance | Smooth Equality | Smooth Equality | ||
| Conductor Diameter | Width | 2.00 | ±0.030 | 1.974 |
| Thickness | 0.80 | ±0.030 | 0.798 | |
| Min.thickness of insulation | Width | 0.120 | 0.149 | |
| Thickness | 0.120 | 0.169 | ||
| Overall Diameter | Width | 2.20 | 2.123 | |
| Thickness | 1.00 | 0.967 | ||
| Pinhole | Max. 0 hole/m | 0 | ||
| Elongation | Min. 30 % | 40 | ||
| Flexibility and Adherence | No crack | No crack | ||
| Conductor Resistance (Ω/km at 20℃) | Max 11.79 | 11.51 | ||
| Breakdown Voltage | Min. 2.00kv | 7.50 | ||
| Heat shock | No Crack | No Crack | ||
| Conclusion | Pass | |||
