| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW4 FIW5 FIW6 High Voltage Resistance FIW Fully Insulated Enameled Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.711mm |
| Conductor Material: | Copper | Key Word: | FIW4 FIW5 FIW6 High Voltage Resistance FIW Fully Insulated Enameled Copper Wire |
| High Light: | fiw wire enameled copper,High Voltage Resistance fiw wire,FIW4 enamel insulated copper wire |
||

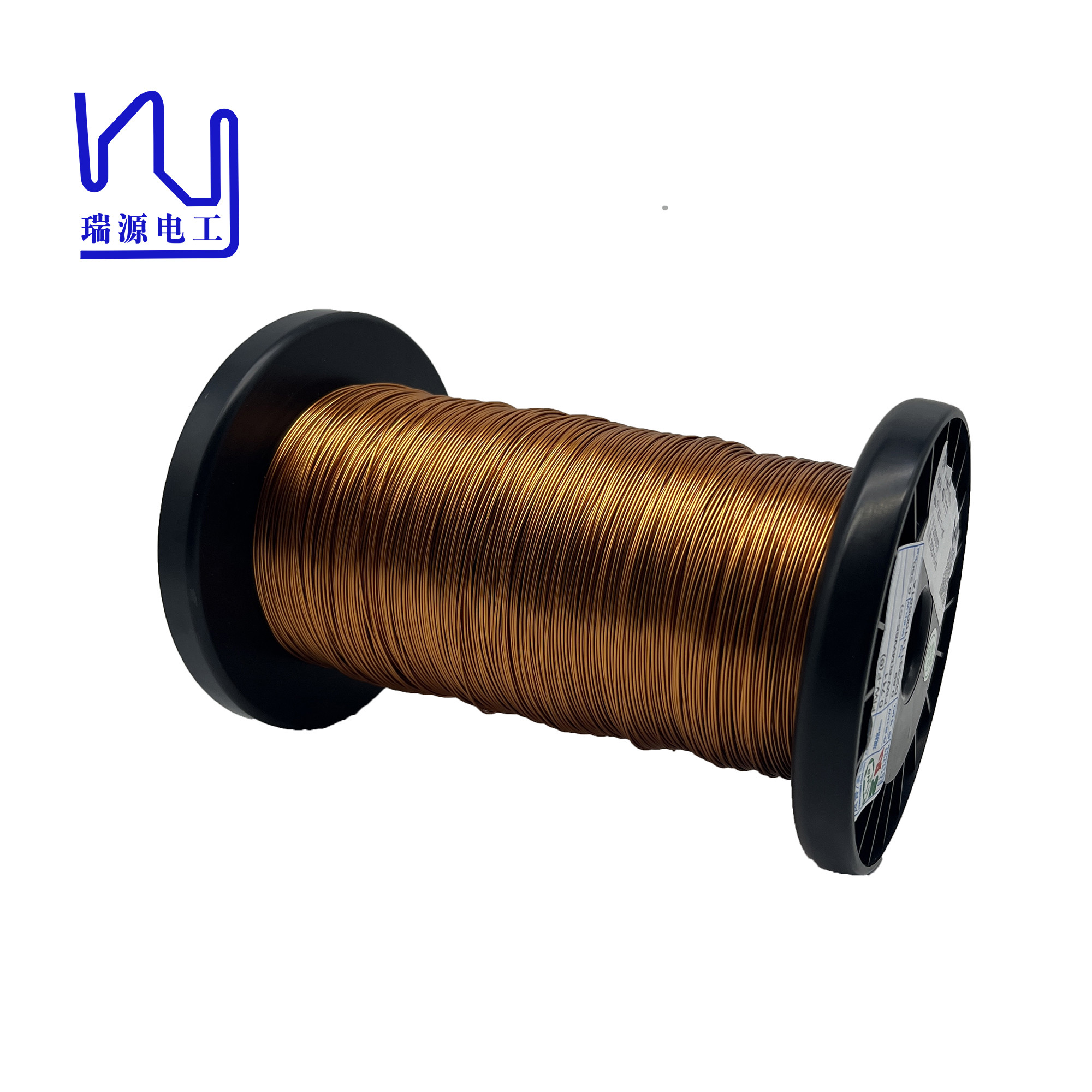

FIW4 FIW5 FIW6 High Voltage Resistance FIW Fully Insulated Enameled Copper Wire
The FIW wire can operate stably no matter in high temperature or high humidity environment. It uses the most advanced insulation materials and can withstand voltages up to 3000V, ensuring line stability and safety.
This feature makes FIW Full Insulated Zero Defect enameled copper wire particularly suitable for high-voltage scenarios with stringent electrical performance requirements, providing reliable guarantee for the safe operation of various electrical equipment.
| Nom.Diameter(mm) |
Min. Breakdown voltage (V) 20℃ | |||||
| FIW3 | FIW4 | FIW5 | FIW6 | FIW7 | FIW8 | |
| 0.100 | 2106 | 2673 | 3969 | 5265 | 6561 | 7857 |
| 0.120 | 2280 | 2964 | 4332 | 5700 | 7068 | 8436 |
| 0.140 | 2432 | 3192 | 4712 | 6232 | 7752 | 9272 |
| 0.160 | 2660 | 3496 | 5168 | 6840 | 8512 | 10184 |
| 0.180 | 2888 | 3800 | 5624 | 7448 | 9272 | 11096 |
| 0.200 | 3040 | 4028 | 5928 | 7828 | 9728 | 11628 |
| 0.250 | 3648 | 4788 | 7068 | 9348 | 11628 | 13908 |
| 0.300 | 4028 | 5320 | 7676 | 10032 | 12388 | 14744 |
| 0.400 | 4200 | 5530 | 7700 | 9870 | 12040 | 14210 |
| 0.450 | 4480 | 5880 | 8050 | 10220 | 12390 | 14560 |
| 0.475 | 4690 | 6160 | 9030 | 11900 | 14770 | 17640 |
| 0.500 | 4690 | 6160 | 9030 | 11900 | 14770 | |
| 0.560 | 3763 | 4982 | 7155 | 9328 | 11501 | - |
| 0.600 | 3975 | 5247 | 7420 | 9593 | 11766 | - |
| 0.710 | 4240 | 5565 | 7738 | 9911 | 12084 | - |
