| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW4 0.4mm Class 180 High Voltage 5500V Fully Insulated Enameled Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.1mm-0.4mm |
| Conductor Material: | Copper | Key Word: | FIW4 0.4mm Class 180 High Voltage 5500V Fully Insulated Enameled Copper Wire |
| High Light: | 0.3mm enamel winding wire,enamel winding wire FIW,5300V fiw wire |
||

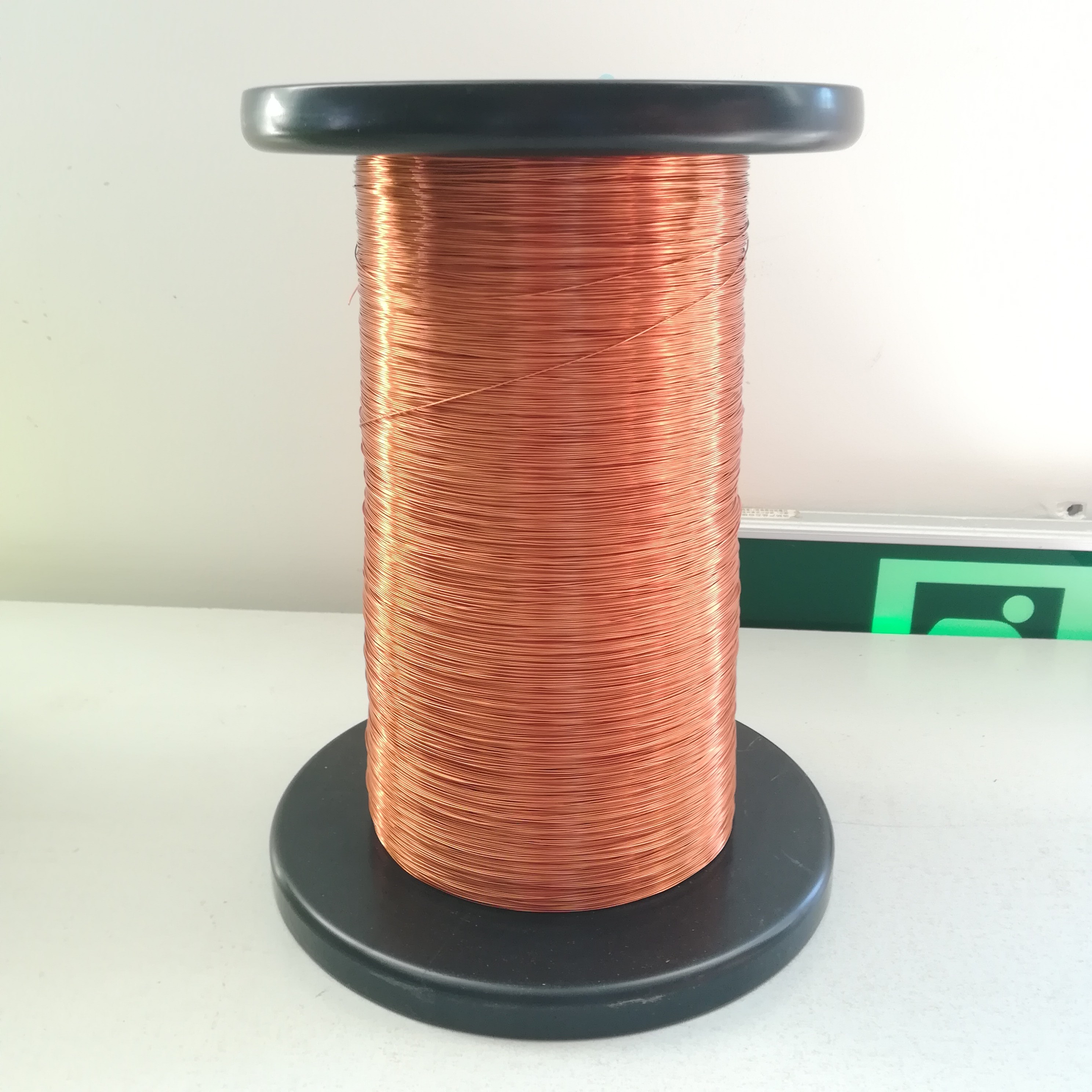

FIW4 0.3mm 5300V Enameled Copper Wire FIW Wire For Transformer Winding
Fully insulated (FIW) zero-defect enamelled round copper wire is the wirewith highthermal class, Zero-defect strengthened insulation and highvoltage resistance compliance with IEC60317-56 / IEC60950U and NEMAMW85-C. FIW is an alternative wire to build electronic transformerstypically using TIW (Triple Insulated Wires)The wire can meet therequirements of miniaturized components,good winding performance andlow cost, applied small transformer, electronic switch etc.
|
Nom.Diameter(mm)
|
Min. Breakdown voltage (V) 20℃ |
|||||
|
FIW3 |
FIW4 |
FIW5 |
FIW6 |
FIW7 |
FIW8 |
|
|
0.100 |
2106 |
2673 |
3969 |
5265 |
6561 |
7857 |
|
0.120 |
2280 |
2964 |
4332 |
5700 |
7068 |
8436 |
|
0.140 |
2432 |
3192 |
4712 |
6232 |
7752 |
9272 |
|
0.160 |
2660 |
3496 |
5168 |
6840 |
8512 |
10184 |
|
0.180 |
2888 |
3800 |
5624 |
7448 |
9272 |
11096 |
|
0.200 |
3040 |
4028 |
5928 |
7828 |
9728 |
11628 |
|
0.250 |
3648 |
4788 |
7068 |
9348 |
11628 |
13908 |
|
0.300 |
4028 |
5320 |
7676 |
10032 |
12388 |
14744 |
|
0.400 |
4200 |
5530 |
7700 |
9870 |
12040 |
14210 |
