| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW4 H 0.14mm Enameled Copper Wire For High Voltage Transformer | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.1mm-0.4mm |
| Conductor Material: | Copper | Key Word: | FIW4 H 0.14mm Enameled Copper Wire For High Voltage Transformer |
| High Light: | FIW4 H super enamelled copper wire,0.14mm super enamelled copper wire,High Voltage Transformer fiw wire |
||

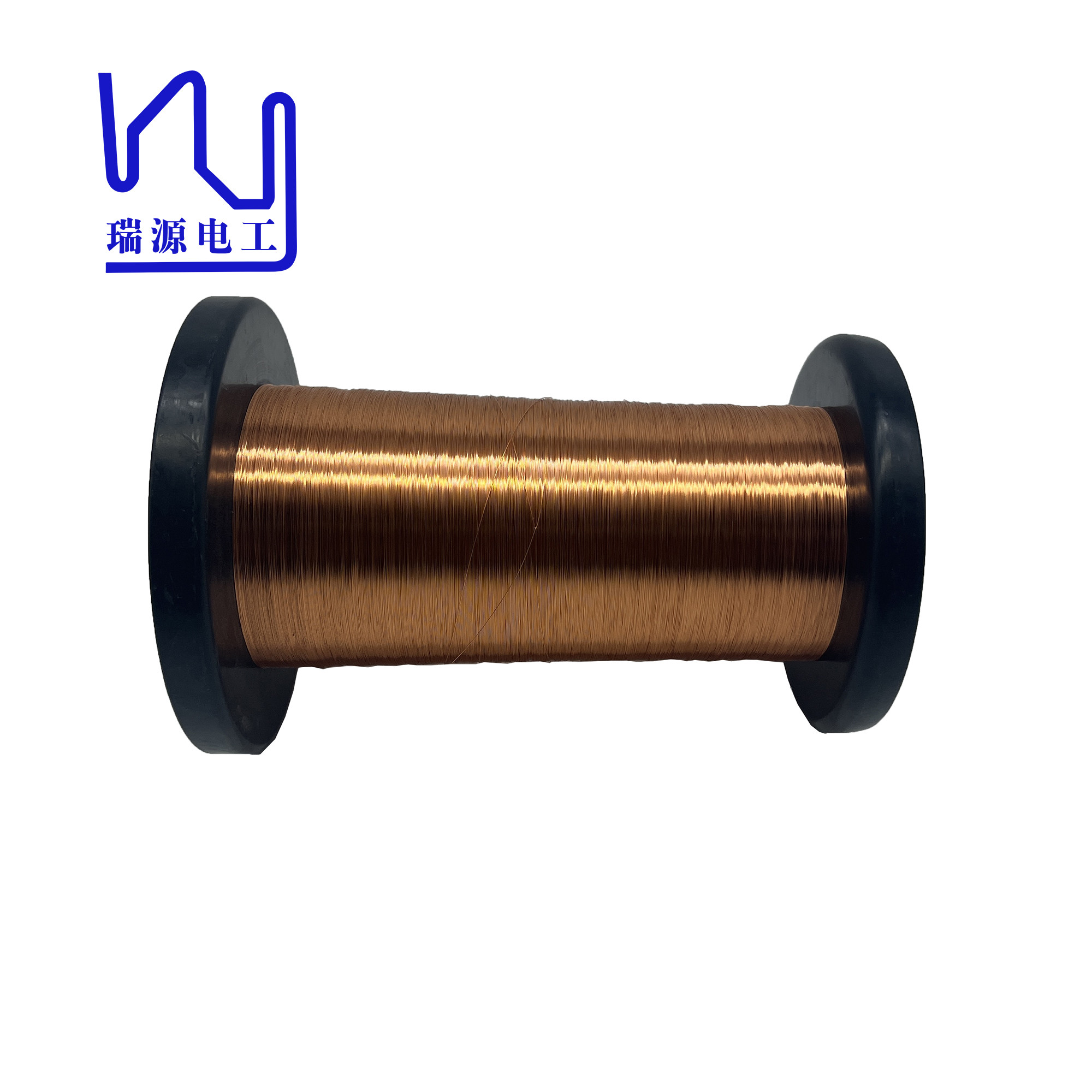

FIW4 H 0.14mm Enameled Copper Wire For High Voltage Transformer
Compared with traditional TIW, FIW has better winding performance and soldering performance. This means that manufacturers can perform winding and welding work more efficiently when using FIW, thereby improving manufacturing efficiency and product quality.
|
Nom.Diameter(mm)
|
Min. Breakdown voltage (V) 20℃ |
|||||
|
FIW3 |
FIW4 |
FIW5 |
FIW6 |
FIW7 |
FIW8 |
|
|
0.100 |
2106 |
2673 |
3969 |
5265 |
6561 |
7857 |
|
0.120 |
2280 |
2964 |
4332 |
5700 |
7068 |
8436 |
|
0.140 |
2432 |
3192 |
4712 |
6232 |
7752 |
9272 |
|
0.160 |
2660 |
3496 |
5168 |
6840 |
8512 |
10184 |
|
0.180 |
2888 |
3800 |
5624 |
7448 |
9272 |
11096 |
|
0.200 |
3040 |
4028 |
5928 |
7828 |
9728 |
11628 |
|
0.250 |
3648 |
4788 |
7068 |
9348 |
11628 |
13908 |
|
0.300 |
4028 |
5320 |
7676 |
10032 |
12388 |
14744 |
|
0.400 |
4200 |
5530 |
7700 |
9870 |
12040 |
14210 |
