USTC / UDTC-F / H Enameled Magnet Wire 0.08mm 40 AWG 270 Strands Nylon Serving Litz

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	USTC/UDTC-F/H 0.08mm/40 AWG 270 Strands Nylon Serving Copper Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	USTC/UDTC-F/H 0.08mm/40 AWG 270 Strands Nylon Serving Copper Litz Wire
No. Of Strands:	270
Highlight:	40 AWG enameled magnet wire , Litz enameled magnet wire , USTC 40 awg magnet wire

Product Description

USTC/UDTC-F/H 0.08mm/40 AWG 270 Strands Nylon Serving Copper Litz Wire

Nylon served litz wire is a special type of wire commonly used in transformer windings.

This wire is made of a single copper conductor with a diameter of 0.08mm, which is then twisted with 270 strands.

Additionally, we offer the option of custom jacket using polyester or natural silk materials based on your specific requirements

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.08±0.003	0.038-0.080
Overall conductor diameter(mm)	0.087-0.103	0.090-0.093
No. Of strands	270	√
Maximum outer diameter(mm)	2.30	1.75-1.81
Pitch(mm)	27±3	√
Maximum Resistance(Ω/m 20℃)	0.01398	0.01296
Minimum Breakdown Voltage(V)	1100	2700
Solderability	380±5℃, 9s	√
Pinhole(faults/6m)	Max. 66	10

Key word:USTC/UDTC-F/H 0.08mm/40 AWG 270 Strands Nylon Serving Copper Litz Wire

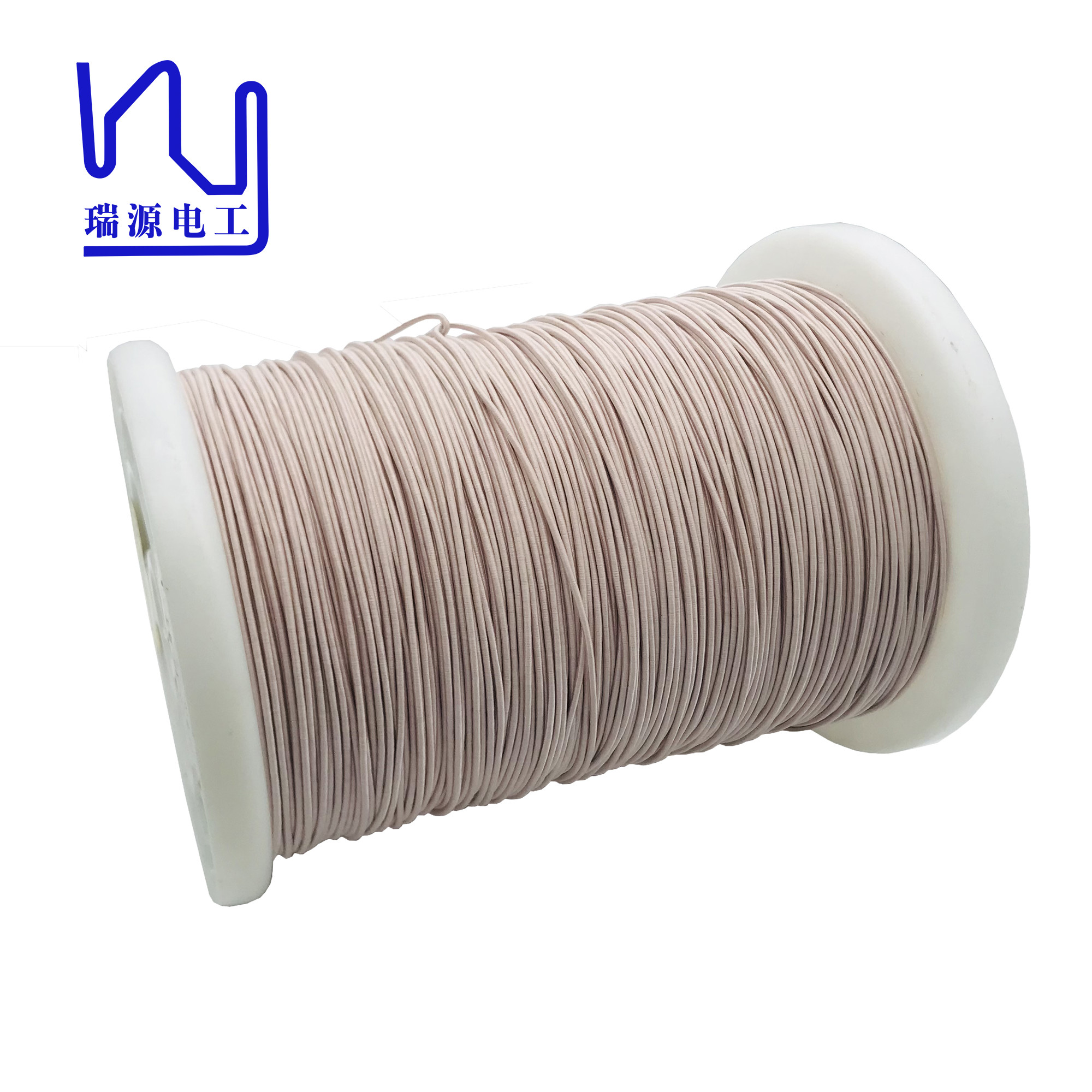

USTC / UDTC-F / H Enameled Magnet Wire 0.08mm 40 AWG 270 Strands Nylon Serving Litz 0

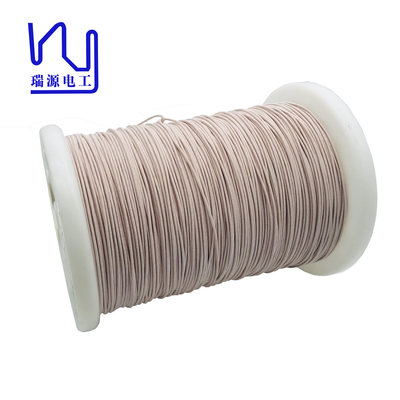

USTC / UDTC-F / H Enameled Magnet Wire 0.08mm 40 AWG 270 Strands Nylon Serving Litz 1
