| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Silk Covered High Frequency Litz Wire 0.04mm * 145 Enamel Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Silk Covered High Frequency Litz Wire 0.04mm * 145 Enamel Copper Wire |
| No. Of Strands: | 145 | ||
| Highlight: | silk covered high frequency litz wire,enamel copper high frequency litz wire,silk covered self bonding magnet wire |
||

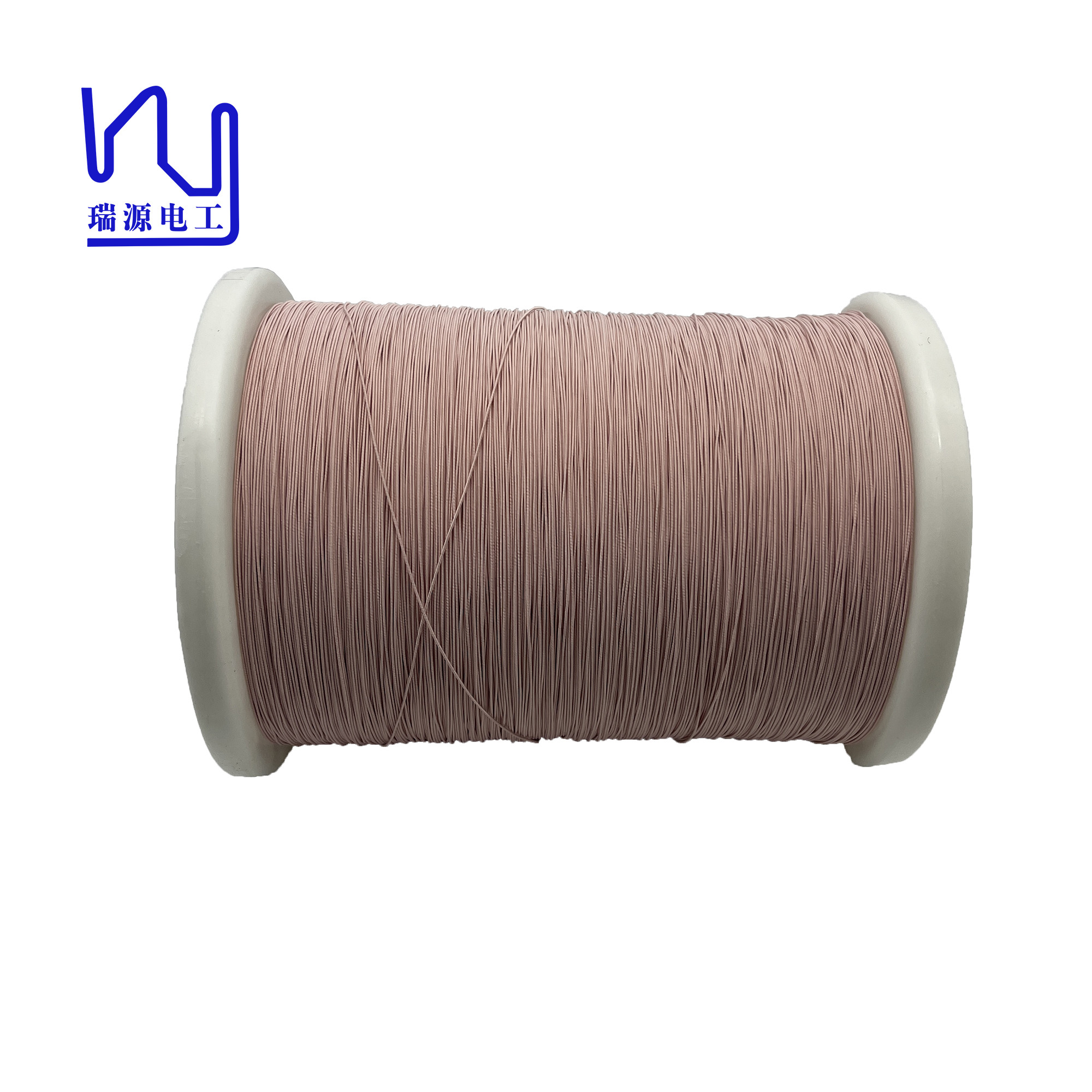

Silk Covered High Frequency Litz Wire 0.04mm * 145 Enamel Copper Wire
We offer the wire with enhanced temperature resistance up to 180 degrees Celsius, ensuring optimal functionality even in extreme operating environments. The manufacturing process of Nylon served Litz Wire ensures consistent quality and reliability.
From the selection of raw materials to the precise twisting of the conductors, every step is carefully monitored and controlled. The use of state-of-the-art equipment ensures consistency and accuracy, resulting in products that meet the highest industry standards.
| Description Conductor diameter*Strand number |
2USTC-F 0.04*150 | Test result(mm) | ||
Single wire |
Conductor diameter(mm) | 0.04±0.002 | 0.038 | 0.040 |
| Outer conductor diameter(mm) | 0.044-0.056 | 0.047 | 0.049 | |
| Maximal overall diameter (mm) | 0.83 | 0.60 | 0.66 | |
| Pitch(mm) | 29±5 | √ | √ | |
| Max resistance (Ω/Km at20℃) | Max. 0.1081 | 0.0980 | 0.0981 | |
| Mini breakdown voltage (V ) | 500 | 2500 | 2600 | |
|
Key word:0Silk Covered High Frequency Litz Wire 0.04mm * 145 Enamel Copper Wire |
