0.04-0.3mm Ustc Litz Wire Silk Covered Double Layer High Frequency Enameled Copper Insulated

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: 0.04-0.3mm Silk Covered Double Layer High Frequency Enameled Copper Litz Wire Insulated Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.04mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: 0.04-0.3mm Silk Covered Double Layer High Frequency Enameled Copper Litz Wire Insulated
No. Of Strands: 145
High Light:

copper enameled ustc litz wire

,

0.3mm ustc litz wire

,

0.3mm copper enameled wire


Product Description

0.04-0.3mm Silk Covered Double Layer High Frequency Enameled Copper Litz Wire Insulated

A major advantage of nylon served copper litz wire is its excellent temperature resistance. It is rated to an equivalent temperature of 155 degrees Celsius and can withstand the harsh conditions within the motor assembly without affecting its performance.We also supply 180 degree wire.



Description
Conductor diameter*Strand number
2USTC-F 0.04*150 Test result(mm)

Single wire
Conductor diameter(mm) 0.04±0.002 0.038 0.040
  Outer conductor diameter(mm) 0.044-0.056 0.047 0.049
  Maximal overall diameter (mm) 0.83 0.60 0.66
Pitch(mm) 29±5
Max resistance (Ω/Km at20℃) Max. 0.1081 0.0980 0.0981
Mini breakdown voltage (V ) 500 2500 2600

Key word:0.04-0.3mm Silk Covered Double Layer High Frequency Enameled Copper Litz Wire Insulated

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

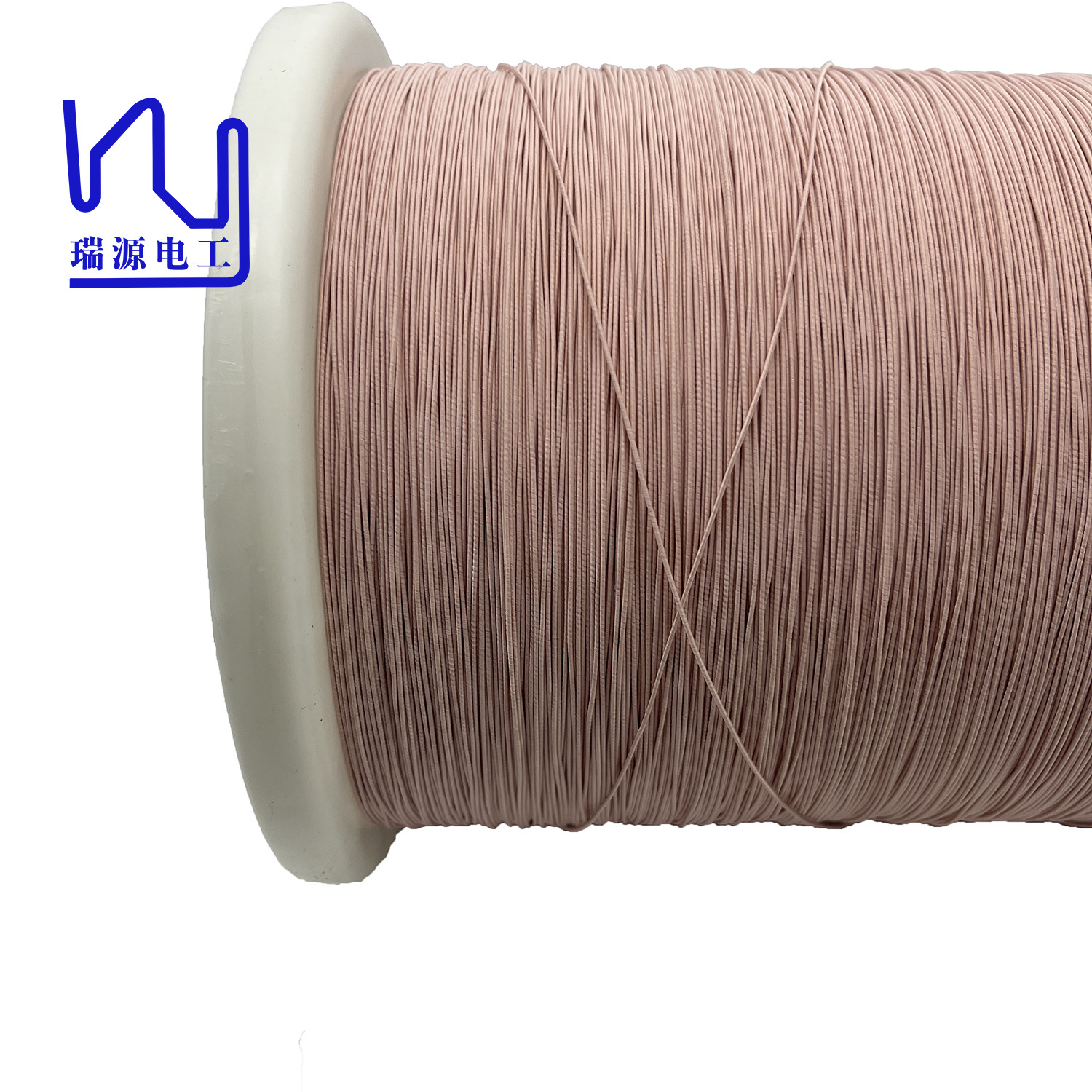

0.04-0.3mm Ustc Litz Wire Silk Covered Double Layer High Frequency Enameled Copper Insulated 0

0.04-0.3mm Ustc Litz Wire Silk Covered Double Layer High Frequency Enameled Copper Insulated 1

0.04-0.3mm Ustc Litz Wire Silk Covered Double Layer High Frequency Enameled Copper Insulated 2

0.04-0.3mm Ustc Litz Wire Silk Covered Double Layer High Frequency Enameled Copper Insulated 3
